3.2

DC Power Supply Module

The CPSMC1810-200 and the CPSMC1850-160 PointSystem™ chassis are
equipped with a DC power supply module (P/N CPSMP-210) installed in the back
of the chassis. The power supply module supplies power to the chassis, installed
media converter slide-in-modules, management modules, and the optional fan
module.

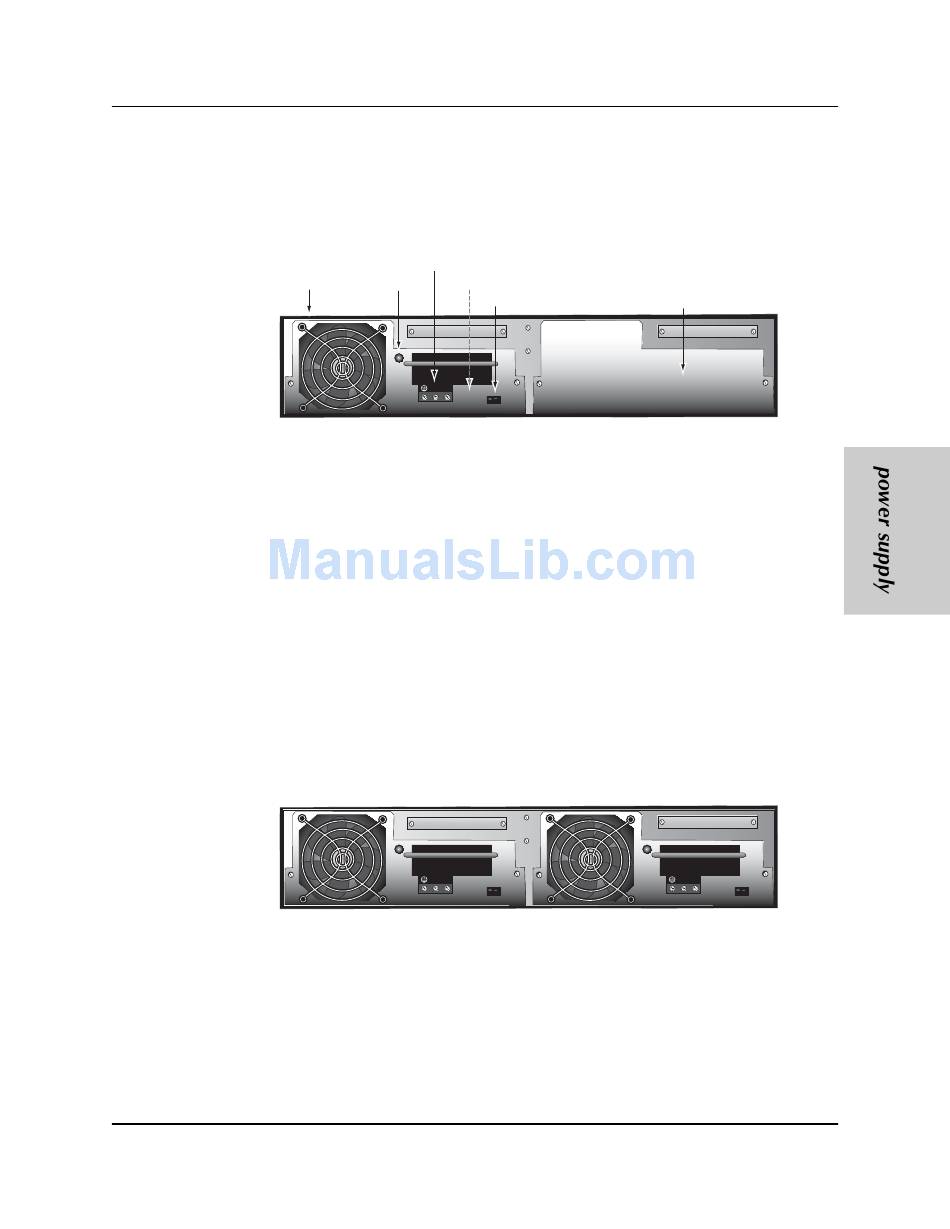

The components of the DC power supply module include:
•
•
•
•
•
Optional Redundant DC Power Supply Module
An extra installation space is available in the back of the chassis for installing an
optional redundant DC power supply module (P/N CPSMP-210).
See section 3.4 Power Supply Module Maintenance for instructions on installation.
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
External Power Connectors
Fan Power LED Fuse (on the circuit board)
- +
A set of three (3) external power connectors that distribute power from an
external 48-VDC outlet to a chassis ground connector, a positive (+) connector,
and a negative (-) connector on the DC power supply module.
An On/Off switch that, when set to "I", allows the DC power supply module to
supply power to the chassis, and any installed modules.
A power LED indicator.
A fan to prevent the power supply module from overheating.
A fuse installed on the power supply module's circuit board.
- +
CPSMC18xx-xxx PointSystem ™ Chassis
Extra Installation
On/Off Switch Space
- +
16
