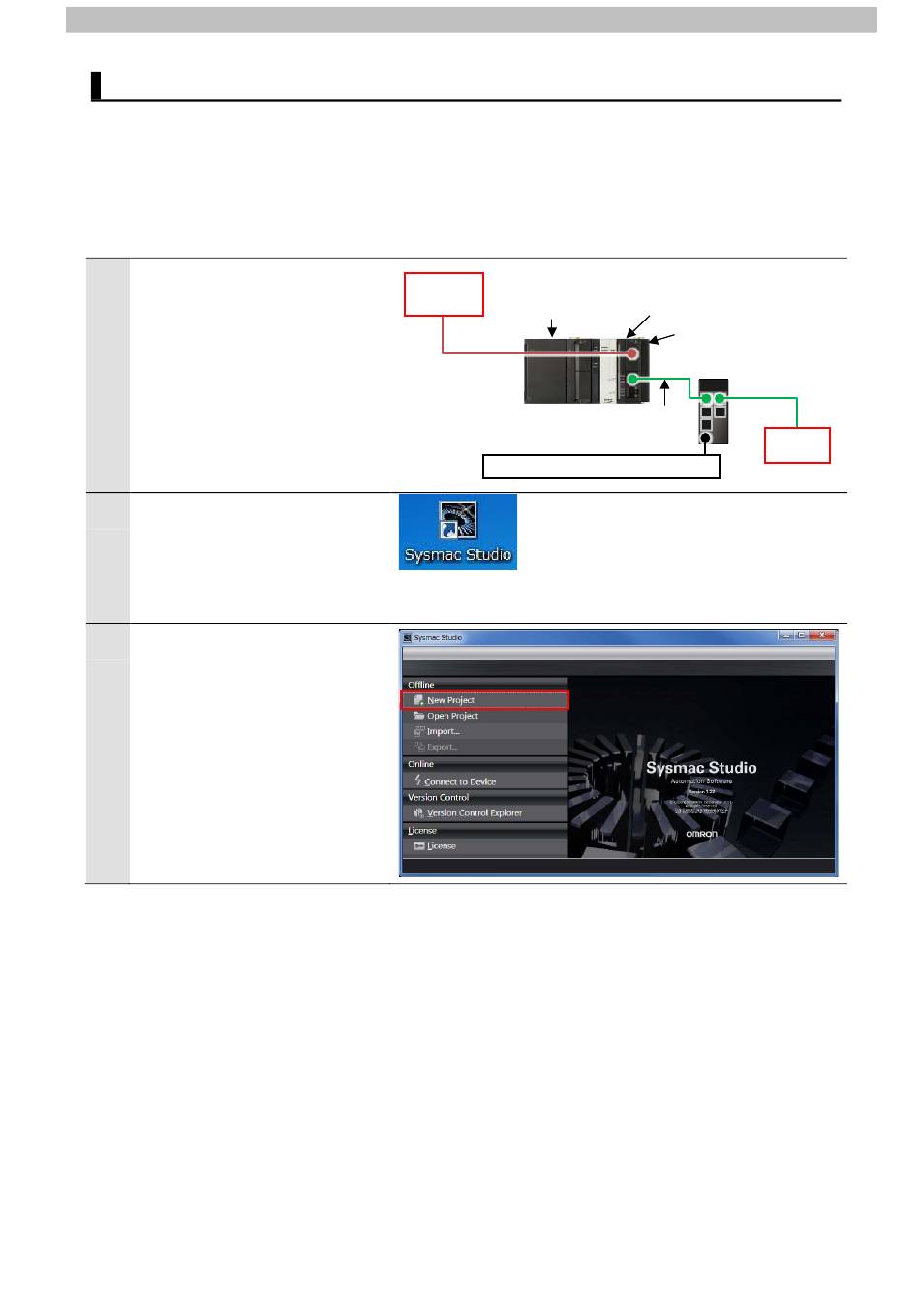

7.3. Controller Setup

Set up the Controller.
7.3.1. IP Address Settings
Start Sysmac Studio and set the IP address of the Controller.
Install Sysmac Studio and the USB driver on your personal computer beforehand.
1
Connect a LAN cable to the
built-in EtherNet/IP port
(PORT1) on Controller, and
connect a USB cable (1) to the
peripheral (USB) port. As shown
in 5.2. Device Configuration,
connect Personal computer and
Switching hub to Controller.
2
Start Sysmac Studio.
*If the User Account Control
Dialog Box is displayed at start,
make a selection to start
Sysmac Studio.
3
Sysmac Studio starts.
Click New Project.
7．EtherNet/IP Connection Procedure
Controller
Personal
computer
Power Supply Unit
USB cable (1)
LAN cable
Switching hub power supply
CPU Unit
End Cover
Switching hub
LAN cable
netTAP
