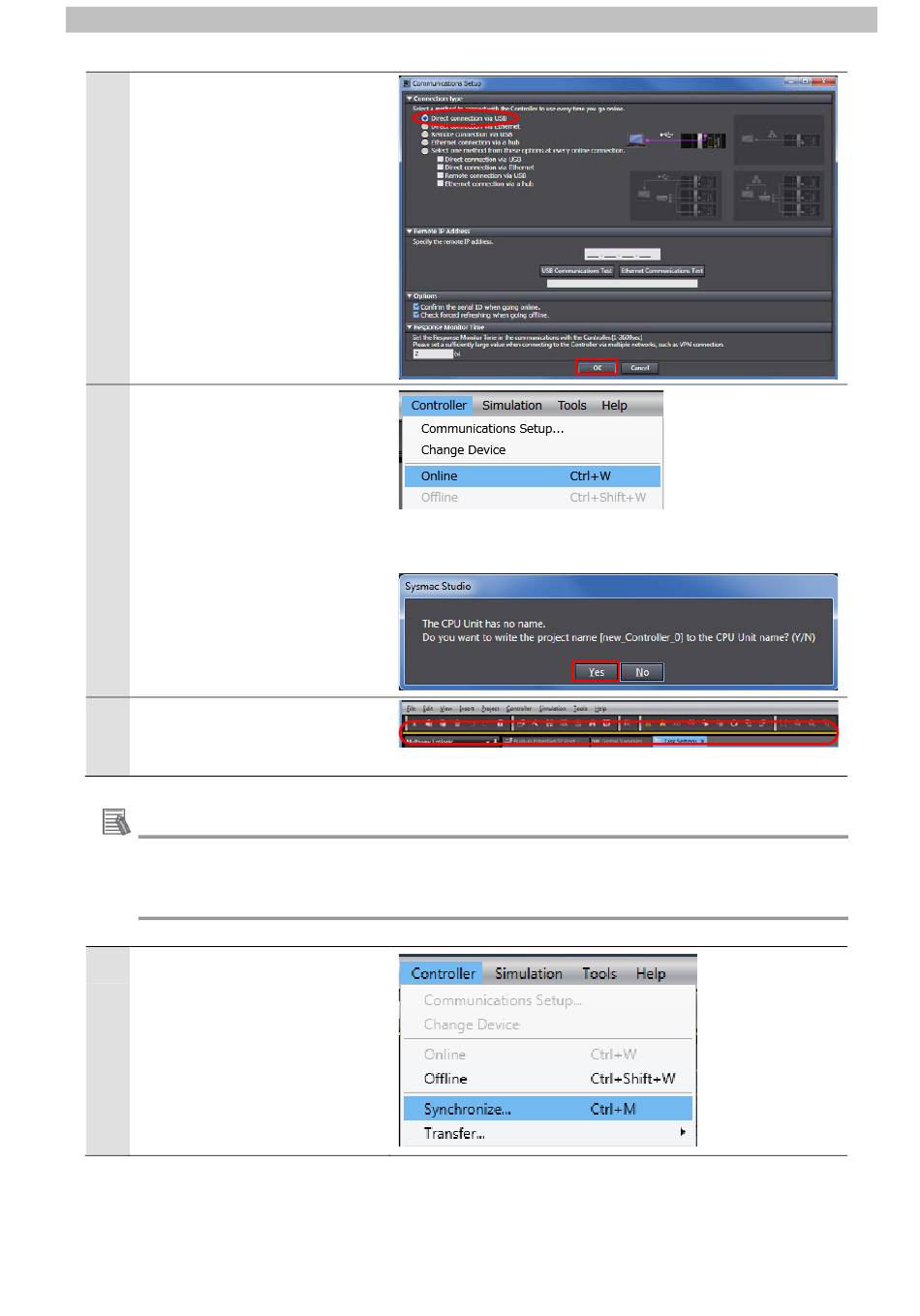

The Communications Setup
Dialog Box is displayed.
Check that the Direct connection
via USB Option is selected in
the Connection type Field.
Click OK.
9
Select Online from the
Controller Menu.
If a confirmation dialog box is
displayed, check the contents
and click Yes.
*The contents of the dialog box
vary depending on the status of
Controller. Check the contents
and click on an appropriate
button to proceed with the
processing.
10
When an online connection is
established, a yellow line is
displayed under the toolbar.
Additional Information
For more information on online connections to the Controller, refer to Section 6. Online
Connections to a Controller of the Sysmac Studio Version 1 Operation Manual (Cat. No.
W504).
11
Select Synchronize from the
Controller Menu.
7．EtherNet/IP Connection Procedure
