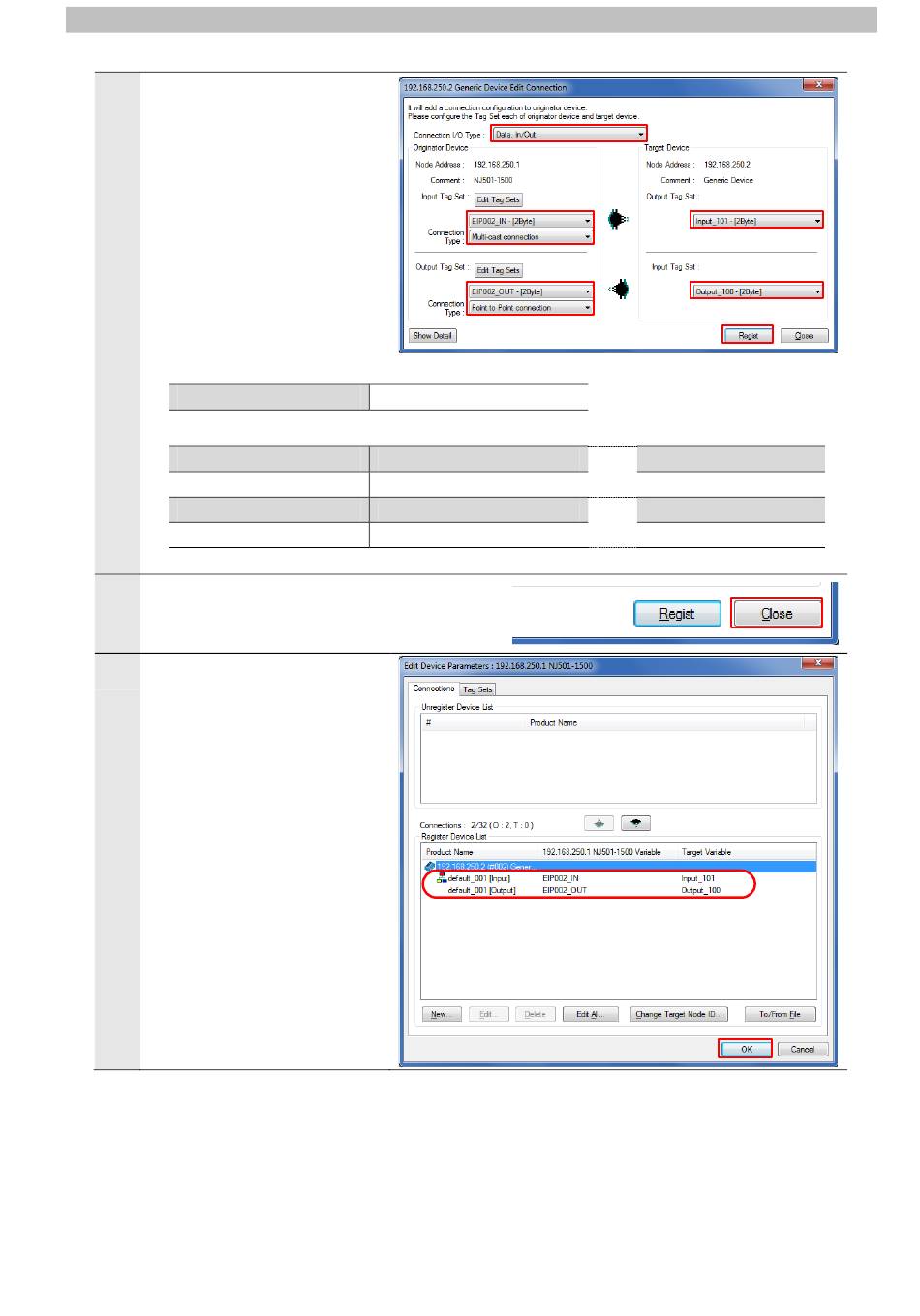

The Edit Connection Dialog
Box is displayed.
Make the settings (listed in the
following table) in the
Connection I/O Type,
Originator Device and Target
Device Fields.
Click Regist.
■Editing settings for connections
Connection I/O Type
Originator Device
Input Tag Set
EIP002_IN-[2Byte]
Output Tag Set
EIP002_OUT-[2Byte]
4
The Edit Connection Dialog
Box is displayed again.
Click Close.
5
The Edit Device Parameters
Dialog Box is displayed.
Check that the connections set
for 192.168.250.2 are
registered.
Click OK.
7．EtherNet/IP Connection Procedure
Data, In/Out
Connection Type
Point to Point connection
Connection Type
Point to Point connection
Target Device
Output Tag Set
<-
Input_101-[2Byte]
Input Tag Set
->
Output_100-[2Byte]
