8

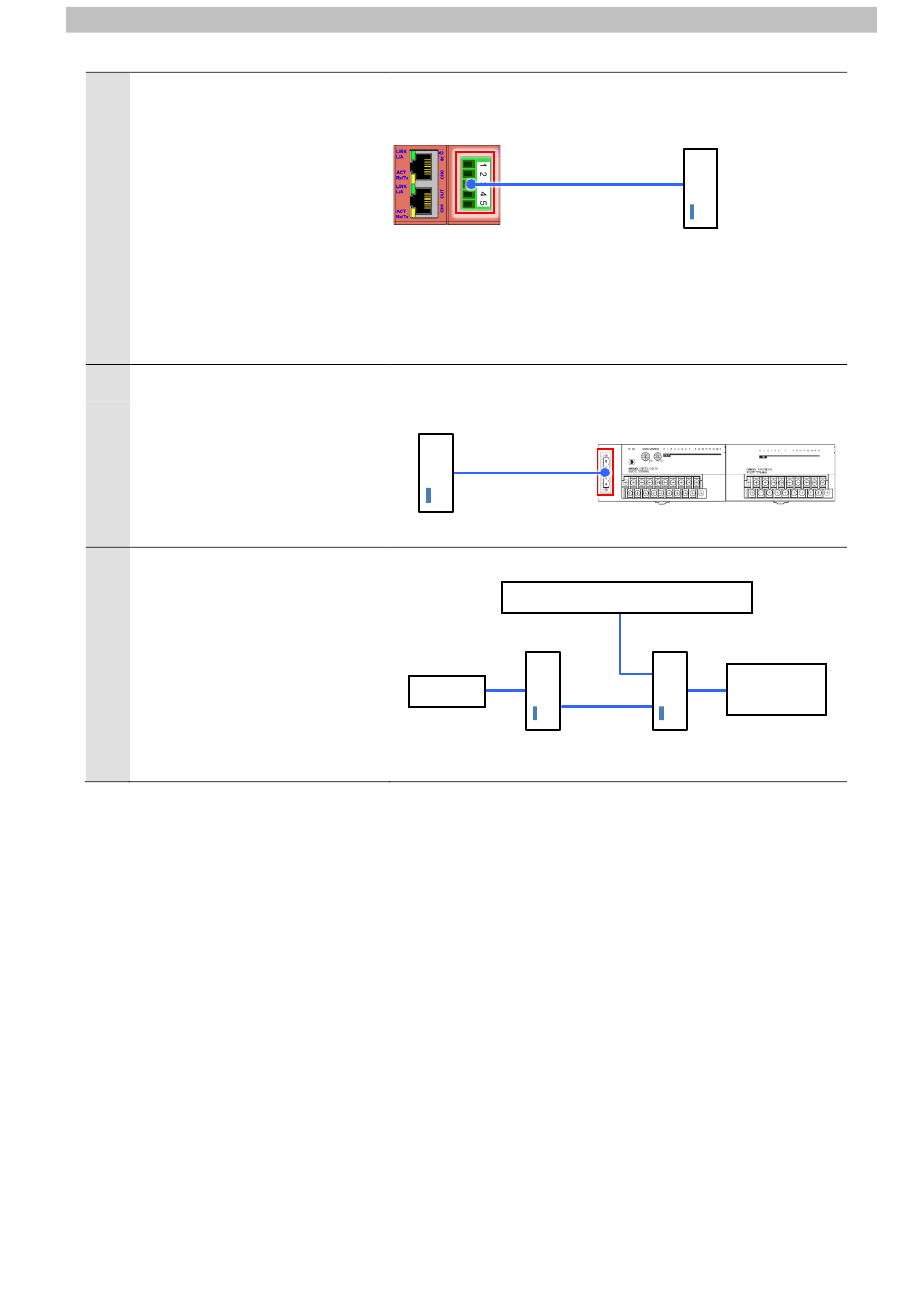

Connect T-branch tap and X3 on
netTAP with a DeviceNet cable.
Check that the termination
resistor is attached to T-branch
tap.
*Refer to the User Manual
netTAP NT 100 Gateway
Devices (DOC081001UM18
EN) for information on
DeviceNet wiring and how to
attach the termination resistor if
not attached to T-branch tap.
9
Connect the other T-branch tap
and Communications connector
on DeviceNet Slave with a
DeviceNet cable.
Check that the termination
resistor is attached to T-branch
tap.
10
Connect T-branch tap
connected to netTAP and the
other T-branch tap connected to
DeviceNet Slave with a
DeviceNet cable.
Connect Communications
power supply for DeviceNet to
T-branch tap connected to
DeviceNet Slave.
7．EtherNet/IP Connection Procedure
netTAP
DeviceNet cable
X3
T-branch tap
(with termination resistor)
DeviceNet
cable
Communications connector
Communications power supply
T-branch tap
netTAP
DeviceNet
T-branch tap
(with a termination resistor)
DeviceNet Slave
T-branch tap
DeviceNet
Slave
cable
