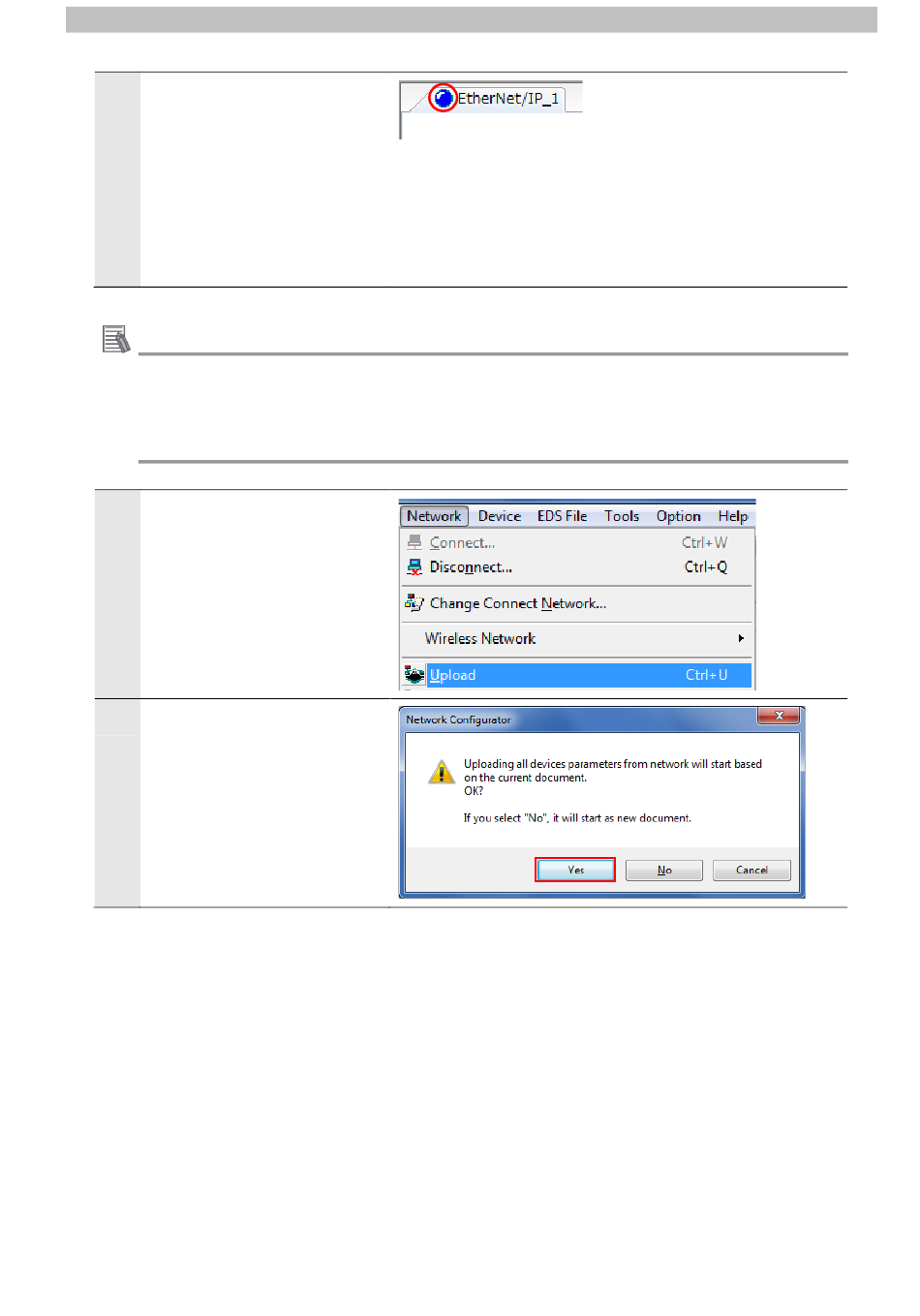

Check that the color of the

network connection icon

changes to blue on the

EtherNet/IP_1 Tab of the

Network Configuration Pane.

*It indicates that Network

Configurator and Controller

are online.

Additional Information

If the online connection to the Controller cannot be established, check the cable connection.

Or, return to step 1, check the settings and repeat each step.

For more details, refer to 7-2-8 Connecting the Network Configurator to the Network of the

NJ/NX-series CPU Unit Built-in EtherNet/IP

Select Upload from the

Network Menu to upload the

device parameters from the

network.

The dialog box on the right is

displayed. Confirm that there is

no problem, and click Yes.

7．EtherNet/IP Connection Procedure

Port User's Manual (Cat. No. W506).
