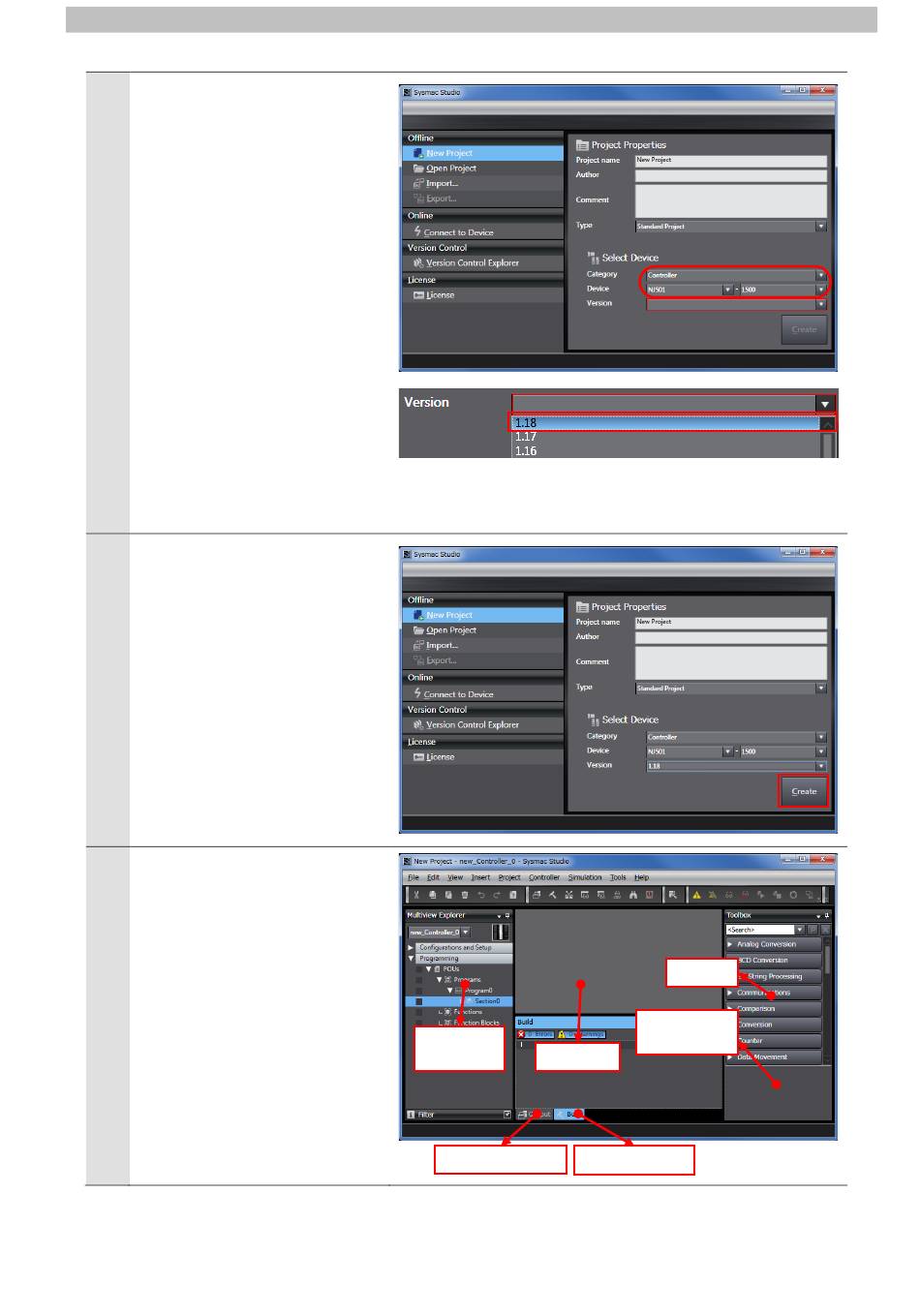

The Project Properties Dialog
Box is displayed.
*In this guide, "New Project" is
used as the project name.
Check that the device used is
shown in the Category and
Device Fields of Select Device.
Select an applicable version
from the pull-down list of
Version.
*Although 1.18 is selected as an
example in this guide, select
the version you actually use.
5
Click Create.
6
The New Project is displayed.
The following panes are
displayed in the window.
Left: Multiview Explorer
Top right: Toolbox
Bottom right: Controller Status Pane
Top middle: Edit Pane
The following tabs are displayed
in the bottom middle of the
window.
Output Tab Page
Build Tab Page
7．EtherNet/IP Connection Procedure
Multiview
Explorer Edit Pane
Output Tab Page Build Tab Page
Toolbox
Controller
Status Pane
