7.4. Network Settings

Set EtherNet/IP tag data links.
7.4.1. Starting Network Configurator and Installing the EDS File
Start Network Configurator and install the EDS file.

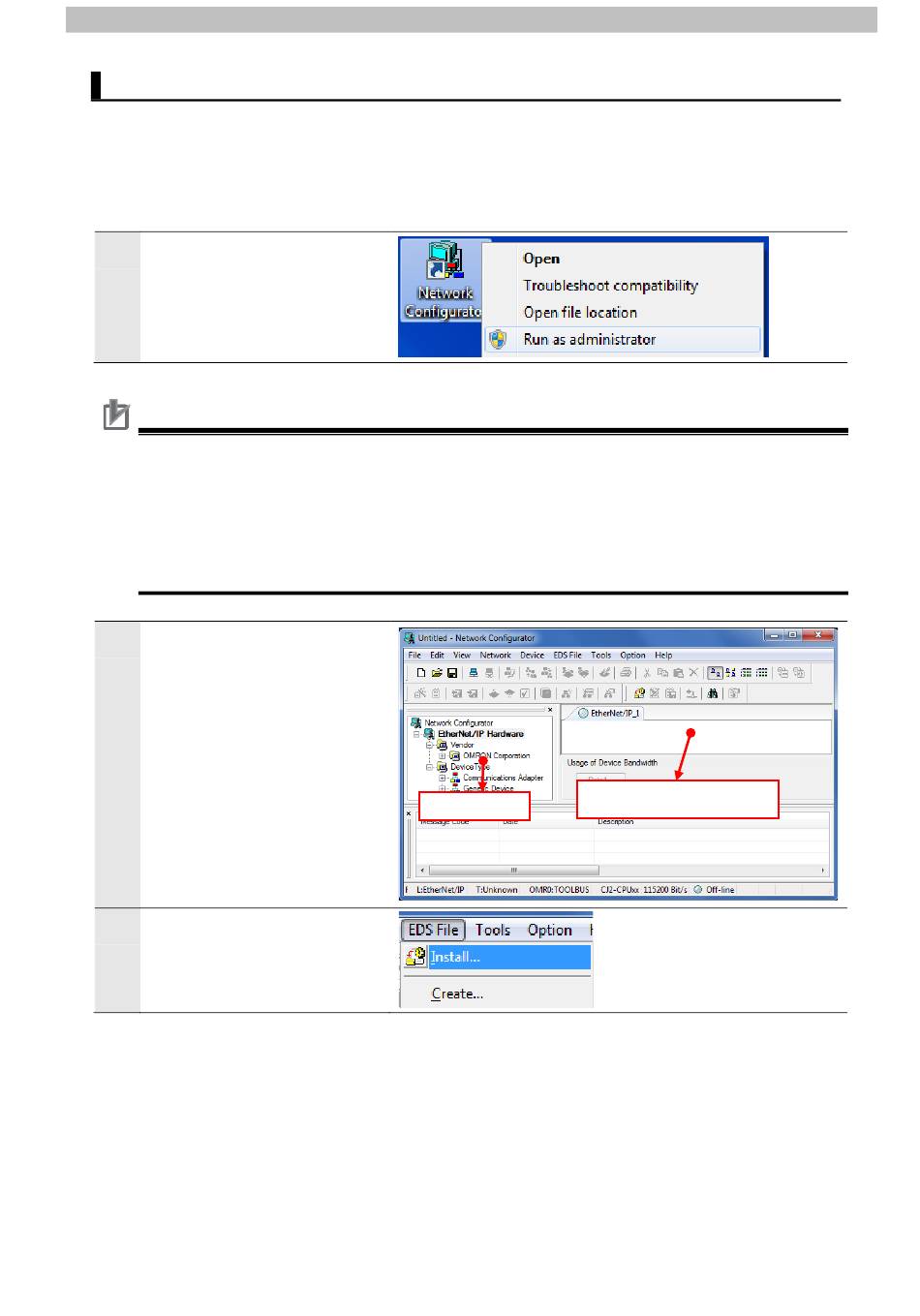

1
Right-click the Network
Configurator shortcut icon and
select Run as administrator
from the menu.
Precautions for Correct Use
To manipulate the EDS file, you must select "Run as administrator" as described in step 1
above to start Network Configurator.
Otherwise, if you login with other user accounts, the following operations listed in the EDS
File Menu cannot be applied due to user management for Windows security functions.
●EDS File Menu:
Install, Create, Delete and Creating EDS Index Files
2
Network Configurator starts.
The following panes are
displayed in the window.
Left: Hardware List
Right: Network Configuration
Pane
3
Select Install from the EDS
File Menu.
7．EtherNet/IP Connection Procedure
Network Configuration Pane
Hardware List
