13

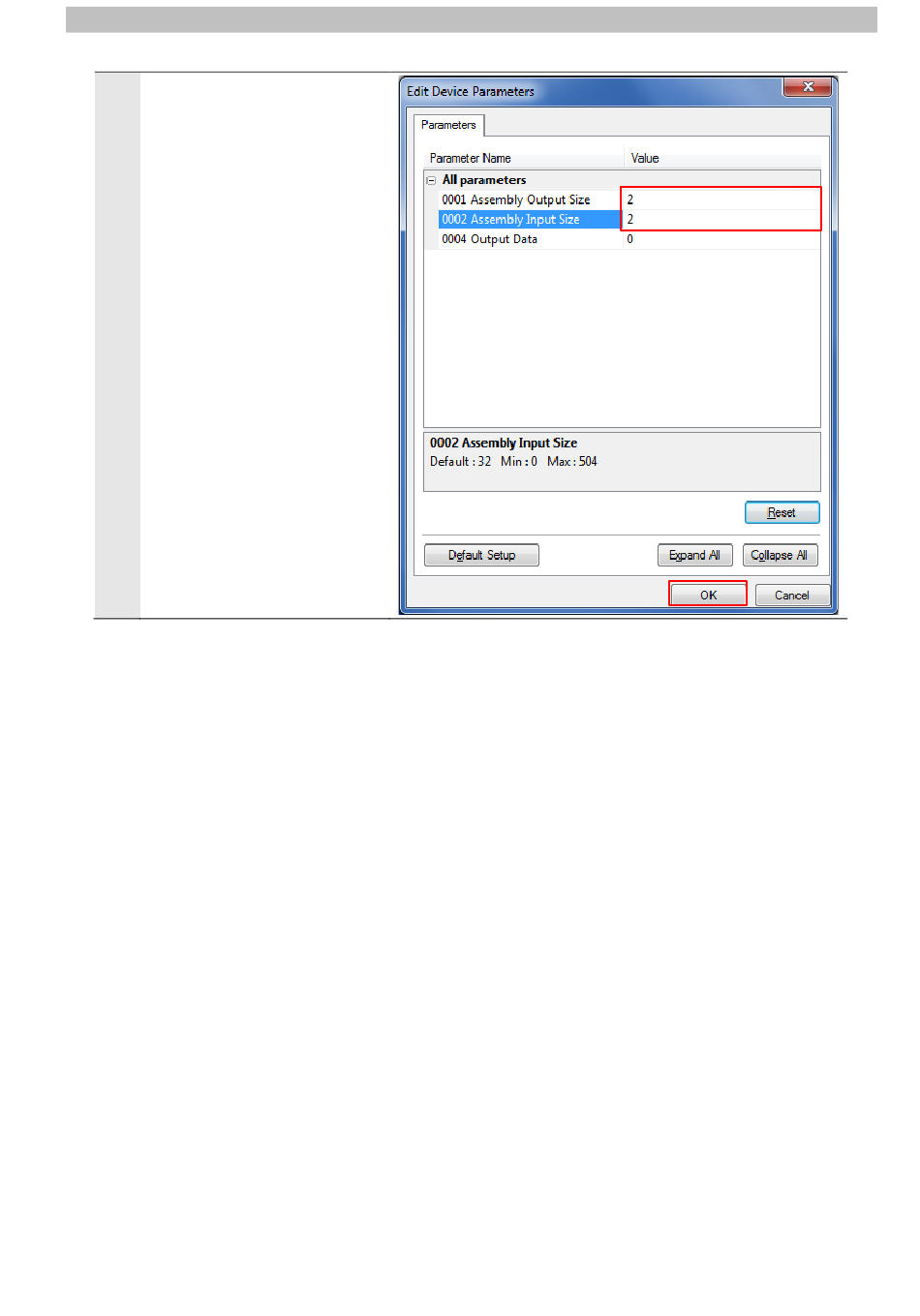

The Edit Device Parameters
Dialog Box is displayed.
Enter the following values and
click OK.
0001 Assembly Output Size: 2
0002 Assembly Input Size: 2
*The device parameters set in
this dialog box will be
included in the connection
information set in 7.4.4.
Connection Settings and will
be transferred to Controller in
7.4.5. Transferring the Tag
Data Link Parameters.
The device parameters set
here do not need to be
downloaded to netTAP.
7．EtherNet/IP Connection Procedure
46
