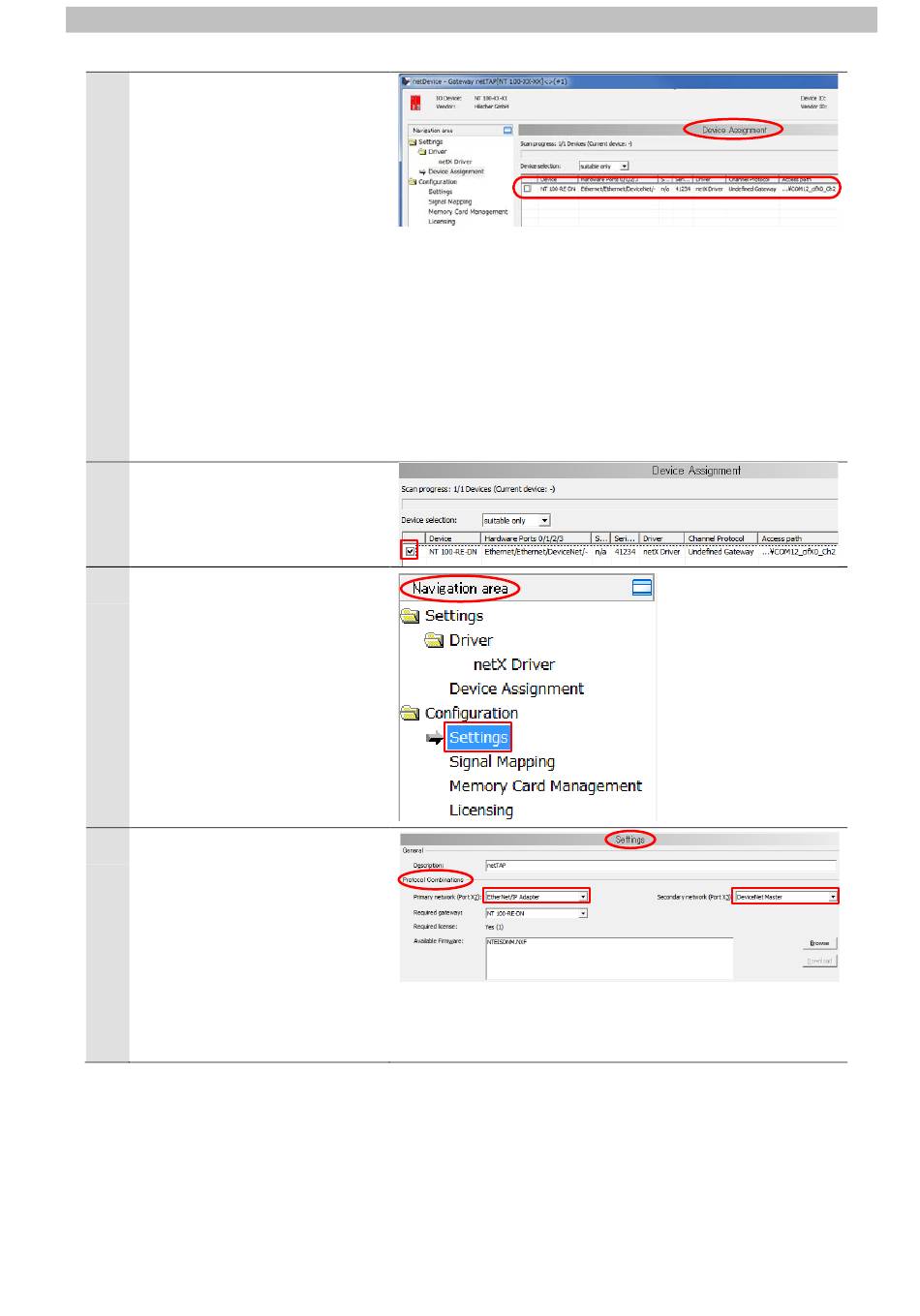

The Gateway Configuration
Window is displayed.
The search of the USB driver to
connect Personal computer and
netTAP automatically starts.
The search results are displayed
in the Device Assignment Pane
on the right side of the window.
*If no search results are found,
the USB driver for connection
to netTAP may not have been
correctly installed on Personal
computer. Install the USB
driver in the correct way, and
repeat from step 1 of this
procedure.
14
Select netX Driver found in the
search results (select the check
box) as a method for connecting
Personal computer and netTAP.
15
In the Navigation area, click
Configuration – Settings.
16
The Settings Pane is displayed
on the right side of the window.
Set the following parameters in
the Protocol Combinations Field.
- Primary network (Port X2):
EtherNet/IP Adapter
- Secondary network (Port X3):
DeviceNet Master
