7.4.5.

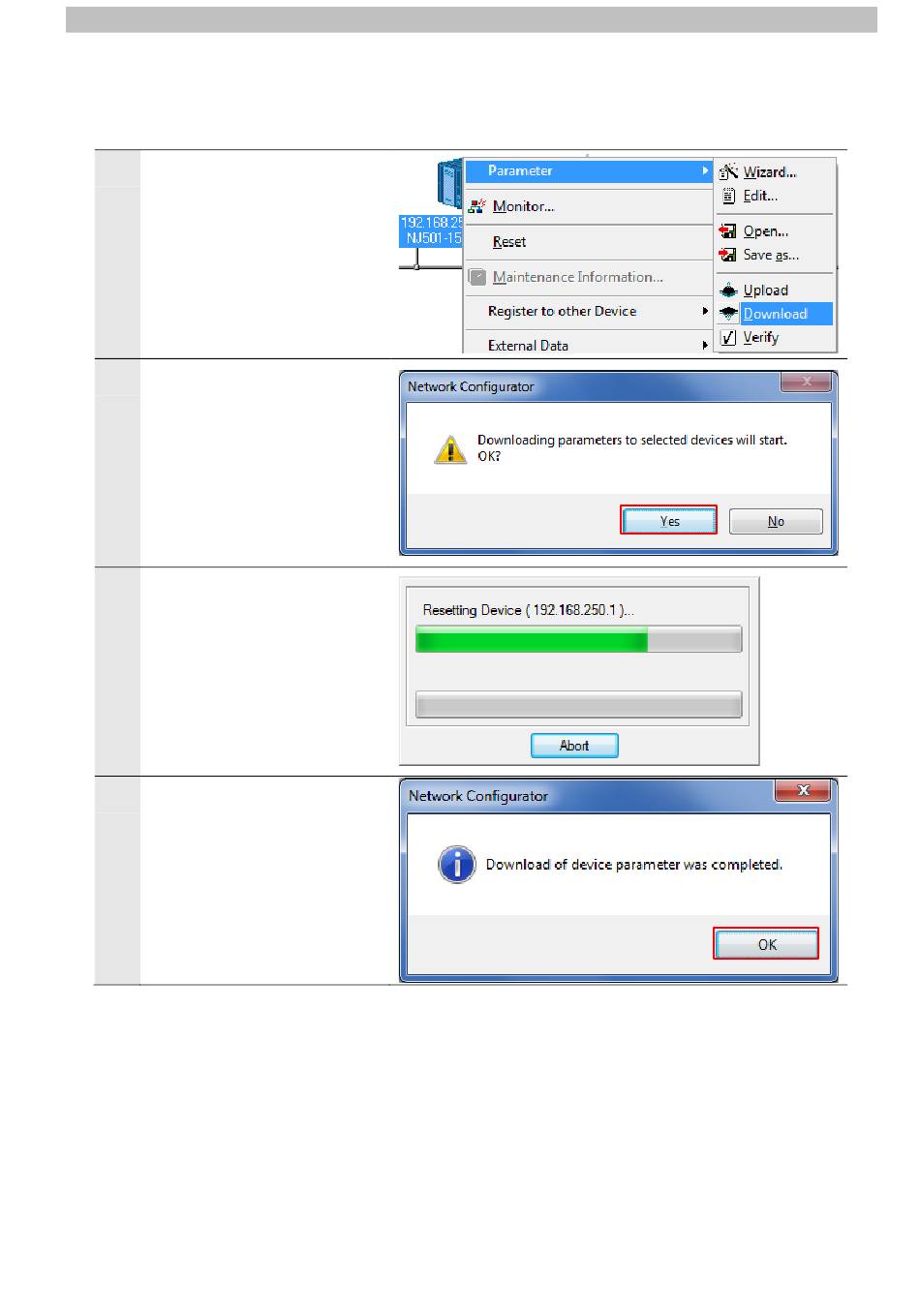

Transferring the Tag Data Link Parameters
Transfer the tag data link parameters to the Controller.
1
Right-click Controller (Node 1)
in the Network Configuration
Pane and select Parameter –
Download from the menu.
2
The dialog box on the right is
displayed. Confirm that there is
no problem, and click Yes.
3
The tag data link parameters
are downloaded from Network
Configurator to Controller.
4
The dialog box on the right is
displayed. Check the contents
and click OK.
7．EtherNet/IP Connection Procedure
57
