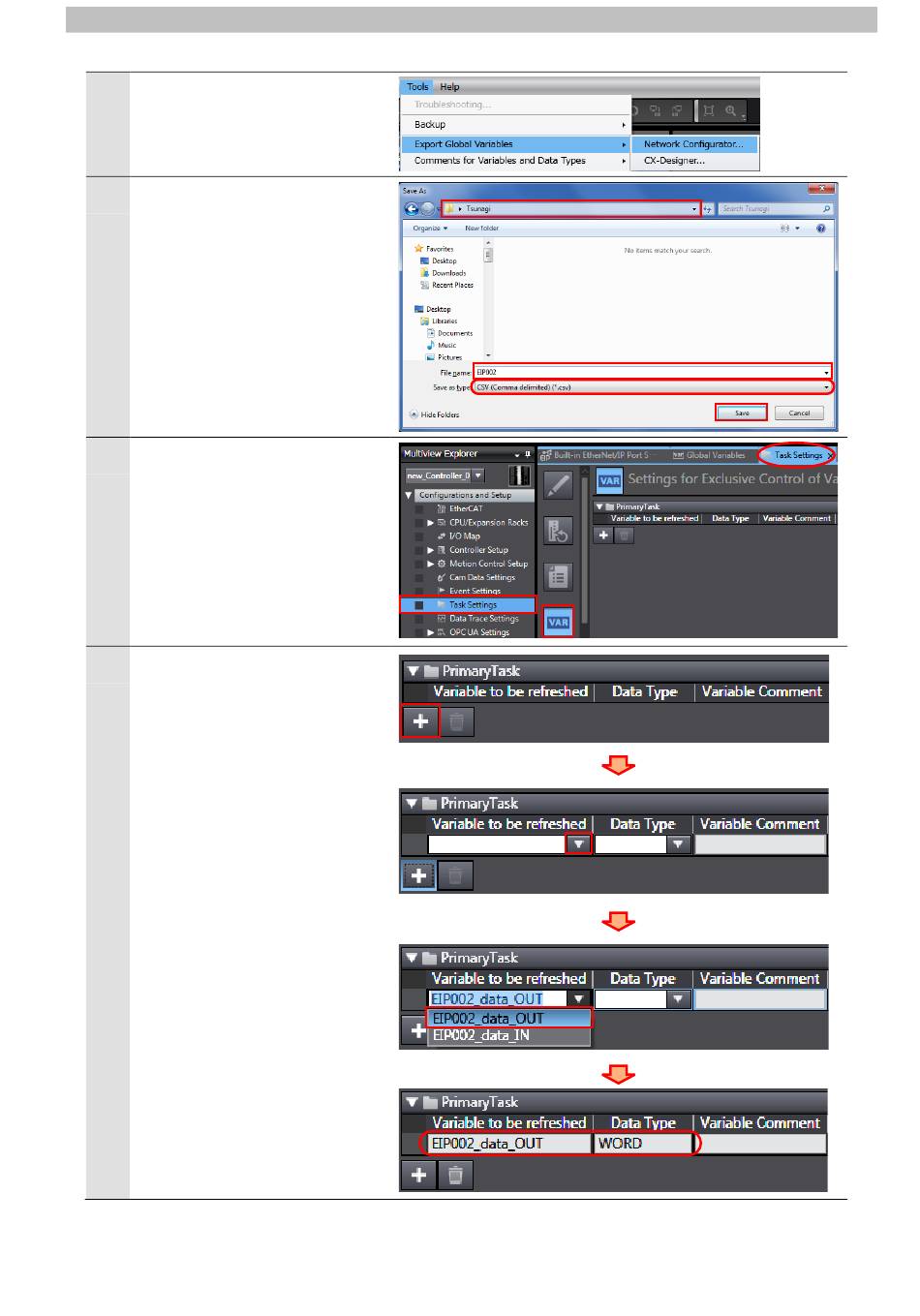

Select Export Global Variables
– Network Configurator from
the Tools Menu.
6
The Save As Dialog Box is
displayed. Select a location to
save the file, and enter a file
name. ("EIP002" is used in this
guide.)
Check that the file type is CSV
(Comma delimited) (*.csv).
Click Save.
7
Double-click Task Settings
under Configurations and
Setup in the Multiview Explorer.
The Task Settings Tab Page is
displayed in the Edit Pane.
Click VAR.
8
Click the + Button.
A row for new entry is added.
Click the Down Arrow Button in
the entry cell of the Variable to
be refreshed Column (left side of
the figure).
The variables set in the previous
steps are listed.
Select EIP002_data_OUT.
EIP002_data_OUT is added.
*Since the data types are
displayed automatically, you do
not need to set them.
