7.2.4.
DeviceNet Communications Settings
Set parameters for DeviceNet Communications.

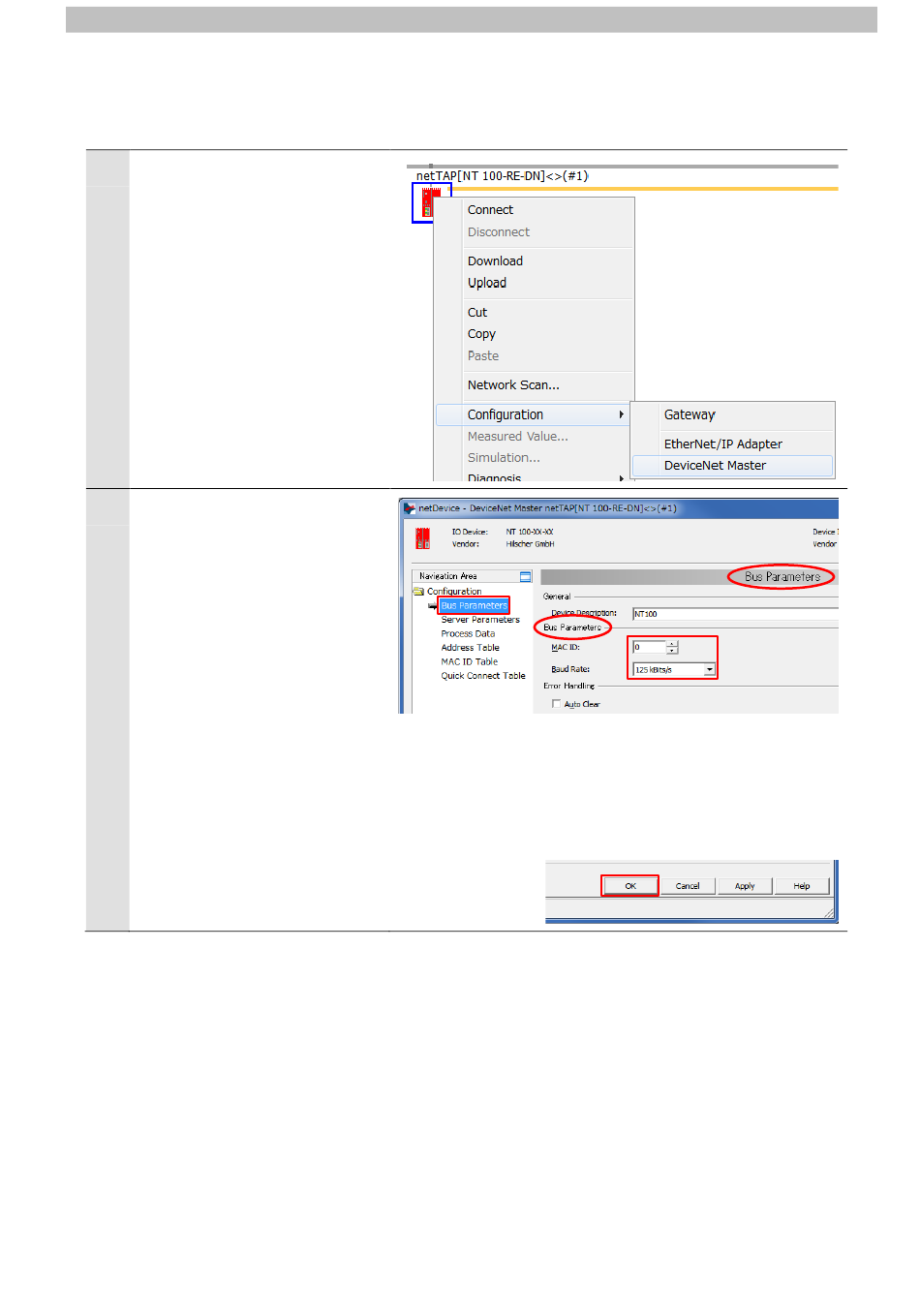

1
Right-click netTAP[NT
100-RE-DN] and select
Configuration – DeviceNet
Master from the menu.
2
The DeviceNet Master
Configuration Window is
displayed.
In the Navigation area, click
Configuration – Bus
Parameters.
The Bus Parameters Pane is
displayed on the right side of the
window. Set the following
parameters in the Bus
Parameters Field.
- MAC ID: 0
- Baud Rate: 125 kBits/s
After setting, click OK.
7．EtherNet/IP Connection Procedure
25
