8

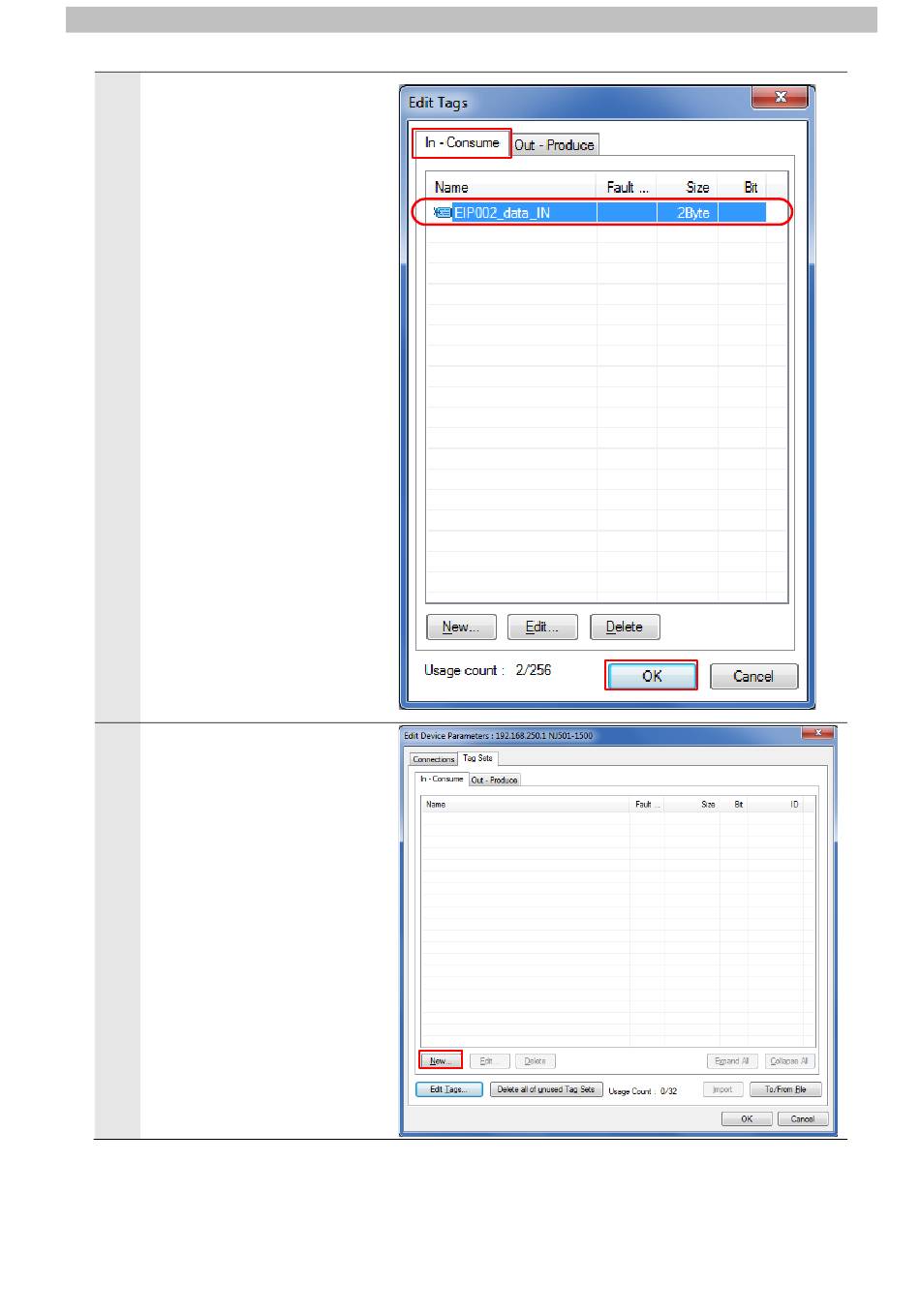

The Edit Tags Dialog Box is
displayed.
Click the In - Consume Tab.
Check that the tab page shows
the variable name that is
described in 6.3. Tag Sets and
Connection Settings and has
been set in 7.3.2. Global
Variable Settings.
Click OK.
9
The Edit Device Parameters
Dialog Box is displayed again.
Click New.
7．EtherNet/IP Connection Procedure
49
