Micromeritics AccuPyc 1330 Operator's Manual page 19

AccuPyc 1330
AccuPyc 1330
Pycnometer
RS-232
7.
8.
9.
10. Connect one end of the printer cable to the connector labeled with the
Refer to Appendix E: Printer Character Set for the print characters sup-
ported by the software.
September 1996
Software Card
Printer
Connector
Vent
To Power
Source

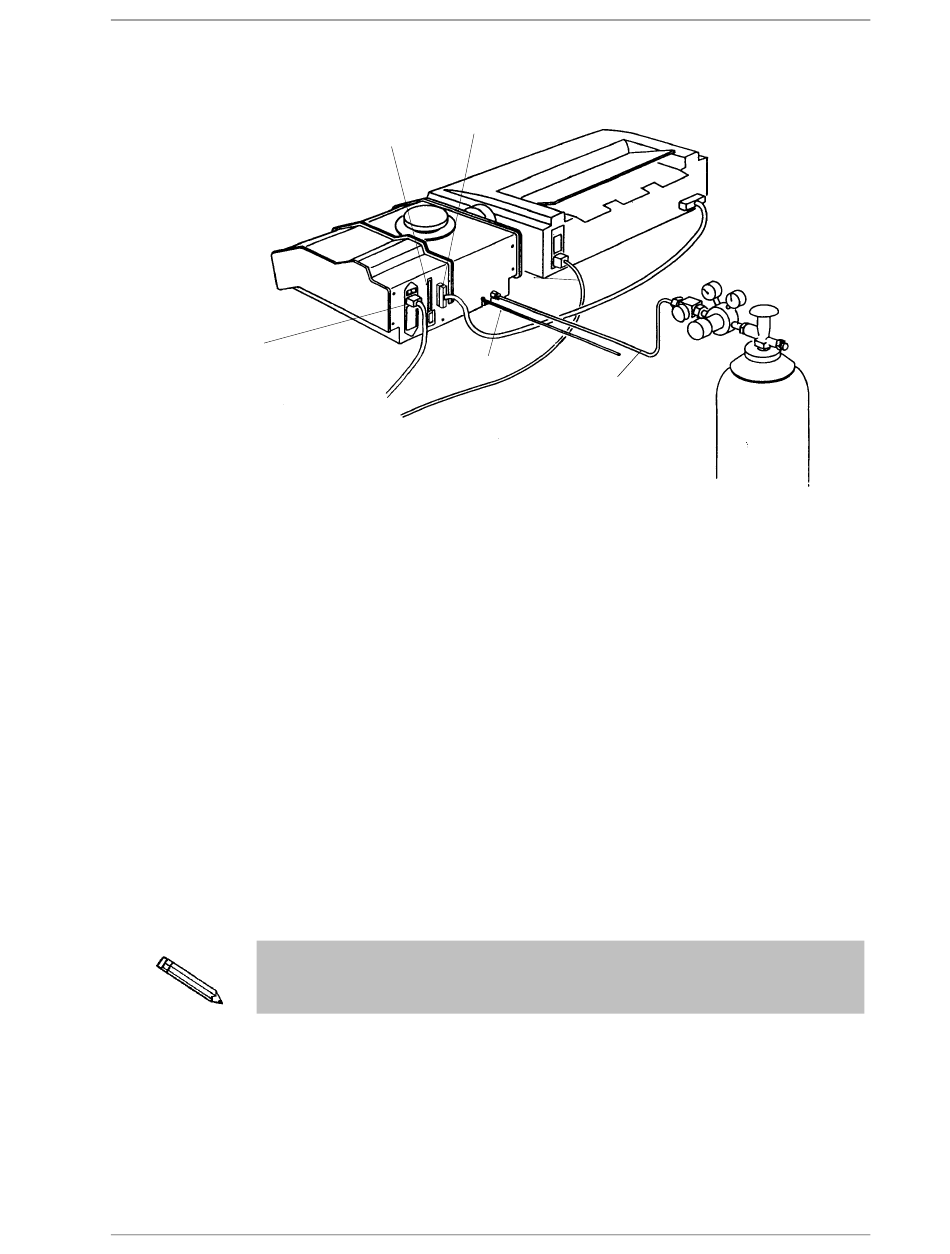

Figure 2-8. Rear Panel Connections
Turn the nut on the tubing clockwise until it is finger-tight. Then use a
7/16-in. open-ended wrench (or an adjustable wrench) to tighten the nut
an additional 1/4 turn.
A port labeled VENT is provided on the rear panel. If you are using a
gas other than helium and wish to vent the system, use this port. Con-
nect one end of 1/8-in. ID flexible tubing to the rigid tubing labeled
VENT and the other end to a venting system.
If a serial line is to be used for data transmission, connect one end of
the RS-232 cable to the connector labeled RS-232 on the back of the
pycnometer. Connect the other end to the output device.
printer icon on the back of the pycnometer. Connect the other end to the
input connector on the printer.
Printer
Inlet
Flexible Tubing
(optional)
Gas Cylinder
Equipment Setup
2-5
