b. Press and hold the Port #6 button (see Figure 3–5, 2).
c. While continuing to hold the Port #6 button, press and release the Reset
button until the port LEDs stop
d. Release the Port #6 button to initiate the configuration restore.
The controller will load the saved configuration from disk and restart.

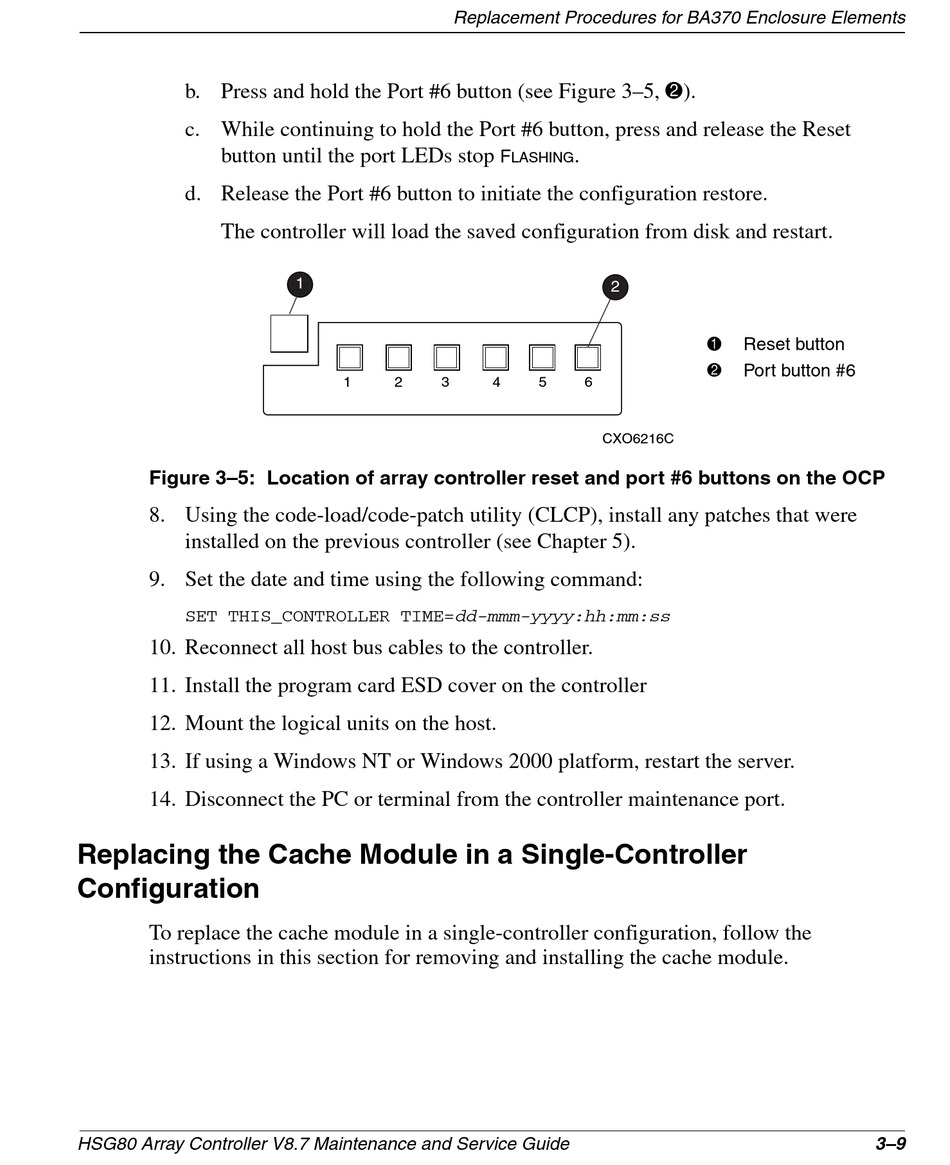

Figure 3–5: Location of array controller reset and port #6 buttons on the OCP
8. Using the code-load/code-patch utility (CLCP), install any patches that were
installed on the previous controller (see Chapter 5).
9. Set the date and time using the following command:
SET THIS_CONTROLLER TIME=dd-mmm-yyyy:hh:mm:ss
10. Reconnect all host bus cables to the controller.
11. Install the program card ESD cover on the controller
12. Mount the logical units on the host.
13. If using a Windows NT or Windows 2000 platform, restart the server.
14. Disconnect the PC or terminal from the controller maintenance port.
Replacing the Cache Module in a Single-Controller
Configuration
To replace the cache module in a single-controller configuration, follow the
instructions in this section for removing and installing the cache module.
HSG80 Array Controller V8.7 Maintenance and Service Guide
Replacement Procedures for BA370 Enclosure Elements
1
1 2 3
.
F
LASHING
2
4 5 6
CXO6216C
1 Reset button
2 Port button #6
3–9
