BA370 Enclosure PVA Module Connector and Switches
Figure 1–10 and Table 1–10 identify power verification and addressing (PVA) module
connector and switches for a BA370 enclosure.
NOTE: Refer to the BA370 enclosure user guide for detailed information.

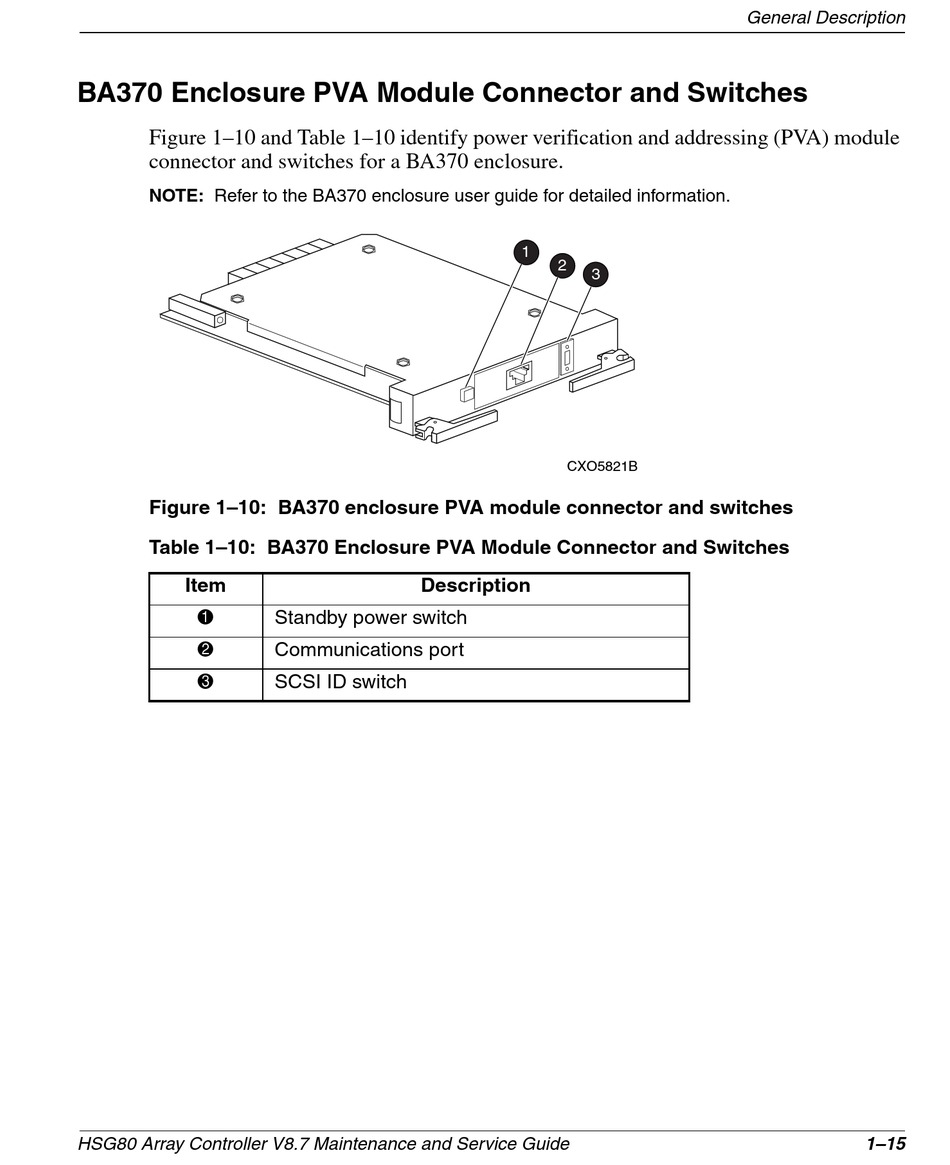

Figure 1–10: BA370 enclosure PVA module connector and switches
Table 1–10: BA370 Enclosure PVA Module Connector and Switches
Item
1
2
3
HSG80 Array Controller V8.7 Maintenance and Service Guide
Description
Standby power switch
Communications port
SCSI ID switch
1
2
3
CXO5821B
General Description
1–15
