Common Replacement Information and Procedures
NOTE: A maintenance port cable (see Figure 2–1) is provided for connecting to a PC. This
cable has a 9-pin connector molded onto one end, to which three optional adapters can be
attached for making a maintenance terminal connection.
Use the following steps to establish a local connection for setting the initial controller
configuration:
1. Turn off the PC or terminal, and connect the maintenance port cable to the
controller, as shown in Figure 2–1.
a. For a PC connection, plug one end of the maintenance port cable into the
communication port of the PC; plug the other end into the controller
maintenance port.
b. For a terminal connection, refer to Figure 2–1 for cabling information.
Adapter part numbers are provided in Chapter 1, in section "Subsystem
Components—Exploded Views" under the specific subsystem type.

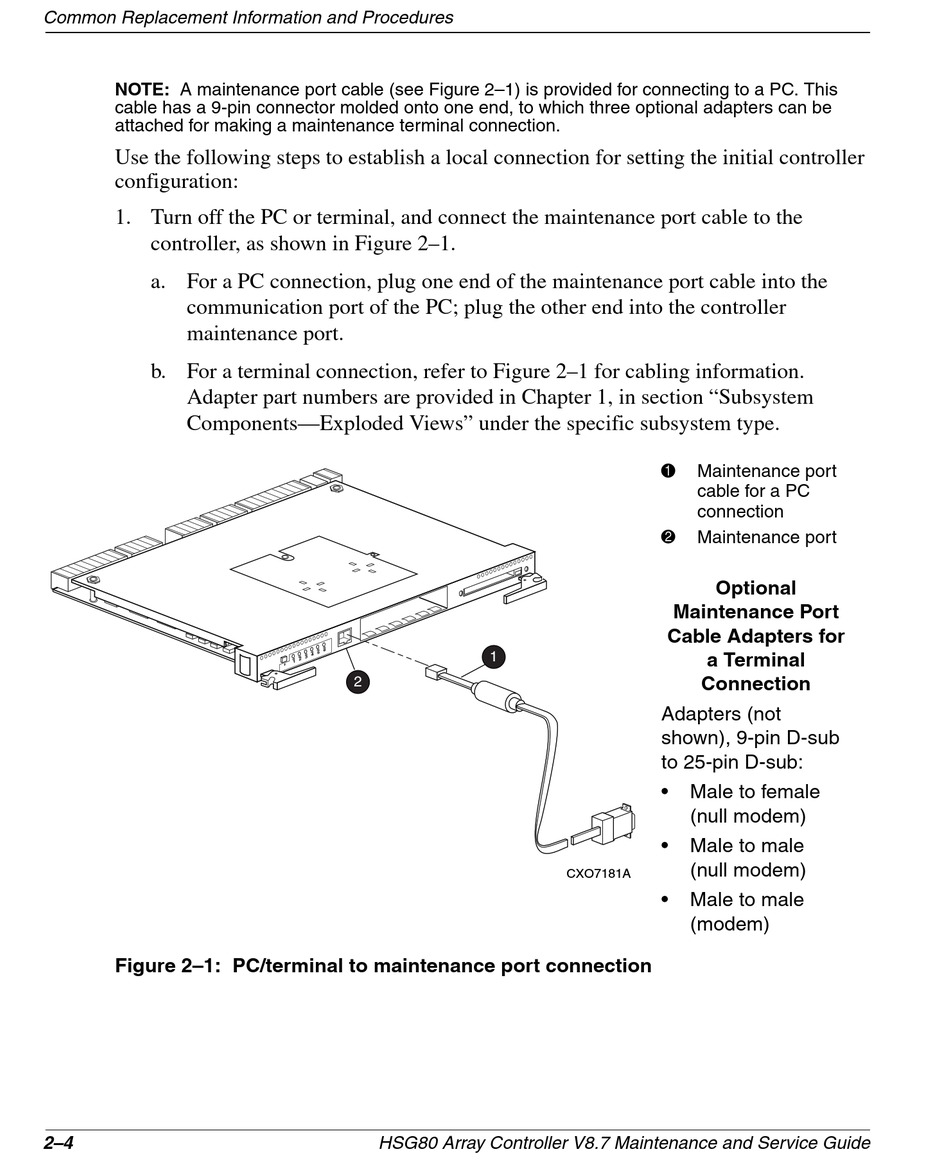

Figure 2–1: PC/terminal to maintenance port connection
2–4
6
5
4
3
2
1
2
HSG80 Array Controller V8.7 Maintenance and Service Guide
1
2
Cable Adapters for
1
Adapters (not
shown), 9-pin D-sub
to 25-pin D-sub:
•
•
CXO7181A
•
Maintenance port
cable for a PC
connection
Maintenance port
Optional
Maintenance Port
a Terminal
Connection
Male to female
(null modem)
Male to male
(null modem)
Male to male
(modem)
