Installing The Cache Module - HP StorageWorks HSG80 Array Controller V8.7 Maintenance And Service Manual

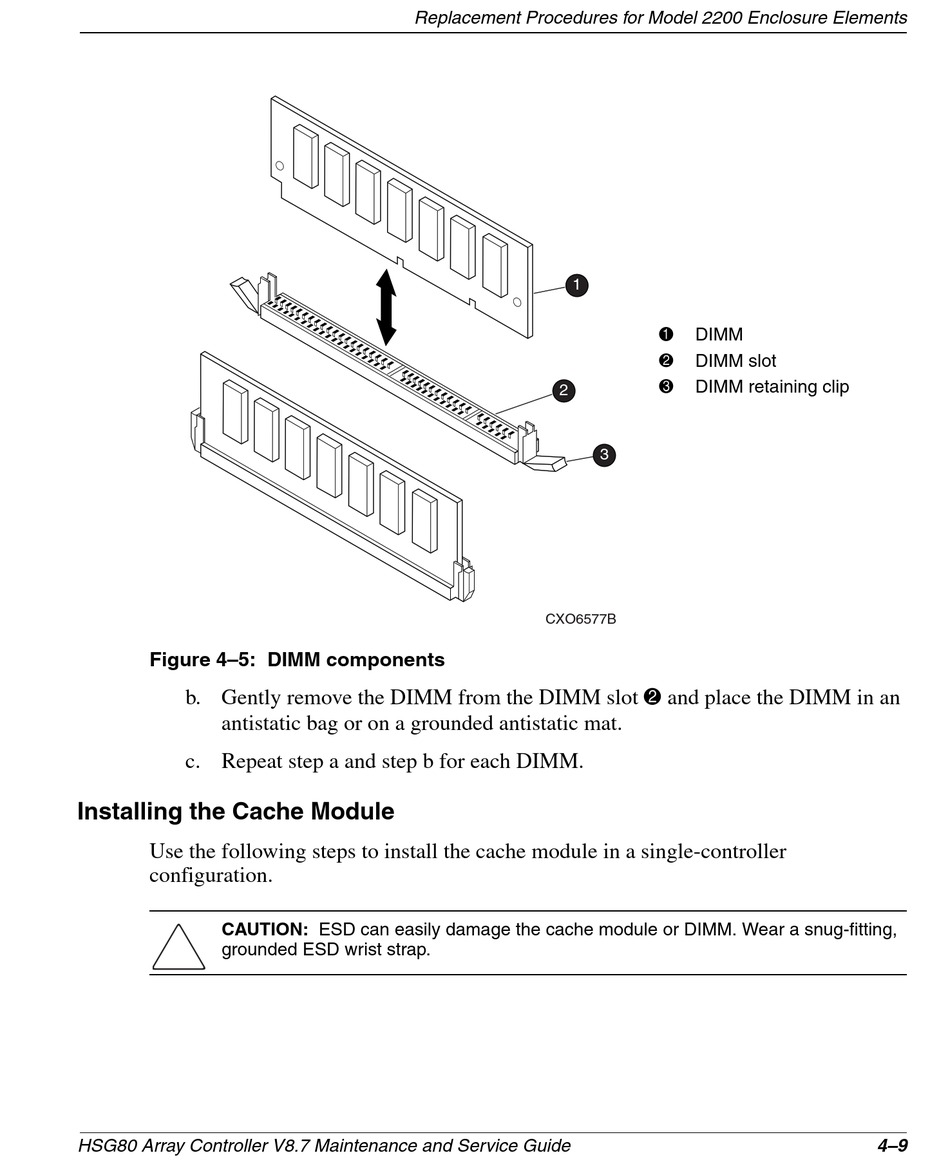

Figure 4–5: DIMM components
b. Gently remove the DIMM from the DIMM slot 2 and place the DIMM in an
antistatic bag or on a grounded antistatic mat.
c. Repeat step a and step b for each DIMM.

Installing the Cache Module

Use the following steps to install the cache module in a single-controller
configuration.
CAUTION: ESD can easily damage the cache module or DIMM. Wear a snug-fitting,
grounded ESD wrist strap.
HSG80 Array Controller V8.7 Maintenance and Service Guide
Replacement Procedures for Model 2200 Enclosure Elements
1
2
1
DIMM
2
DIMM slot
3
DIMM retaining clip
3
4–9
