HP P2000 Release Note

1gbe iscsi msa and 10gbe iscsi msa controller.
Hide thumbs


HP P2000 G3 1GbE iSCSI MSA and 10GbE
iSCSI MSA Controller Firmware TS230R044
Release Notes
HP Part Number: 659521-001
Published: June 201 1
Edition: First


   Also See for HP P2000

   Related Manuals for HP P2000

   Summary of Contents for HP P2000

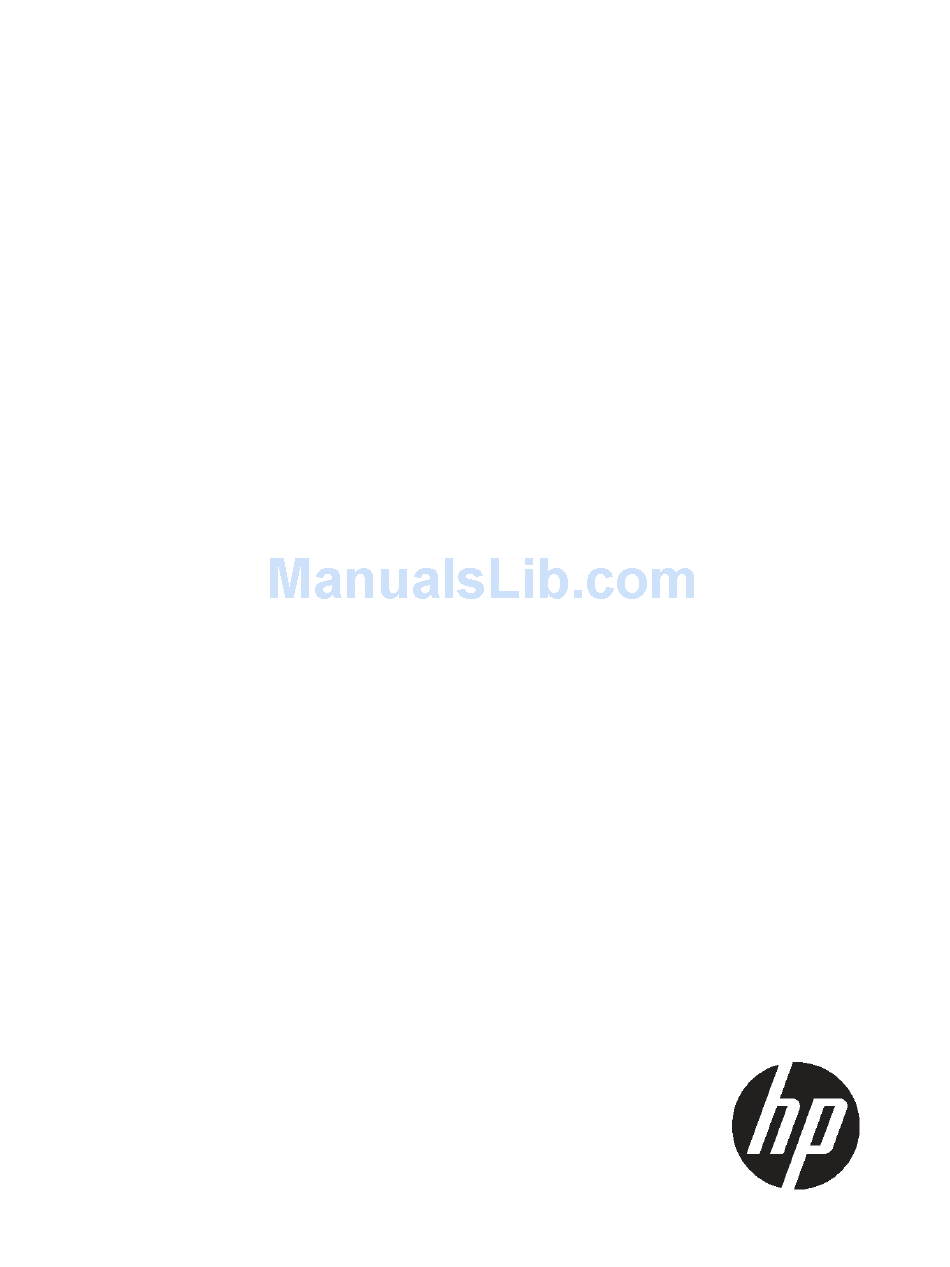

  • Page 1

    HP P2000 G3 1GbE iSCSI MSA and 10GbE iSCSI MSA Controller Firmware TS230R044 Release Notes HP Part Number: 659521-001 Published: June 201 1 Edition: First...

  • Page 2

    © Copyright 201 1 Hewlett-Packard Development Company, L.P.

  • Page 3: Product Models

    HP P2000 G3 MSA System controllers: HP P2000 G3 10GbE iSCSI MSA Array System Controller (P2000 G3 10GbE iSCSI MSA Controller) HP P2000 G3 1GbE iSCSI MSA Array System Controller (P2000 G3 1GbE iSCSI MSA Controller) Additional devices HP Drive Enclosures: HP P2000 LFF Drive Enclosure, firmware S1 10B23 HP MSA2000 3.5-inch LFF Drive Enclosure, firmware O320B07...

  • Page 4

    CIM_ObjectManager and CIM_Namespace class instances will now return only the properties requested. HP P2000 G3 iSCSI MSA Systems will no longer provide FCTargetPorts registered profile instances. Added hostname and namespace details to the value of AlertingManagedElement property of CIM_AlertIndication instances.

  • Page 5

    Online help also includes directions how to obtain the HP P2000 G3 MSA Best Practices – Technical White Paper, available on the HP P2000 G3 MSA website at To locate the paper, in the gray selection box, under “Product Information”, click Resource library and scroll through the display.

  • Page 6

    If a partner controller is restarted during replication, settings in the Scheduler will now be ◦ maintained; no extraneous replication images will be created. ◦ Replication schedules will no longer cause the SMU to time out and become unresponsive. Improved the messaging when attempting to detach a secondary replication volume and an ◦...

  • Page 7: Installation Instructions

    When changing the external-view volume of a replication set, do so from the destination system first, then perform the change on the source system. MSA70 disk enclosures are supported for use with P2000 G3 arrays running TS230 or later firmware, but must have firmware 2.28 installed. For more information on MSA70 firmware compatibility with different P2000 G3 array firmware versions, see the QuickSpecs for the MSA70 or P2000 G3, or see the HP 60/70 Modular Smart Array Enclosure Firmware 2.28 Release...

  • Page 8: Installation Notes And Best Practices

    Updating array controller firmware may result in new event messages that are not described in earlier versions of documentation. For comprehensive event message documentation, see the most current version of the HP P2000 G3 MSA System Event Descriptions Reference Guide. The Smart Component update process logs messages to \CPQSYSTEM\Log\cpqsetup.log on the system drive in Windows and /var/cpq/Component.log in Linux.

  • Page 9

    Installing firmware using Smart Components — Windows environments This is a self-extracting executable module. You can execute this module from the Windows graphical user interface (GUI) or the command line console (CLI). GUI option Place the downloaded firmware package in a temporary directory. Using Windows Explorer, navigate to the directory containing the download.

  • Page 10

    Installing firmware using Smart Components — Linux environments Place the downloaded firmware package in a temporary directory. Open a Linux command console. From the directory containing the downloaded file, enable execute access to this model by entering chmod +x CPxxxxxx.scexe, where CPxxxxxx.scexe represents the downloaded file. Execute the Smart Component by entering a command similar to the following: ./CPxxxxxx.scexe --target <ip_address>...

  • Page 11: Installation Troubleshooting

    Installation troubleshooting If you experience issues during the installation process, do the following: When viewing system version information in the SMU System Overview panel, if an hour has elapsed and the components do not show that they were updated to the new firmware version, refresh the web browser.

  • Page 12

    Known issues and workarounds Issue: When installing a firmware update using the Smart Component, the installation routine may incorrectly report that the upgrade was unsuccessful. Workaround: If the Smart Component installation routine states that a firmware load was unsuccessful, verify which version of firmware is installed using an array management utility, such as the SMU or CLI.

  • Page 13

    Issue: In the Command Line Interface, the array will incorrectly accept a DNS name for the address for the SMNP, SMTP, and NTP servers. The array does not use DNS, and will not be able to connect to the server correctly. Workaround: Instead of network names, enter the IP addresses for the servers.

  • Page 14

    Verify that the SFP+, Copper Cable, or Direct Attach Cable is a supported component. For support information, see the P2000 G3 QuickSpecs on the P2000 G3 product page: If the components are indeed listed as supported models, remove and reinsert the SFP+, Copper Cable, or Direct Attach cable.

  • Page 15

    Workaround: Install a device driver for the mini-USB CLI port. This driver is packaged as a Smart Component and is available for download on the P2000 G3 support page. Issue: When using SMI-S, only partial support is provided for iSCSI Target Ports Subprofile.

  • Page 16

    Issue: A P2000 G3 iSCSI MSA System LUN which has been newly added to a Citrix XenServer 5.6 pool may not return to an active Storage Repository (SR) state following removal or replacement of an array controller.

  • Page 17

    Supersedes history Firmware version Release date TS230R044 June 201 1 TS220R004 (1GbE iSCSI MSA systems) November 2010 RS210R016 (10GbE iSCSI MSA systems) September 2010 Effective date June 201 1 Supersedes history...
