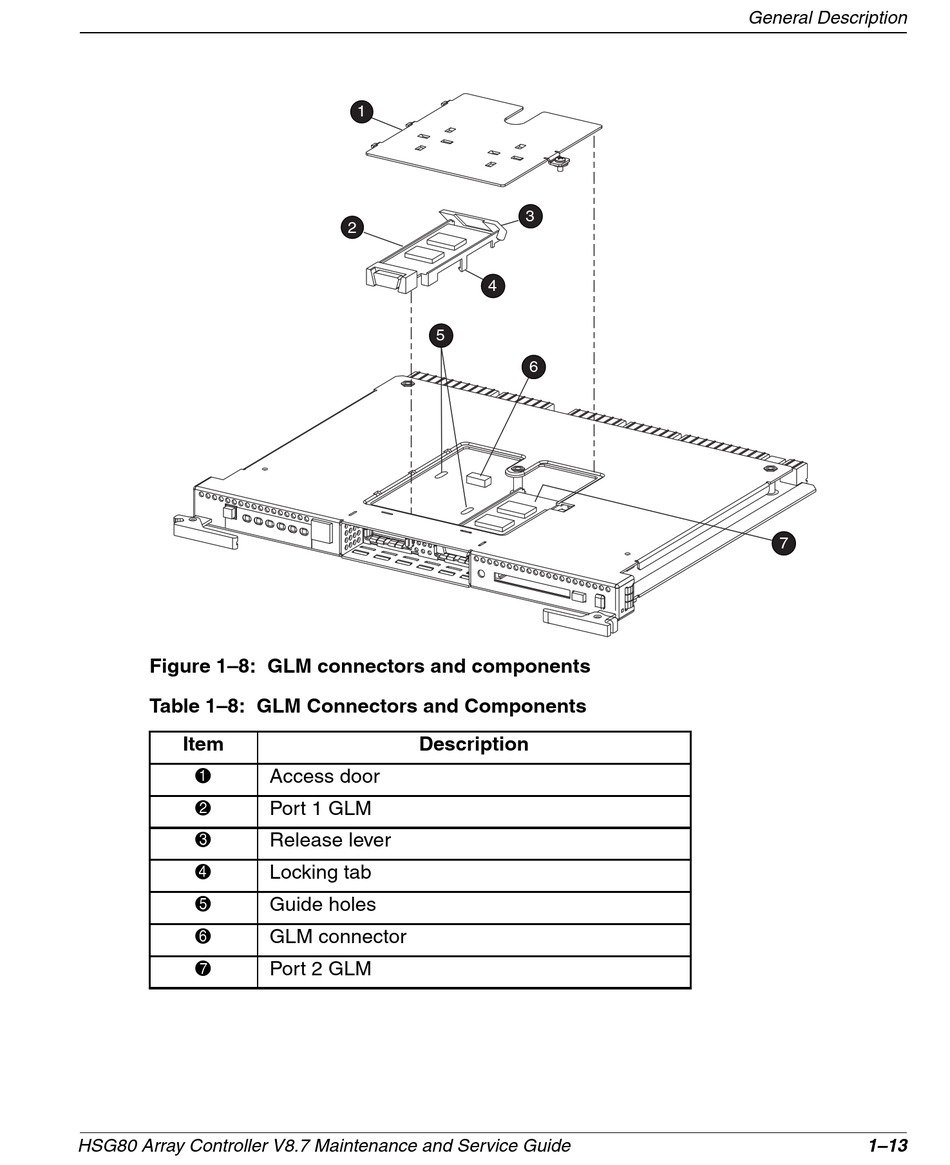

Figure 1–8: GLM connectors and components
Table 1–8: GLM Connectors and Components
Item
1
2
3
4
5
6
7
HSG80 Array Controller V8.7 Maintenance and Service Guide
1
2
5
Description
Access door
Port 1 GLM
Release lever
Locking tab
Guide holes
GLM connector
Port 2 GLM
3
4
6
