9. Remove all DIMMs from the cache module for use within the replacement cache
module.
NOTE: For ease in pressing down on the DIMM retaining clips, use the eraser end of a
pencil or a small screwdriver.
a. Press down on the DIMM retaining clips 3 at both ends of the DIMM 1
being removed (see Figure 3–6).

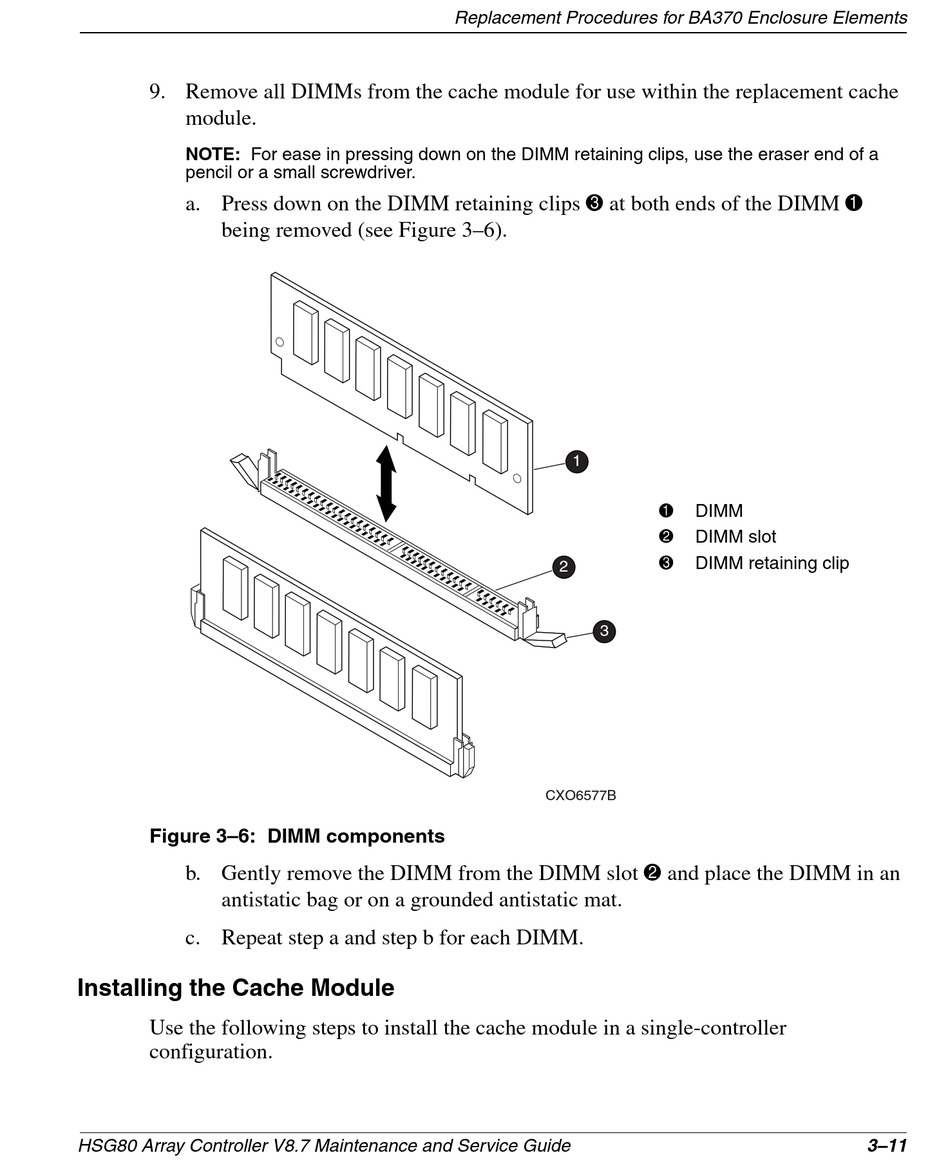

Figure 3–6: DIMM components
b. Gently remove the DIMM from the DIMM slot 2 and place the DIMM in an
antistatic bag or on a grounded antistatic mat.
c. Repeat step a and step b for each DIMM.

Installing the Cache Module

Use the following steps to install the cache module in a single-controller
configuration.
HSG80 Array Controller V8.7 Maintenance and Service Guide
Replacement Procedures for BA370 Enclosure Elements
1
2
3
1
DIMM
2 DIMM slot
3
DIMM retaining clip
3–11
