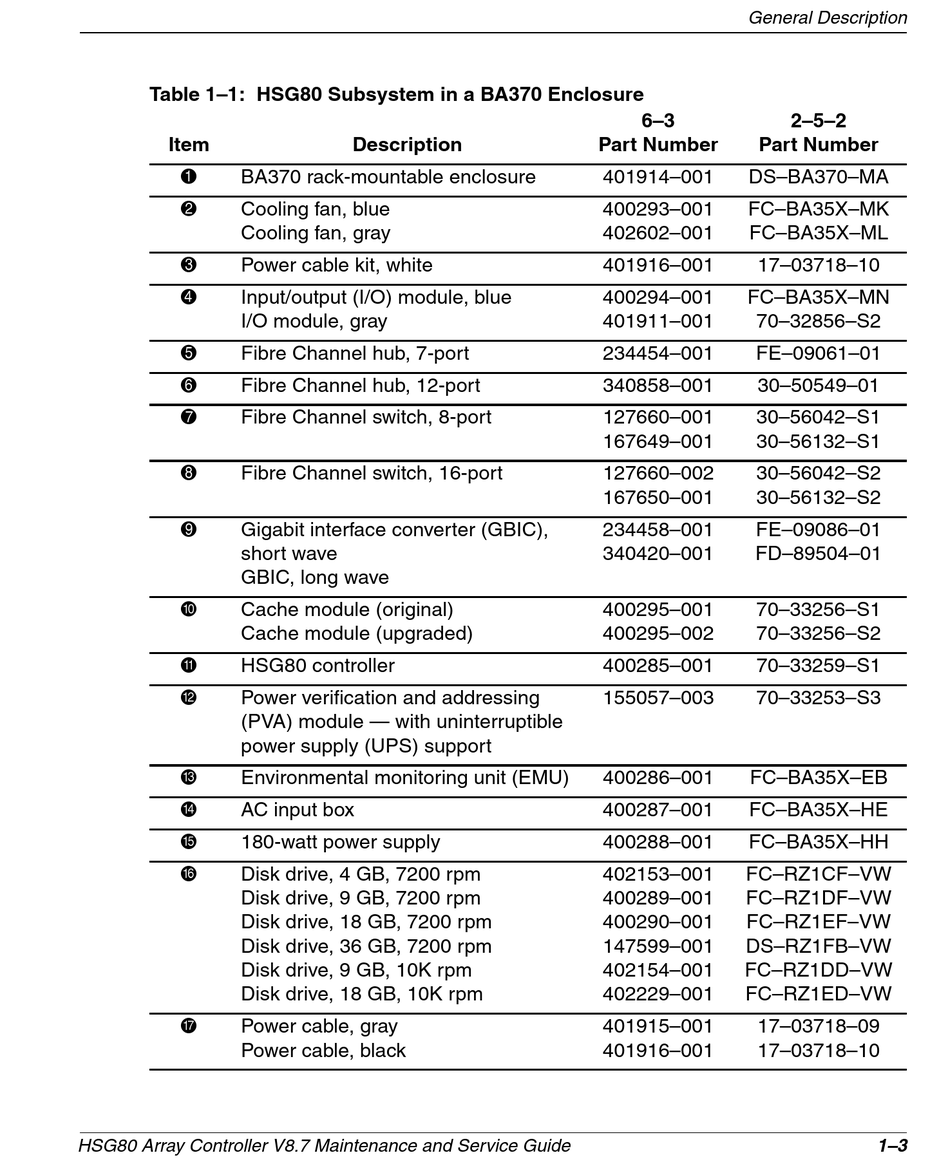

Table 1–1: HSG80 Subsystem in a BA370 Enclosure
Item
1 BA370 rack-mountable enclosure
2 Cooling fan, blue
Cooling fan, gray
3 Power cable kit, white
4 Input/output (I/O) module, blue
I/O module, gray
5 Fibre Channel hub, 7-port
6 Fibre Channel hub, 12-port
7 Fibre Channel switch, 8-port
8 Fibre Channel switch, 16-port
9 Gigabit interface converter (GBIC),
short wave
GBIC, long wave
- Cache module (original)
Cache module (upgraded)
q
HSG80 controller
w
Power verification and addressing
(PVA) module — with uninterruptible
power supply (UPS) support
e Environmental monitoring unit (EMU)
r AC input box
t
180-watt power supply
y
Disk drive, 4 GB, 7200 rpm
Disk drive, 9 GB, 7200 rpm
Disk drive, 18 GB, 7200 rpm
Disk drive, 36 GB, 7200 rpm
Disk drive, 9 GB, 10K rpm
Disk drive, 18 GB, 10K rpm
u
Power cable, gray
Power cable, black
HSG80 Array Controller V8.7 Maintenance and Service Guide
Description
General Description
6–3
Part Number Part Number
401914–001 DS–BA370–MA
400293–001 FC–BA35X–MK
402602–001 FC–BA35X–ML
401916–001 17–03718–10
400294–001 FC–BA35X–MN
401911–001 70–32856–S2
234454–001 FE–09061–01
340858–001 30–50549–01
127660–001 30–56042–S1
167649–001 30–56132–S1
127660–002 30–56042–S2
167650–001 30–56132–S2
234458–001 FE–09086–01
340420–001 FD–89504–01
400295–001 70–33256–S1
400295–002 70–33256–S2
400285–001 70–33259–S1
155057–003 70–33253–S3
400286–001 FC–BA35X–EB
400287–001 FC–BA35X–HE
400288–001 FC–BA35X–HH
402153–001 FC–RZ1CF–VW
400289–001 FC–RZ1DF–VW
400290–001 FC–RZ1EF–VW
147599–001 DS–RZ1FB–VW
402154–001 FC–RZ1DD–VW
402229–001 FC–RZ1ED–VW
401915–001 17–03718–09
401916–001 17–03718–10
2–5–2
1–3
