Model 2200 Enclosure Fan LEDs

Figure 1–14 and Table 1–14 identify fan LEDs for a Model 2200 enclosure.
NOTE: Refer to the Model 2200 enclosure user guide for detailed information.

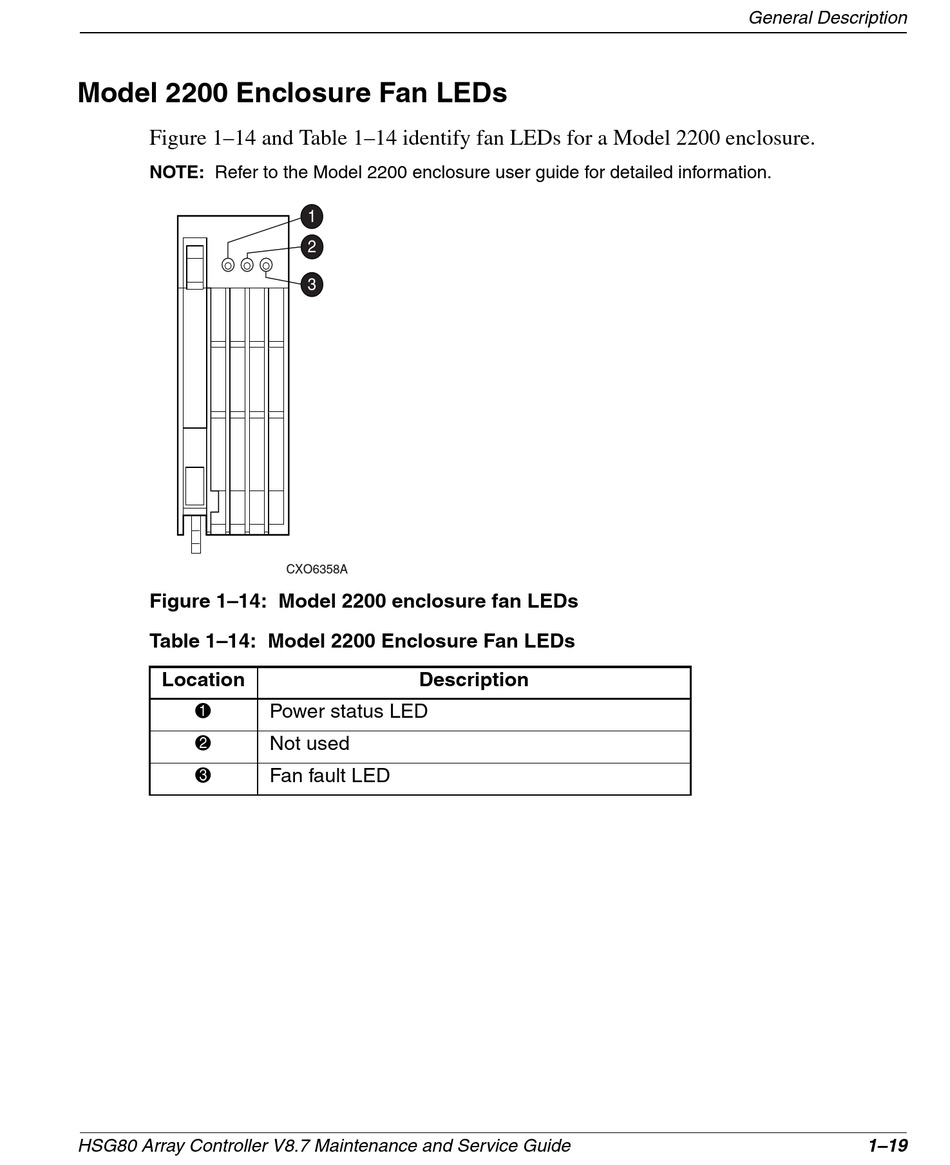

Figure 1–14: Model 2200 enclosure fan LEDs
Table 1–14: Model 2200 Enclosure Fan LEDs
Location
1
2
3
HSG80 Array Controller V8.7 Maintenance and Service Guide
1
2
3
CXO6358A
Description
Power status LED
Not used
Fan fault LED
General Description
1–19
