General Description

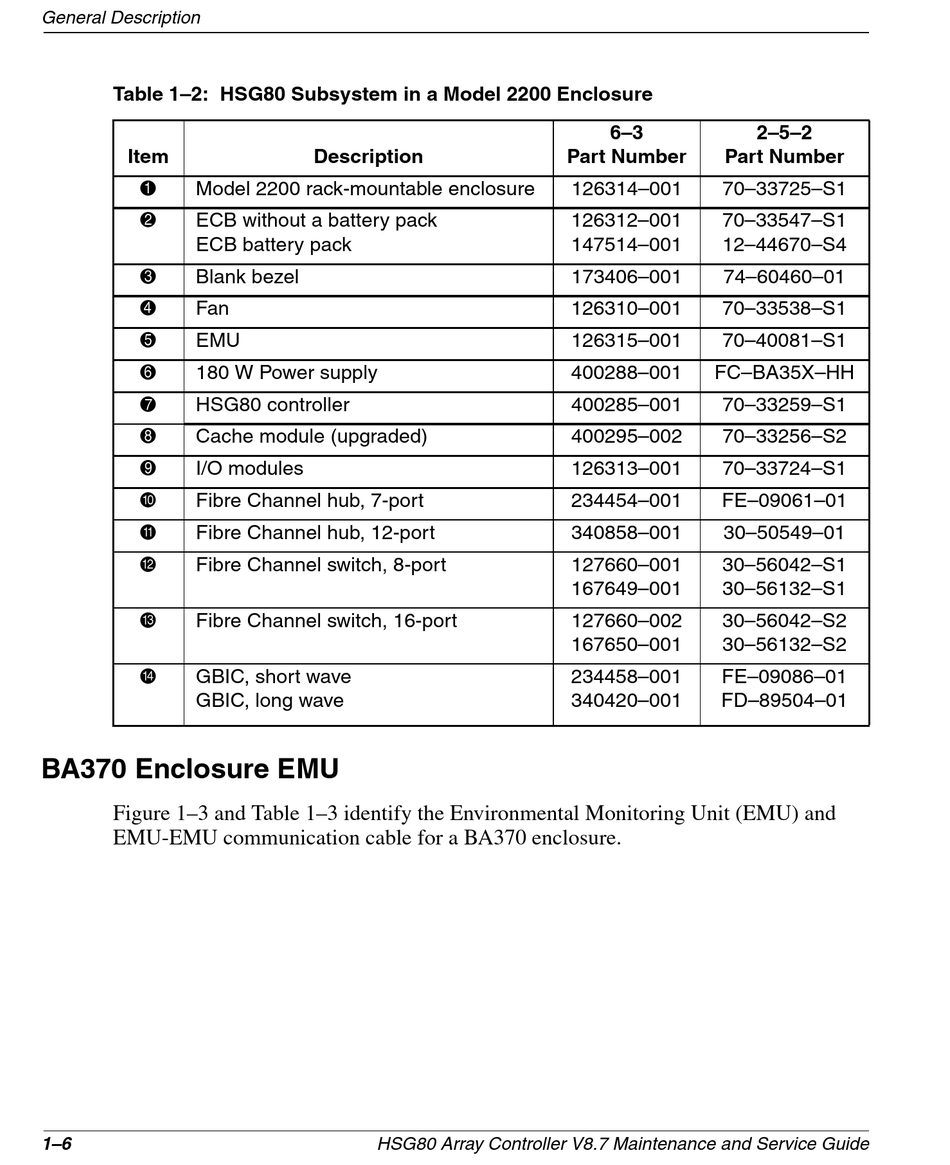

Table 1–2: HSG80 Subsystem in a Model 2200 Enclosure
Item
1 Model 2200 rack-mountable enclosure
2 ECB without a battery pack
ECB battery pack
3 Blank bezel
4 Fan
5 EMU
6 180 W Power supply
7 HSG80 controller
8 Cache module (upgraded)
9 I/O modules
- Fibre Channel hub, 7-port
q Fibre Channel hub, 12-port
w Fibre Channel switch, 8-port
e Fibre Channel switch, 16-port
r
GBIC, short wave
GBIC, long wave

BA370 Enclosure EMU

Figure 1–3 and Table 1–3 identify the Environmental Monitoring Unit (EMU) and
EMU-EMU communication cable for a BA370 enclosure.
