Use a mounting bracket to mark the cage nut installation positions on the front rack posts.

Install cage nuts at the marked positions.

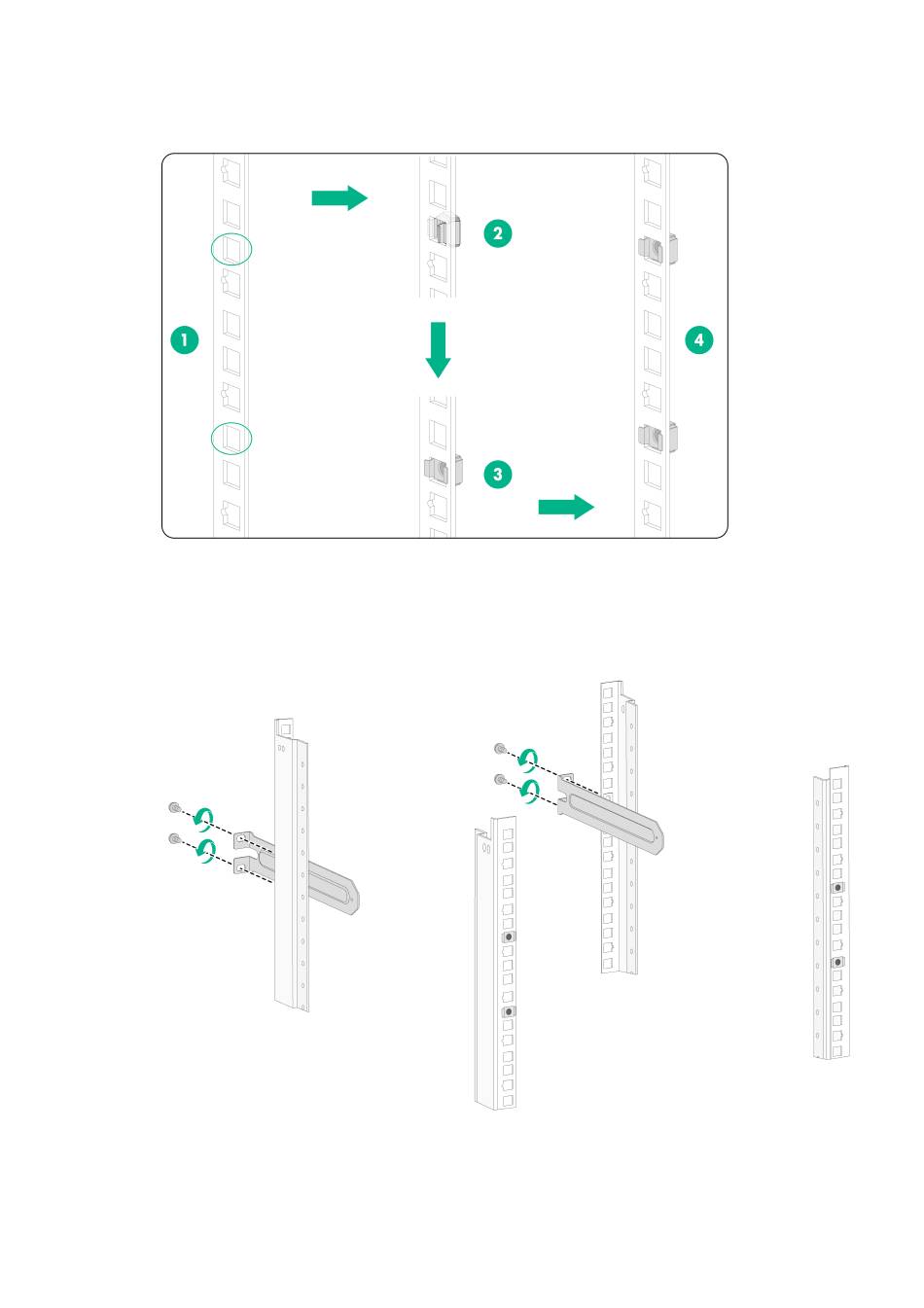

Figure3-3 Attaching cage nuts to the rack

Use a slide rail to mark the cage nut installation positions on the rear rack posts. Install cage

nuts at the marked positions and attach slide rails to the rack.

Figure3-4 Attaching slide rails to the rack

3-3
