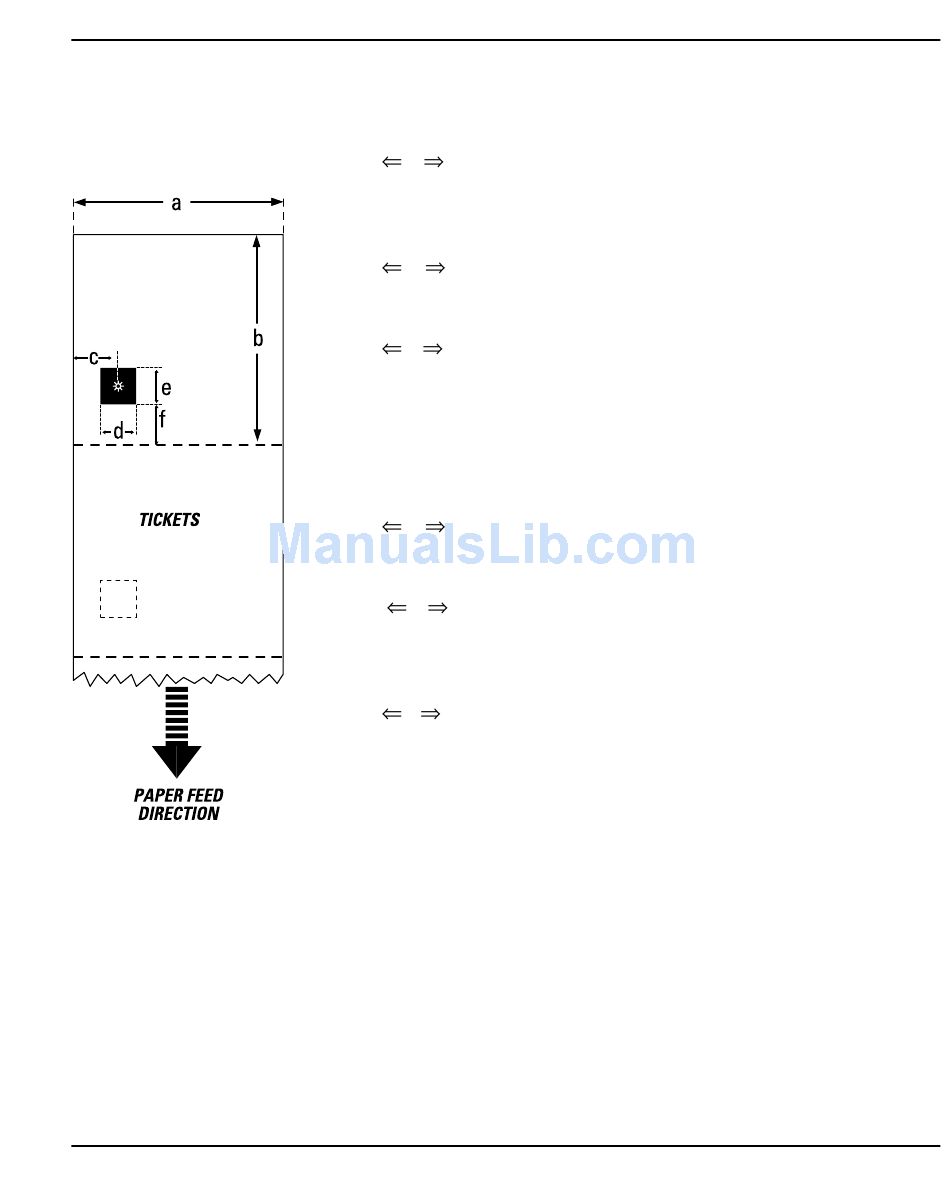

Tickets with Black Mark

Intermec EasyCoder F2 – Installation & Operation Ed. 1
a Web Width:
Maximum .......................... :
Minimum (standard) .......... :
Minimum (Quick-Load) .... :
b Copy Length:
Minimum .......................... :
Maximum .......................... : depends on DRAM memory size
c LSS Detection Position:
Five fixed positions (distance from inner edge of paper):
3 mm (.118")
8 mm (.315")
12 mm (.472")
16 mm (.639")
20 mm (.787")
d Black Mark Width:
The detectable width of the black mark should preferably be at least
5.0 mm (0.2") on either side of the LSS detection point.
e Black Mark Length:
Maximum .......................... :
Common ........................... :
Minimum .......................... :
f Black Mark Y-Position:
It is recommended to place the black mark as close to the front edge
of the ticket as possible and use a negative Stop Adjust value to
control the paper feed, so the tickets can be properly torn or cut off.
Media Type Setup:
• Ticket (w mark)
Important! Preprint that may interfere with the detection of the black
mark should be avoided on the back of the paper. However, the
LBLCOND statement allows the sensor to be temporarily disabled
during a specified amount of paper feed in order to avoid uninten-
tional detection, see Intermec Fingerprint manuals.
The black mark should be non-reflective carbon black on a whitish
background.
Do not allow any perforations to break the edge of the web, as this
may cause the web to split, resulting in a paper jam.
Appendix 2 Media Specifications
60.0 mm (2.36")
25.0 mm (1.00")
40.0 mm (1.57")
20.0 mm (0.8")
21.3 mm (0.83")
12.5 mm (0.5")
5.0 mm (0.2")
