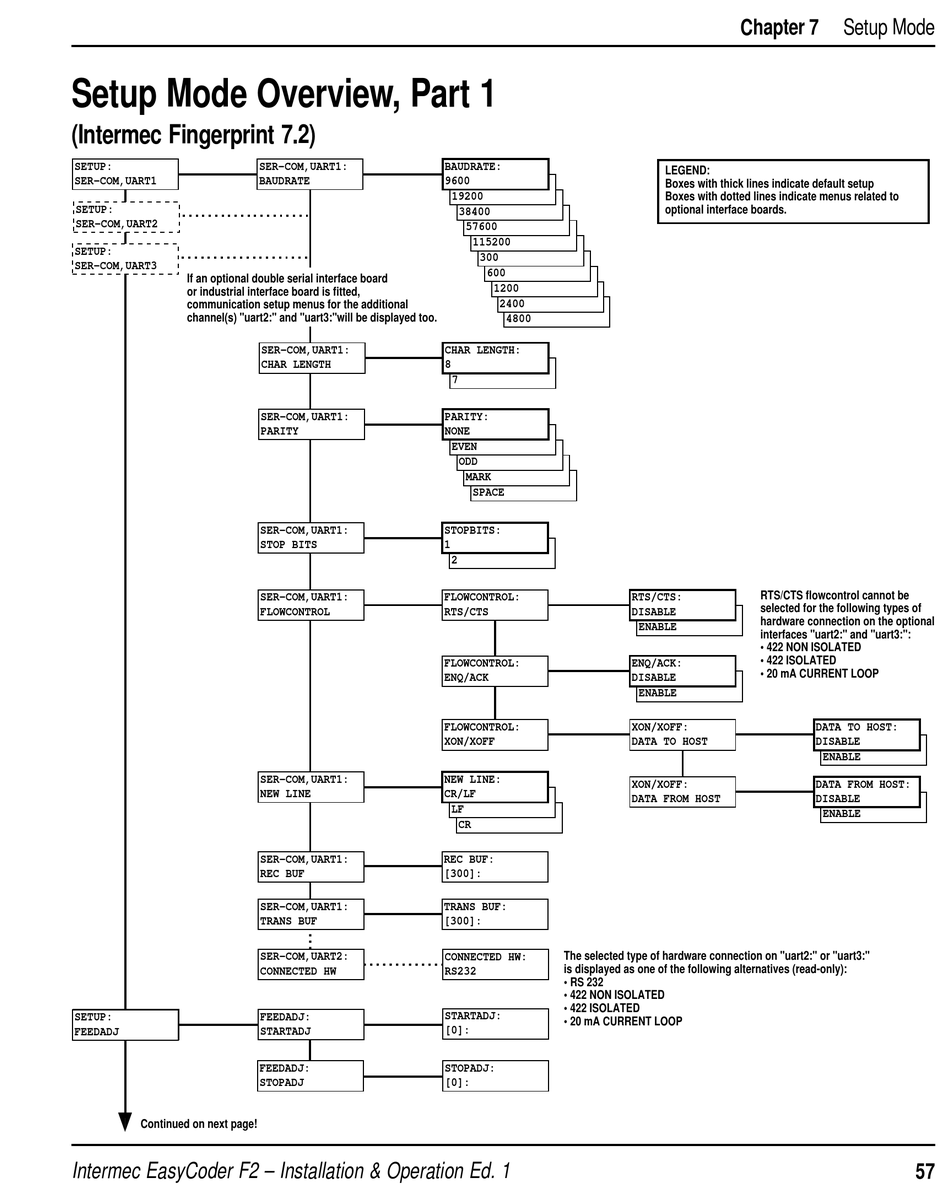

Setup Mode Overview, Part 1

(Intermec Fingerprint 7.2)
SETUP:
SER-COM,UART1
SETUP:
SER-COM,UART2
SETUP:
SER-COM,UART3
If an optional double serial interface board
or industrial interface board is fitted,
communication setup menus for the additional
channel(s) "uart2:" and "uart3:"will be displayed too.
DETECTION:
SETUP:
FEEDADJ FEEDADJ
Continued on next page!
Intermec EasyCoder F2 – Installation & Operation Ed. 1
SER-COM,UART1:
BAUDRATE
SER-COM,UART1:
CHAR LENGTH
SER-COM,UART1:
PARITY
SER-COM,UART1:
STOP BITS
SER-COM,UART1:
FLOWCONTROL
SER-COM,UART1:
NEW LINE
SER-COM,UART1:
REC BUF
SER-COM,UART1:
TRANS BUF
SER-COM,UART2:
CONNECTED HW
FEEDADJ:
STARTADJ
FEEDADJ:
STOPADJ
BAUDRATE:
9600
19200
38400
57600
115200
300
600
1200
2400
4800
CHAR LENGTH:
8
7
PARITY:
NONE
EVEN
ODD
MARK
SPACE
STOPBITS:
1
2
FLOWCONTROL:
RTS/CTS
FLOWCONTROL:
ENQ/ACK
FLOWCONTROL:
XON/XOFF
NEW LINE:
CR/LF
LF
CR
REC BUF:
[300]:
TRANS BUF:
[300]:
The selected type of hardware connection on "uart2:" or "uart3:"
CONNECTED HW:
is displayed as one of the following alternatives (read-only):
RS232
• RS 232
• 422 NON ISOLATED
• 422 ISOLATED
STARTADJ:
• 20 mA CURRENT LOOP
[0]:
STOPADJ:
[0]:
Chapter 7
LEGEND:
Boxes with thick lines indicate default setup
Boxes with dotted lines indicate menus related to
optional interface boards.
RTS/CTS flowcontrol cannot be
RTS/CTS:
selected for the following types of
DISABLE
hardware connection on the optional
ENABLE
interfaces "uart2:" and "uart3:":
• 422 NON ISOLATED
• 422 ISOLATED
ENQ/ACK:
• 20 mA CURRENT LOOP
DISABLE
ENABLE
XON/XOFF:
DATA TO HOST
XON/XOFF:
DATA FROM HOST
Setup Mode
DATA TO HOST:
DISABLE
ENABLE
DATA FROM HOST:
DISABLE
ENABLE
