Adjustments
Narrow Labels
Adjustment
Pressure Arm
Centre of paper
Intermec EasyCoder F2 – Installation & Operation Ed. 1
The printer is factory-adjusted for full size paper width. When us-
ing paper less than full width, it is recommended to adjust the pres-
sure arm so it becomes centred on the paper. Thereby, an even pres-
sure across the paper is obtained.
A poorly adjusted pressure arm may be detected by a weaker print-
out on the inner part of a less than full width paper. Similarly, when
reverting to a wider paper, the arm should be adjusted, or the print-
out on the outer part of the paper could be weak.

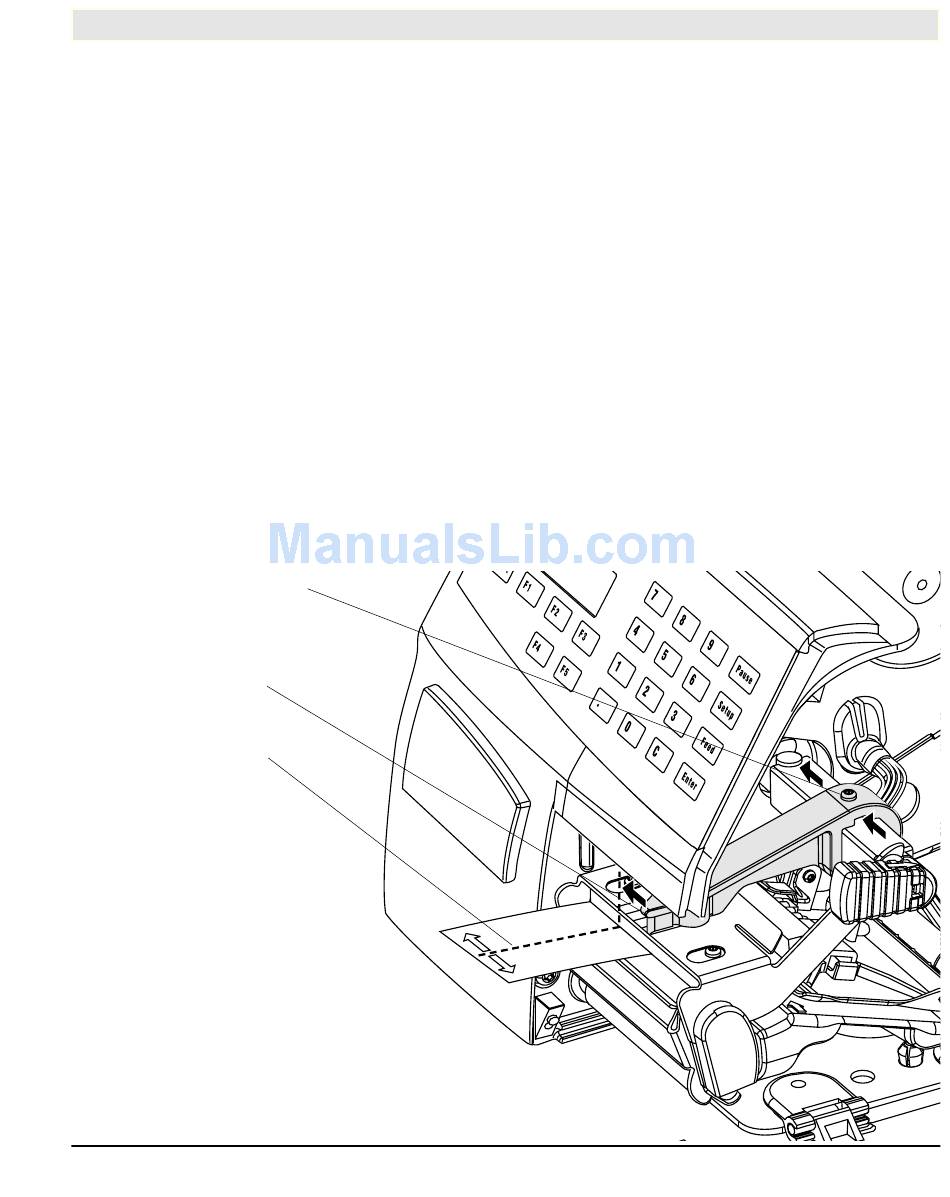

To adjust the pressure arm, proceed as follows:
• Loosen the screw that holds the pressure arm. Move the arm
inwards or outwards until the arrow on the tip of the arm becomes
centre-aligned with the paper web.
While moving the arm, push at the part where the screw is
situated, not at the tip. If the arm is hard to move, lift the printhead
and pull the printhead bracket free from the magnet in the arm.
• After having centred the arm, lock it by tightening the screw.
Screw
