Media Com-
partment, cont'd.
Warning:
If the hanger is fitted in its up-
per position, the screw will inter-
fere with a small (38 mm/1.5")
core causing paper misalign-
ment.
Intermec EasyCoder F2 – Installation & Operation Ed. 1
Being of a modular design for maximum flexibility, the EasyCoder
F2 can use either a rotating paper supply spool or a paper supply
hanger fitted in three different positions inside the media compart-
ment, depending on the type of side door (long or short) and whether
the printer is fitted with a rewind unit for the backing paper (liner)
or not. Alternatively, an external paper supply (e.g. a box of fan-
folded tickets) behind the printer can be used.

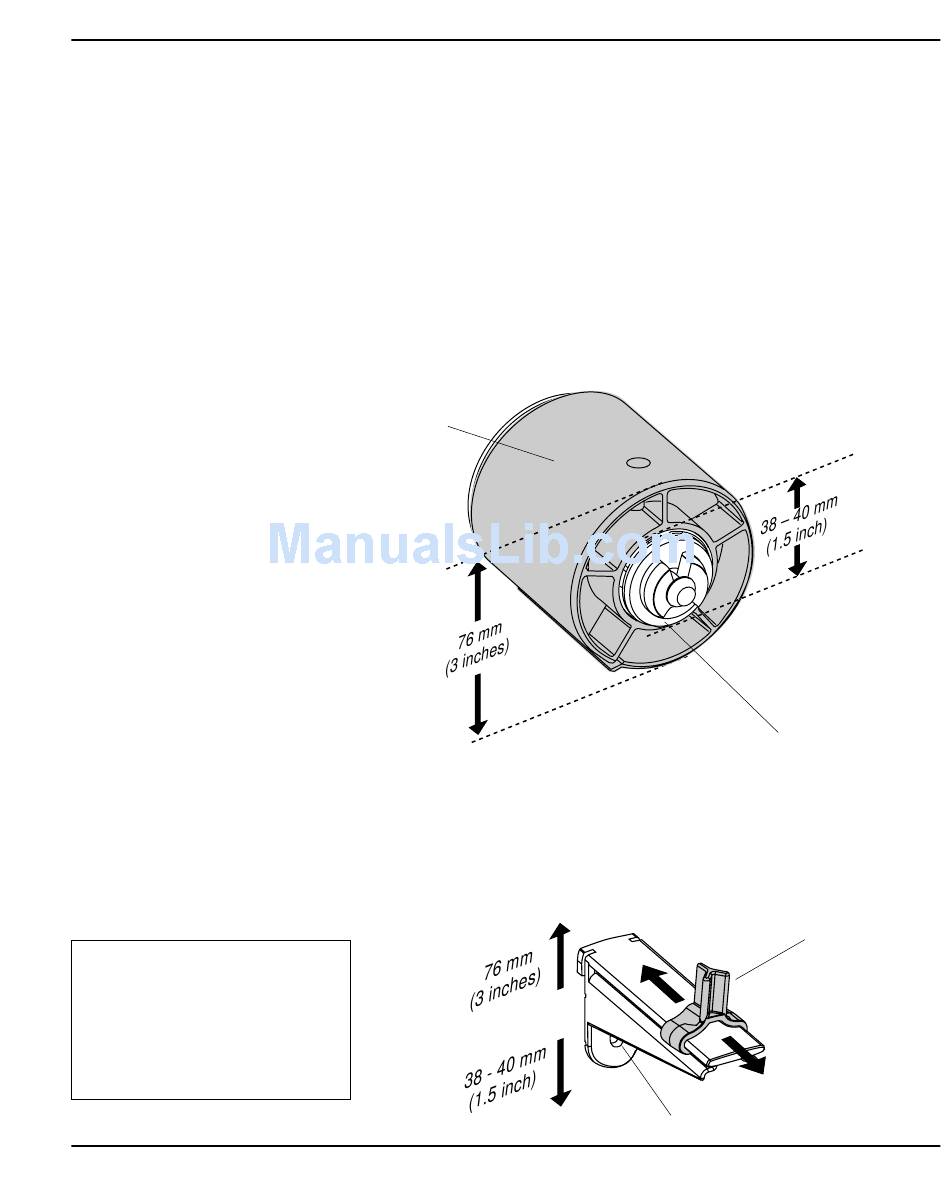

Paper Supply Spool
The rotating paper supply spool is designed to fit paper roll cores
with an internal diameter of 38 – 40 mm (1.5"). 76 mm (3") cores
can also be accepted by fitting an adapter on the spool. Secure the
adapter on the spool by means of the locking screw.
Adapter
Paper Supply Hanger
The paper supply hanger fits both 38 – 40 mm (1.5") and 76 mm
(3") cores since it can be moved vertically in the slot in centre-line
wall. The lowermost position is intended for small cores and the
uppermost one for large cores only. The hanger is locked by a screw
and has a moveable guide to fit various paper widths.
Chapter 3
Screw (hidden)
Installation
Spool
Guide
