Peel-Off

1

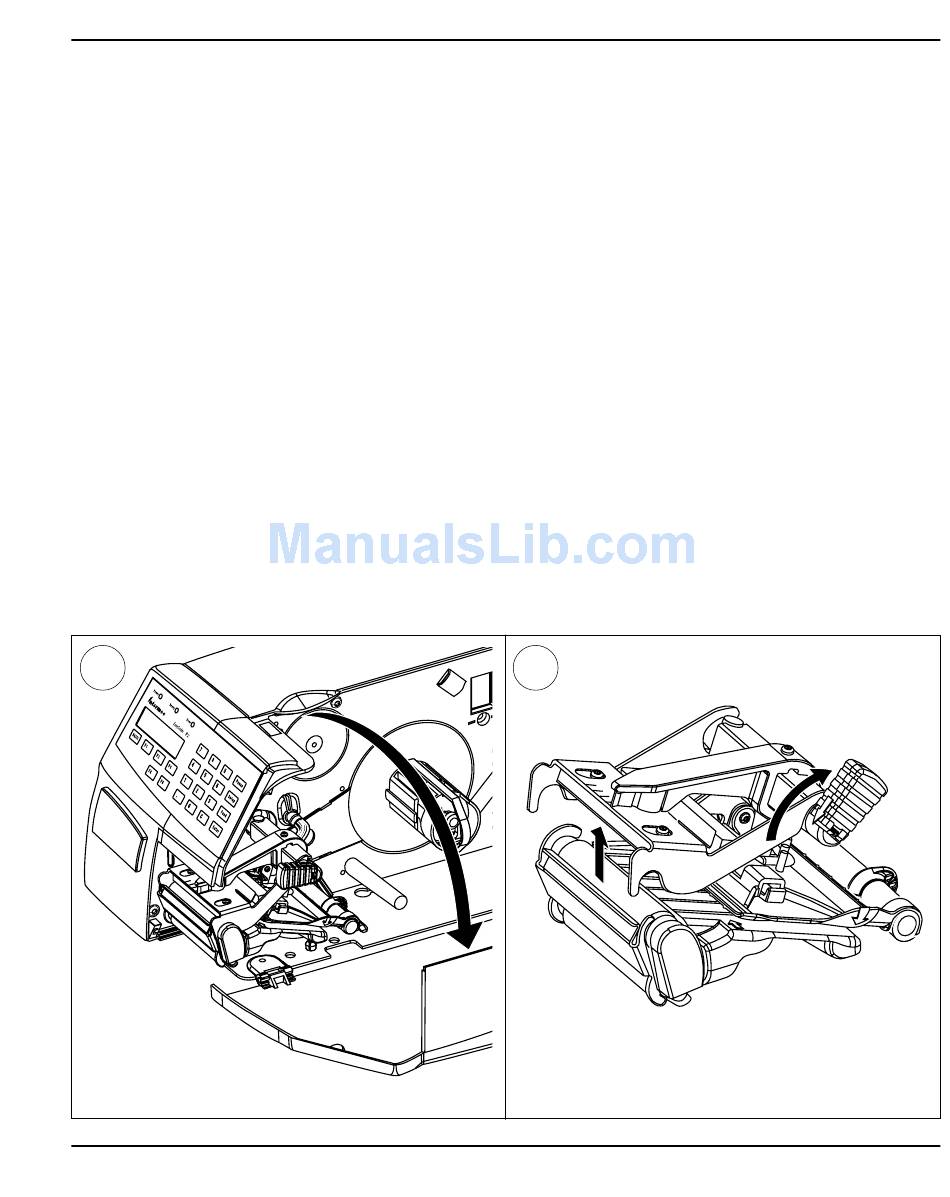

Open the side door.
Intermec EasyCoder F2 – Installation & Operation Ed. 1
The EasyCoder F2 can print on labels, tickets, tags, and paper strip
in various forms. This chapter describes the case when self-adhe-
sive labels are separated from a backing paper (liner) immediately
after printing after which the backing paper is rewound internally in
the printer.
Use the <Feed> key (see figure #14) when loading the same type
of paper as before. When switching to a new type of media or when
the printer does not feed out the paper properly, simultaneously press
the <Shift> and <Feed> keys.
Peel-off can only be used for:
• Self-adhesive labels on backing paper
An optional label-taken sensor can hold the printing of next label in
a batch until the present label has been removed, see chapter 9 "Op-
tions".
2
Turn the printhead lift knob clockwise to lift the
Chapter 5 Paper Load
printhead.
36
