Cleaning The Paper Guides - Intermec EasyCoder F2 Installation And Operation Manual

Cleaning the
Paper Guides
1

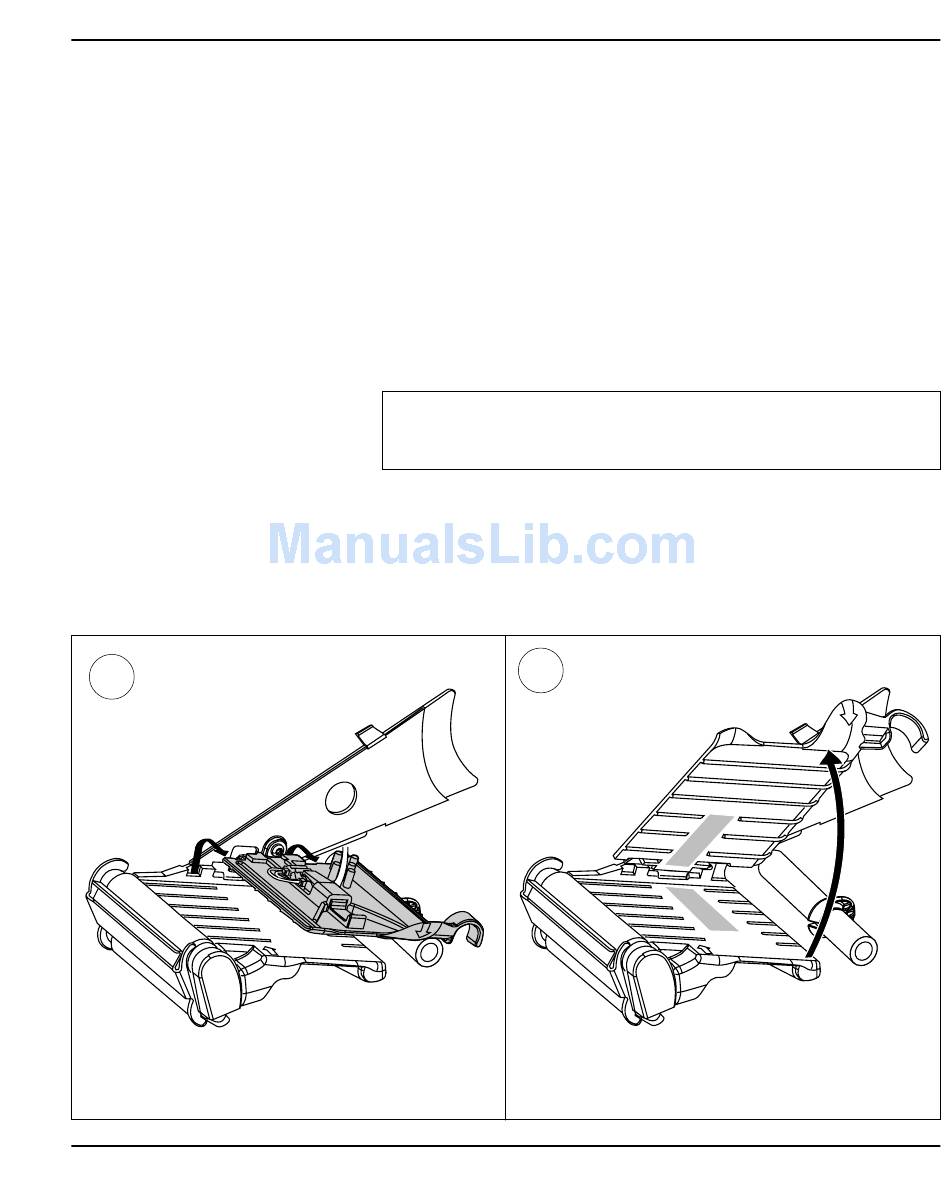

Lift the inner part of the upper guide and pull it
outwards so as to disengage it from the print
unit. Be careful not to damage the cable.
Intermec EasyCoder F2 – Installation & Operation Ed. 1
Both parts of the label stop sensor, which controls the paper feed,
are covered by plastic guides. The guides are provided with seem-
ingly non-transparent areas, through which the light from two parts
of the label stop sensor is transmitted. These areas (indicated by a
shade of grey in illustration #2 below) must be kept clean from
dust, stuck labels and adhesive residue.
If the printer starts to feed out labels in an unexpected way, lift the
upper guide – as described below – and check for anything that
may block the beam of light (dust, stuck labels, adhesive residue
etc). If necessary, clean the guides using a cleaning card or a soft
cloth soaked with isopropyl alcohol. Do not use any other type of
chemicals. Be careful not to scratch the guides.
Caution!
Isopropyl alcohol [(CH
flammable, moderately toxic and mildly irritating substance.
2
Tilt the upper guide upwards and clean the
areas marked with grey. After cleaning, reas-
Chapter 11
) CHOH; CAS 67-63-0] is a highly
3 2
semble in reverse order.
Maintenance
