VETRON 5000 Service Manual

Hide thumbs Also See for 5000:

Advertisement

Quick Links

Download this manual

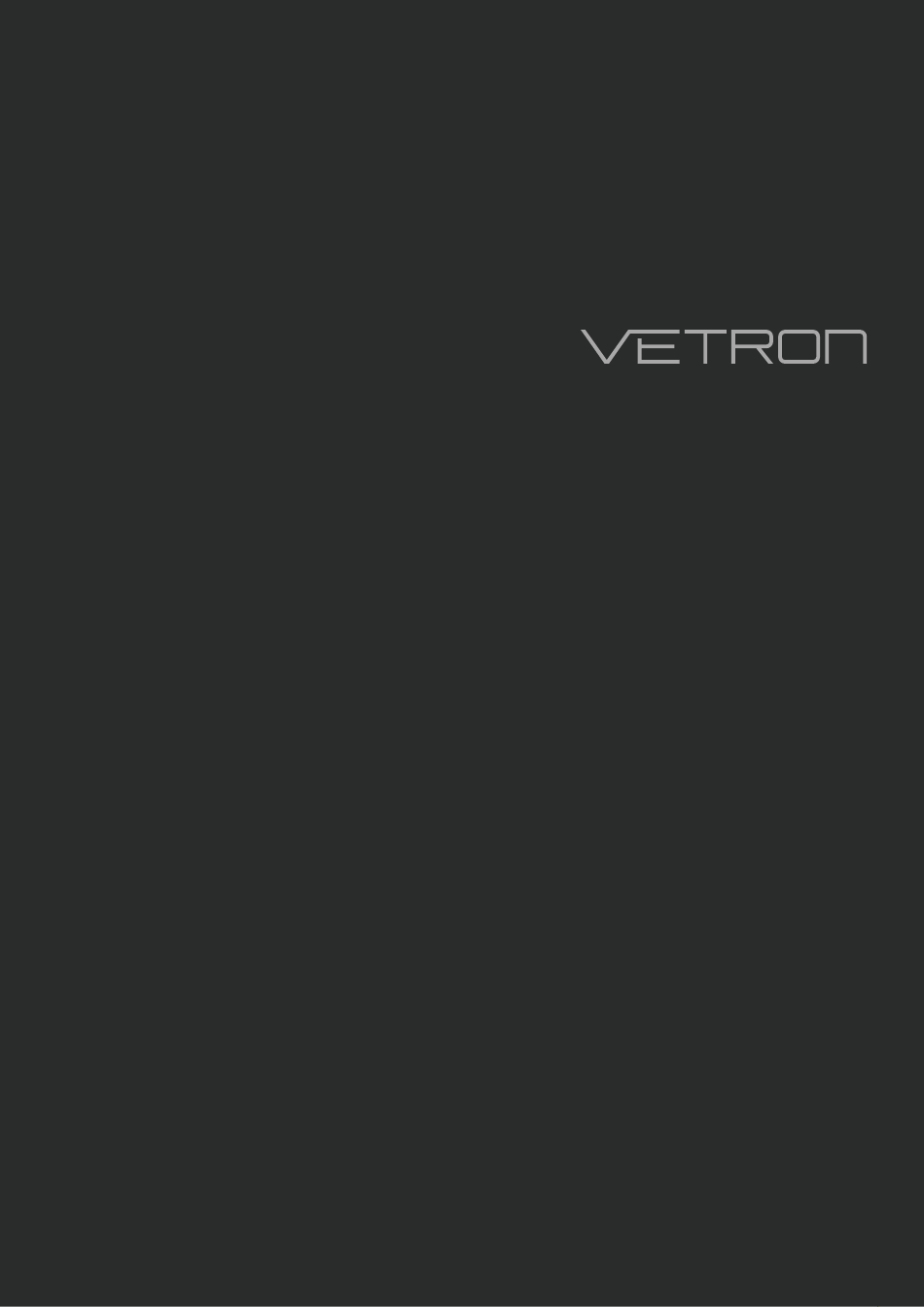

5000 / 5100 » SERVICE MANUAL
05/2019

Advertisement

loading

Related Manuals for VETRON 5000

Summary of Contents for VETRON 5000

  • Page 1 5000 / 5100 » SERVICE MANUAL 05/2019...
  • Page 3 5000/5100 » SERVICE BOOK 05/2019 STANDARD » 5000 » 5010 » 5020 » 5030 » 5040 LONGARM » 5100 » 5110 » 5120 » 5130...
  • Page 4 VETRON | Typical GmbH inadmissible and punishable. VETRON | Typical GmbH is only liable for damage caused by intent or gross negligence on the part of the manufacturer. Otherwise, liability is excluded.
  • Page 5 02. MENU GUIDE OF THE BASIC SETTING 03. SAVE OR DISCARD 04. BASIC PARAMETER RESET 05. PARAMETER LIST 06. UPDATE THE OPERATING PROGRAM 05/2019 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 6 31.01. ADJUSTMENT OF THE THREAD TAKE UP SPRING TRAVEL / 2-NEEDLE 32.01. THREAD TENSION SERVICE / 2-NEEDLE 33. PEDAL 34. ELECTRICAL EDGE GUIDE SETUP 35. SEWING AND FUNCTIONS CHECK 36. DURABILITY CHECK 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 7 01. VETRON 8340 CONTROL BOX 02. POWER CONNECTION BLOCK DIAGRAM 03. 8640 STEPPER DRIVER TERMINAL 04. 8340 MAIN TERMINAL MAIN DRIVE 05. VETRON 5XXX HEAD PCB 06. VETRON 5XXX HEAD ADAPTER PCB 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 8 INDEX 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 9 The manufacturer assumes no responsibility for damage caused by changes or modifications. » For repairs, only spare parts approved by VETRON may be used. In case of infringement the guarantee expires. » The machines are to be used only for the purpose intended.
  • Page 10 This symbol indicates that there is an increased risk of burning here. MAGNET! This symbol indicates that there is a magnet field. INFORMATION! This symbol displays information. ADVICE! This symbol indicates important information. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 11 Risk of injury when machine is tilted back. SAFETY PRECAUTIONS! The eye protection can be ordered optionally, but must not be removed after installation without consultation with the operator. The finger guard must not be removed! 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 12 It is very important that all safety devices are reassembled correctly after adjustment procedure. TOOLS » 1 Set Screwdrivers » 1 Set Allenkeys and Gauges (Ordernumber: Service Kit 559 2205 09) 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...

  • Page 13: Operating Elements

    01. OPERATING ELEMENTS 01. OVERVIEW OPERATING FIELD P000 TEST HOTKEYS ELECTRONICS AND SEWING REVERSE CONTROL USB-DONGLE PEDAL 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 14 Turning changes the values; pressing the JOG KEY enters the value. In the following, the operating type is indicated by the following icons: Input = Press the JOG KEY: Change = Turn the JOG KEY: 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 15 If the backtack function is activated, the following backtack is switched o once by pushing the key. STITCH LENGTH If the second stitch length is activated, the corresponding LED lights up. CUSTOMIZABLE BUTTON Default: Toggle foot stroke level (see parameter M085) 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 16 From here on, the operating type is indicated by the following icons: Pressing the handwheel: stitch-for-stitch function / needle positioning Turning the handwheel: REVERSE SEWING Pulling the button changes the sewing direction. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 17 01. OPERATING ELEMENTS 05. CONTROL & MAIN SWITCH MACHINE MAIN SWITCH ON/OFF USB-PORT Identify yourself using the provided USB dongle. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 18 CONSTANT SEWING SPEED (adjustable via parameter M502) VARIABLE SEWING SPEED FROM 0-100% OF THE CHOSEN MAXIMUM SPEED (depending on sewing program) SEWING FEET LIFT SEAM END PROCEDURE ACTIVATION (depending on sewing program) 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 19 Change LIGHT INTENSITY light intensity of the light are changed. After 2 seconds without further input, the value is set and the current program number is shown. Machine is ready for operation 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 20 01. OPERATING ELEMENTS 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 21 Basic ameter » Turn the JOG KEY if necessary until SERVICE is appearing in the Display. e v c » confirm. c ad t en » confirm. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 22 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 23 » Mark NO. INFO: Your input is discarded and the system will move to the last chosen » Confirm. item of the adjustment wizard. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 24 MACHINE (03.01. / Page 35). You have to repeat this point in order to proceed. INFO: Adjustment steps 03.12., 03.32. C, 03.33. (optional) and 03.34. (optional) must be performed again. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 25 029 Automatic stroke switch delay 0.10 5.00 0.40 030 Thread tension A 1 031 Thread tension A 2 032 Thread tension B 1 033 Thread tension B 2 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 26 061 Edge guide distance to foot 0.1–60.0mm 070 Foot lift height 20.0 12.0 Foot lift maximum 20.0 20.0 for operator ft m Foot lift height on 20.0 needlebar down ft n 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 27 You can choose between: 092 Puller speed mode -100 -100%-100% M 1.. - SEWING OPTION PARAMETER: You can choose between: 100 Thread clamp – – 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 28 You can choose between: 135 Bobbin thread counter 20 000 50 – 20 000 You can choose between: Backtack or condesed BACK- – – STCONDS stitches at seam end TACK (condensed stitches) BACKTACK 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 29 158 Trimming stitch count 1-100 You can choose between: 159 Trimming stitch length -12.0 –12.0 mm You can choose between: 160 Backturn – – 4 . 0 161 Backturn position 359.5 45.0 Degree 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 30 405 Input head function – – d fu SECSW You can choose between: 406 Turn over switch – – You can choose between: 407 Input B3 function – – f nc BARCODE 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 31 WHEEL INV SHORT TRIM WHEEL TGL Needle cooling follow up time 461 Needle cooling start speed 4000 2000 S/min M 5.. - PERIPHERAL PARAMETER: 500 Pedal type – – ANALOG 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 32 HALFSW FULLSW 540 Handwheel increment rate 6 . 0 550 Reserve 560 Reserve 561 Reserve 599 Reserve M 6.. - MAIN DRIVE PARAMETER: 600 Needle position 1 359.5 132.0 Degree 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 33 03.21. ADJUSTMENT OF THE STITCH LENGTH 706 Stitch length o set CORRECTION, p.55 You can choose between: Increase stitch length o set over speed 0-100% 708 Stitch length o set speed 4000 S/min 716 Reserve 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 34 You can choose between: 770 Puller control ontrol You can choose between: 771 Puller wheel diameter 25.0 45.0 25.0 25.0mm heel 45.0mm Puller wheel lowering rotation owering 773 Reserve 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 35 M 9.. - MISCELLANEOUS PARAMETER: 900 Reserve 1 0% 920 Reserve Selection: » TSUPERV » OPERATOR USB authentification mode » LOCKED (can only be used TSUPERV with DONGLE) » LSUPERV » TECHNIC » OPERATOR2 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 36 Appears. Turn machine o ! Turn machine on again. Now the machine with the new update can be operated on. INFO: If there isn‘t any information on DONGLE, „Error“ appears! 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 37 Confirm. P D L Press the pedal. Turn the needle bar into the top dead center. » Confirm. Y S N E / O SAVE (see 02.03. / Page 21). 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 38 Loosen the screws and move the support into a position in which the LEDs lit in every sewing feet position. Tighten screw » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 39 Press the pedal to run the machine. Turn the JOG KEY until the lever stops movement. » » Confirm. Y S N E / O SAVE (see 02.03. / Page 21). 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 40 Press the pedal to run the machine. Turn the JOG KEY until the lever stops movement. l nght » » Confirm. Y S N E / O SAVE (see 02.03. / Page 21). 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 41 Turn the machine to the bottom dead center (180°) with the mechanical handwheel. g pos: 18 Turn the eccentric until the feed dog stops moving, and tighten the screws » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 42 Turn the machine to the 190° position with the mechanical handwheel. In this position turn the feed lifting eccentric until the feed dog is in it‘s top position Tighten screws » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 43 Turn the needle bar into the bottom dead center with the mechanical handwheel (180°). In this position move the needle bar downwards until it touches the gauge Tighten screw » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 44 , and turn the lever until his upper edge a distance of 18mm to the housing edge To measure the distance you can use the gauge Tighten screw » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 45 0mm. Loosen the screw Turn the eccentric shaft into it‘s lowest possible disctance to the housing Tighten screw » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 46 Tighten gauge with the stitch plate screws. Turn the needle bar downwards with the mechanical handwheel so that the 2mm gauge pin can dive into the hole easily. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 47 Tighten the screw INFO: Please make sure that the pin is moving inside of the hole easily and is not bent to the side. » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 48 In this position tighten screw NOTICE: After this adjustment the following adjustment step 03.11. must be performed (again). » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 49 0.1mm. Tighten screw NOTICE: After this adjustment the following adjustment step 03.12., 03.13. and 03.14. must be performed (again). » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 50 Turn the hook until the hook point is positioned in the middle of the needle as shown in image 3. Tighten screw in this position (2mm after the bottom dead center). » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 51 After this adjustment the position of the needle guard must be checked according to step 03.14. NOTICE: A wrongly adjusted needle bar height can cause skip stitches, thread breaking, needle breaking and damage to the hook point. » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 52 Turn the machine with the mechanical handwheel to the thread loop position. Turn the screw outwards until the needle guard touches the needle (position » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 53 Make sure that the feed dog is not touching the stitch plate. Tighten screws » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 54 Press the feed dog carrier with the feed dog upwards until the surface of the feed dog is touching the gauge Tighten screw » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 55 Tighten screw Reassemble the cover and tighten screw » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 56 Turn the machine to the 190° position with the mechanical handwheel. In this position turn the eccentric until the crank reaches the top dead center. Tighten the screw » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 57 Check the equal lift with the allen key Tighten screw Remount the needle and feet correctly. » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 58 TO REDUCE THE Turn the screw counter clockwise out. AMOUNT OF OIL TO INCREASE THE Turn the screw clockwise in. AMOUNT OF OIL » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 59 If you want to make changes. by turning the jog key and repeat the measurement procedure. » Confirm. Y S N E / O SAVE (see 02.03. / Page 21). 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 60 While turning the machine with the mechanical handwheel, the roller lever should not jam with the control cam Tighten nut » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 61 Turn the machine with the mechanical handwheel, the thread take-up lever in the positon top dead center. Turn the control cam as described in the general rule. Tighten the screw » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 62 The height of the thread catcher is factory set through the use of washers. However, if a correction is necessary, add or remove washers at position Loosen screw to add or remove washers. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 63 , be sure to put the washer between the roller lever and the hook saddle Tighten screw with taking care to avoid vertical play. » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 64 Tighten screw Move the thread catcher by hand to make sure that it is not touching the stitch plate in any position. » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 65 In this position turn the knife carrier until the cutting edge of the knife touches the catcher Tighten screw Check the cutting pressure according to the general rule. » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 66 1( With attention to the secure touching of the roller lever to the control cam , tighten screw NOTICE: Avoid vertical play. » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 67 The bobbin thread should not be clamped too hard. After the first stitch the needle thread should have pulled it out of the clamp. » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 68 Turn the control cam until the thread cutting process is securely finished. With attention to the control cam touching bushing at the left, tighten screw » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 69 0mm. Loosen screw and turn the rear tension disk clockwise until reaching the desired tension adjustment. Tighten screw » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 70 7mm to the thread guide NOTICE: Make sure that the collar is pressed back to the stop. Tighten screw » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 71 By turning the JOG KEY, the value can be altered from 0 to 100%. » The thread tension can be checked with a measuring device. » To proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 72 To proceed to the next step. INFO: To remove or install the collar, the motor shaft is fully retracted. This allows the positioning ring to be taken out or reused. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 73 In this position place the hexagon key in screw Move the collar to the right until the hexagon key is touching the needle bar frame (image 3) . Tighten screw in this position. T th » Confirm. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 74 » Turn until the thread tension plates are touching each other slightly without force. » Confirm. Y S N E / O Save (see 02.03. / Page 21). 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 75 Tighten screw To adjust thread tension spring loosen screw and turn the bushing clockwise until the desired pretension is reached. Tighten screw » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 76 Loosen screws Move the stops until the thread take up spring has a distance of 7mm to the thread guide Tighten screws » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 77 By turning the JOG KEY the value can be altered from 0 to 100%. » The thread tension can be checked with a measuring device. » To proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 78 To proceed to the next step. NOTICE: To remove or install the collar, the motor shaft is fully retracted. This allows the positioning ring to be taken out or reused. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 79 Press all parts together and preload tension of the thread tension spring. In this position tighten screw Mount thread tension Place shaft into bushing Slightly tighten screws Then tighten screw from bushing 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 80 (image 3). In this position tighten UNT pl » Confirm. INFO: Thread tension closes. Loosen screws so that the suface tension of the plate can be released. Tighten screws » Confirm. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 81 » Turn until the thread tension plates are touching each other slightly without t ns force. » Confirm. Y S N E / O SAVE (see 02.03. / Page 21). 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 82 Confirm to reset to the default values. t values l se » Confirm to proceed to the next point. Y S N E / O SAVE (see 02.03. / Page 21). 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 83 » Until the electrical edge guide just touches the needle 25 . 0 m » Confirm. Y S N E / O SAVE (02.03. / Page 21). 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 84 » Setting the bobbin case opener too small can lead to a poor stitch pattern. Setting the bobbin case opener too big leads to a high noise emission. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 85 Loosen screws of the cover Loosen screws of the drive Turn the eccentric according to the rule. Tighten srews Tighten screws of the cover. » To proceed to the next point. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 86 Confirm. INFO: By pressing the pedal Press the pedal to start the test. forward or backward the test can be paused or restarted. » To proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 87 157 Thread tension in short cut stitch 158 Trimming stitch count 159 Trimming stitch length 1.8mm Output X2-1 function (Output mobile knife short thread cutter) 6 . 0 601 2 Position 70° 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 88 It should be possible to move the bobbin thread clamp exactly between gauge bobbin case horn Readjust height of hook if necessary. » Confirm to proceed to the next point. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 89 4. Tighten screws while making sure the cam is positioned against the stop on the left side. » Confirm to proceed to the next point. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 90 Loosen lock nut Turn screw until the roll has a lateral gap from 0.1-0.3mm to the control cam Tighten lock nut » Confirm to proceed to the next point. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 91 0.8mm gauge If neccessary add or remove washers at position Considering that the adjustment 04.07. is performed, tighten screw » Confirm to proceed to the next point. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 92 » Confirm. djust machine position in degrees. Loosen screw Move thread catcher according general rule. Tighten screw » Confirm to proceed to the next point. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 93 (image 2). Adjust the distance to 13.3 - 13.5mm. Tighten screw and be sure there isn‘t any vertical play. » Confirm to proceed to the next point. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 94 Loosen screws Move the knife base laterally until a parallel distance of 16.7mm is reached. Tighten screws » Confirm to proceed to the next point. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 95 Dismount knife base and pull eccentric If necessary add or remove washers (15x21x0,2) until the desired distance is reached. Tighten screws » Confirm to proceed to the next point. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 96 While moving the knife should slightly touch the thread catcher in position (image 2). At position the distance between should have gap of 0.5 - 0.8mm to the thread catcher (image 3). 0,5-0,8mm 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 97 Perform cutting test at left and right position and check parallelity. » Confirm to proceed to the next point. NOTICE: The thread catcher should move easily below the knife without hooking in. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 98 Move clamp as necessary and set laterally as in image 3. Tighten screw Check the parallel position. If necessary adjust by bending. » Confirm to proceed to the next point. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 99 Move thread catcher clamp until a distance of 5mm is between bobbin capsule thread catcher clamp . Use gauge for the adjustment. Tighten screw » Confirm to proceed to the next point. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 100 Press the feed dog carrier with the feed dog upwards until the surface of the feed dog is touching the gauge Tighten screw » Confirm to proceed to the next step. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 101 Loosen screw and adjust the pretension. Tighten screw and perform a cutting test. If necessary readjust. » Confirm to proceed to the next point. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 102 04. SHORT THREAD CUTTER 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...

  • Page 103: Maintenance

    Hold the air blow gun in a way that the lint is not blown into the oil collector. DIRECT DRIVE Remove lint and pieces of thread from air-intake Clean fan grill of the main drive openings. (e.g. with an air blow gun) 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 104 03. Unscrew the water seperator 04. Unscrew the filter cartridge Wash the filter shell and cartridge with cleaning fluid (no solvent) and blast clean. 05. Reassemble the maintenance unit. Check for system leaks. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 105 02. If necessary, slightly pull out the oil plug fill the tank up to the MAX marking NOTICE: Please use only oil types recomended by VETRON or an equivalent oil with the following specification: E.g.: Oil PP 20 DAB 10 (Viscosity 40° C: 15 mm /s;...
  • Page 106 05. MAINTENANCE 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...

  • Page 107: Wear Parts

    This Wear Parts List shows the main parts of the machine. A detailed list for the complete machine is available on our website www.vetrontypical.com. It can also be ordered as a manual. 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 108 DIN 913 - M3x2,5 17WF5-037 559 3002 13 DIN 913 M3x3 (2x) 93WF5-002 559 0296 16 Tension Spring 559 0471 16 C144588201 (C) 559 1855 10 559 1856 10 Tension Spring C144588301 (B) 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 109 DIN 988 - 5x10x1 DIN 7991 M4x10 (2x) 559 3007 10 DIN 912 M5x8 DIN 988 - 5x10x1 559 0320 10 559 0313 10 559 2638 10 559 2765 00 559 0326 10 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 110 06. WEAR PARTS 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...

  • Page 111: Wiring Diagram

    07. WIRING DIAGRAM 01. VETRON 8340 CONTROL BOX 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 112 07. WIRING DIAGRAM 02. POWER CONNECTION BLOCK DIAGRAM 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 113 07. WIRING DIAGRAM 03. 8640 STEPPER DRIVER TERMINAL 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 114 07. WIRING DIAGRAM 04. 8340 MAIN TERMINAL MAIN DRIVE 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 115 07. WIRING DIAGRAM 05. VETRON 5XXX HEAD PCB 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 116 07. WIRING DIAGRAM 06. VETRON 5XXX HEAD ADAPTER PCB 05/2019 VETRON 5000 - FLAT BED MACHINE - SERVICE MANUAL...
  • Page 117 VETRON TYPICAL EUROPE GmbH Clara-Immerwahr-Str. 6 67661 Kaiserslautern, Germany Tel.: +49 6301 320 75-0 Fax: +49 6301 320 75-11 info@vetrontypical.com www.vetrontypical.com...
  • Page 118 VETRON TYPICAL EUROPE GmbH Clara-Immerwahr-Str. 6 67661 Kaiserslautern, Germany Tel.: +49 6301 320 75-0 Fax: +49 6301 320 75-11 E-mail: info@vetrontypical.com www.vetrontypical.com...

This manual is also suitable for:

5100
