Appendix 2 Media Specifi cations
Media, cont.

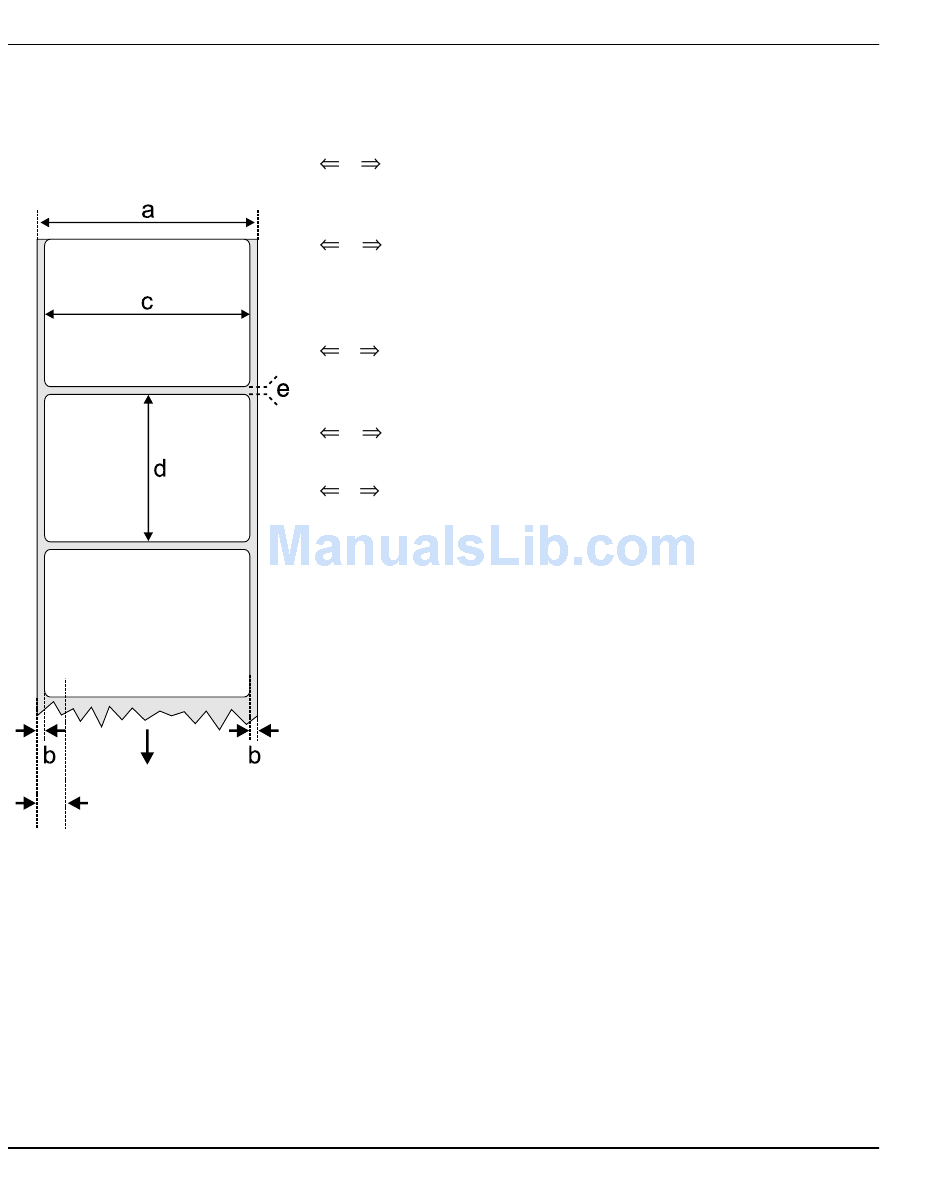

Self-Adhesive Labels

Self-Adhesive
Labels
Label Stop
Sensor
position
Feed
Direction
12 mm
(0.47 inches)
48
a Media Width (including liner):
Maximum:
Minimum
b Liner
The backing paper must not extend more than a total of 1.6 mm (0.06
inches) outside the labels and should protrude equally on both side.
Recommended min. transparency: 40% (DIN 53147.)
c Label Width (excluding liner):
Maximum:
Minimum:
d Label Length:
Minimum:
e Label Gap:
Maximum:
Recommended:
Minimum:
The Label Stop Sensor must be able to detect the extreme front
and rear edges of the label. It is positioned 12 mm (0.47 inches)
from the inner edge of the media, so do not use labels with a larger
inner corner radius.
Media Type Setup:
• Label (w gaps)
Intermec EasyCoder E4 – Installation & Operation Ed. 2
114.0 mm (4.5 inches)
25.4 mm (1.00 inches)
112.4 mm (4.44 inches)
23.8 mm (0.94 inches)
10.0 mm (0.39 inches)
10.0 mm (0.39 inches)
1.6 mm (0.06 inches)
1.2 mm (0.05 inches)
