Chapter 6 Maintenance
Replacing the Printhead, cont.
3

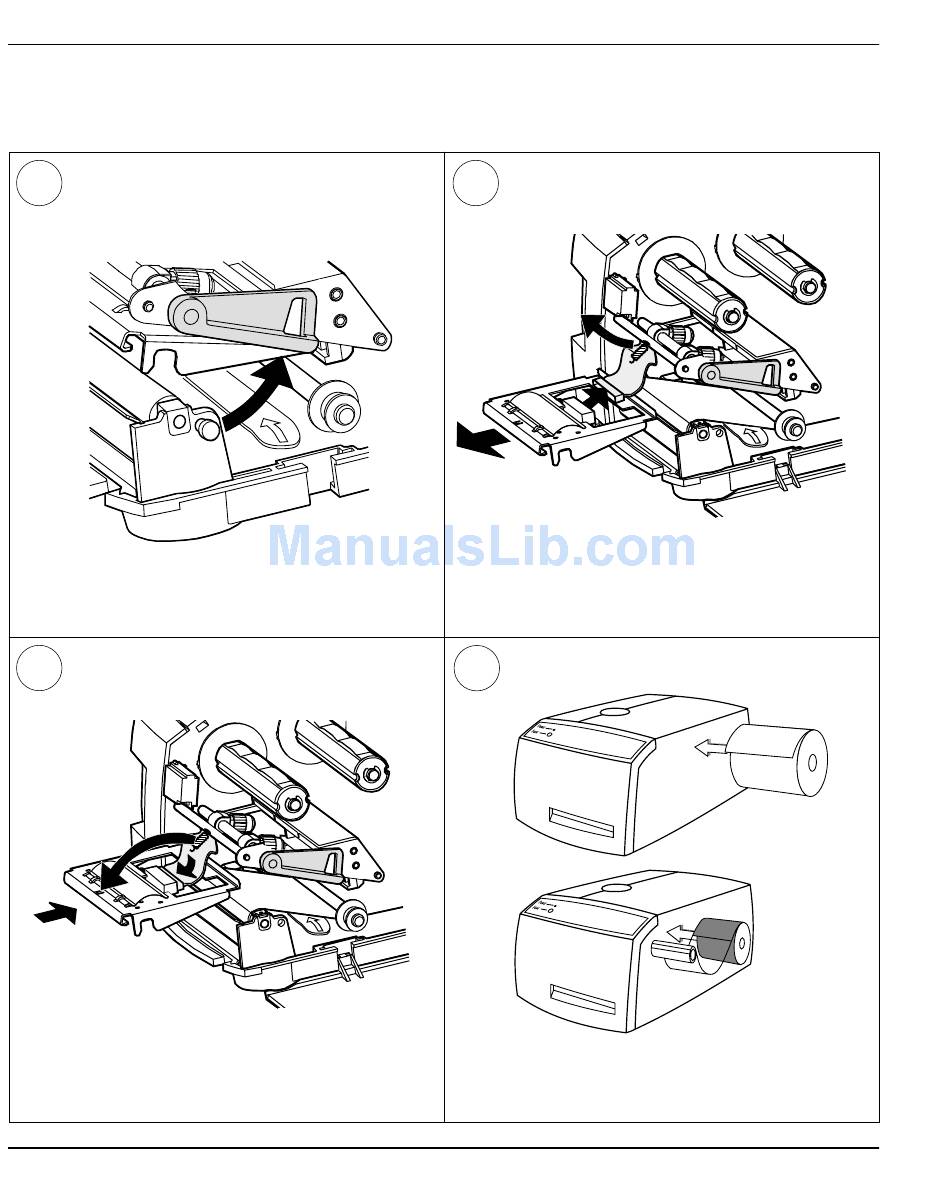

Raise the printhead.
5
3
1
Slide in the new printhead (1), connect the
printhead cable (2), and hook the spring into
position (3.)
42
2
4
1
2
Unhook the spring (1), pull the printhead for-
ward (2), and disconnect the cable (3.)
6
Reload the media and transfer ribbon.
