Chapter 3 Operation
Printing Test
Labels, cont.

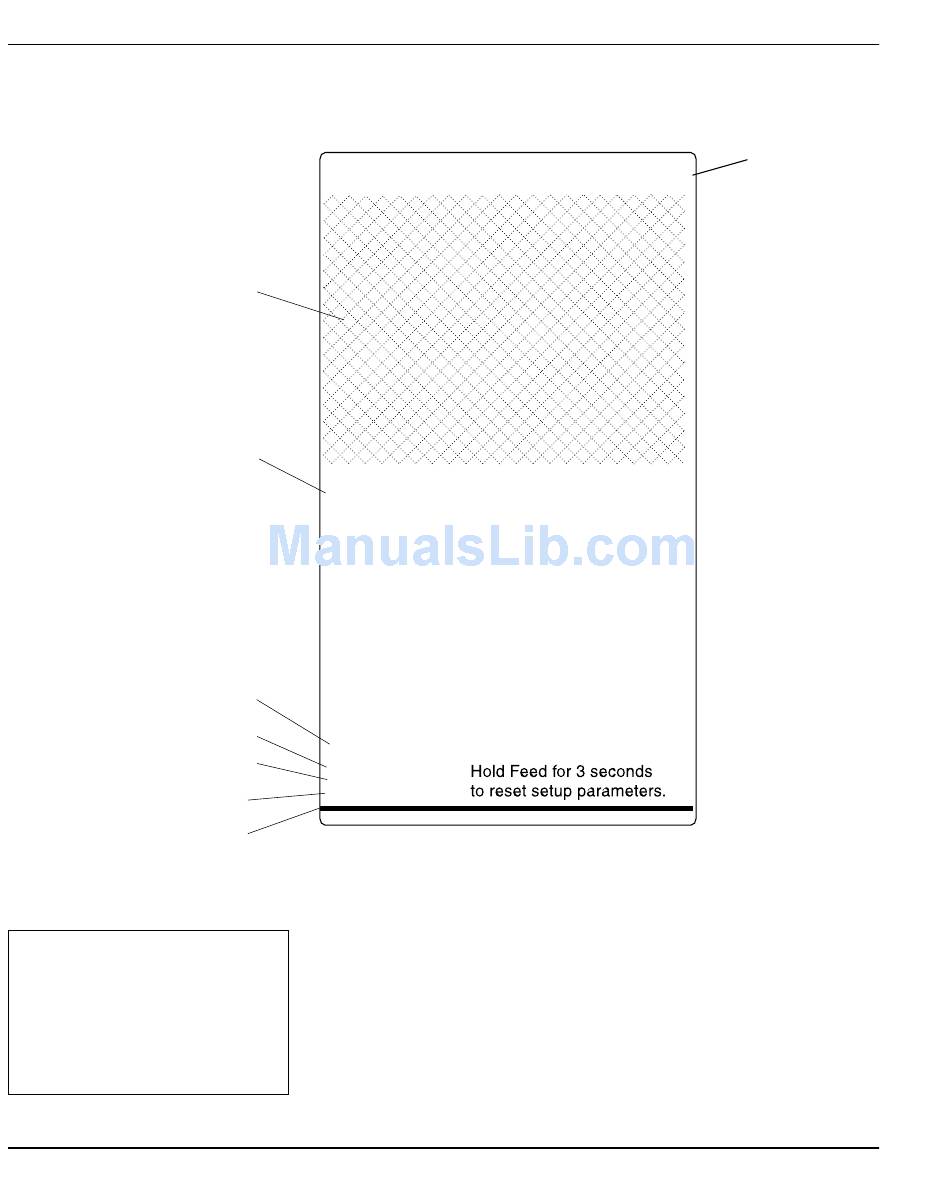

Crosshatch pattern
Setup parameters
Firmware version number
Label size (in dots)
Serial port setup
Total length of media printed
since last font upgrading
1 /. The label size given on the
test label is the size for which the
printer has been set up. Thus,
it is not necessarily the actual
size of the labels loaded into the
printer.
22
Example of a test label:
LSS ADJUST,20
STOPADJ,0
STARTADJ,0
XSTART,0
WIDTH,832
LENGTH,1200
MEDIA TYPE,LABEL (w GAPS)
HEAD RESISTANCE:651
THERMAL TRANSFER
PERFORMANCE,NORMAL
CONTRAST,5
UART1,BAUDRATE,9600
UART1,PARITY,NONE
UART1,CHAR LENGTH,8
UART1,STOPBITS,1
UART1,FLOW CONTROL,RTS/CTS,DISABLE
UART1,FLOWCONTROL,XON/XOFF,DATA FROM HOST,DISABLE
UART1,FLOWCONTROL,XON/XOFF,DATA TO HOST,DISABLE
UART1,NEW LINE,CR/LF
1
V2.01
Page: 832x1200
SERCOM:9600N81
Km of labels: 0.000
Test bar
mode:
