Appendix 2 Media Specifi cations
Paper, cont'd.

Self-Adhesive Labels

92

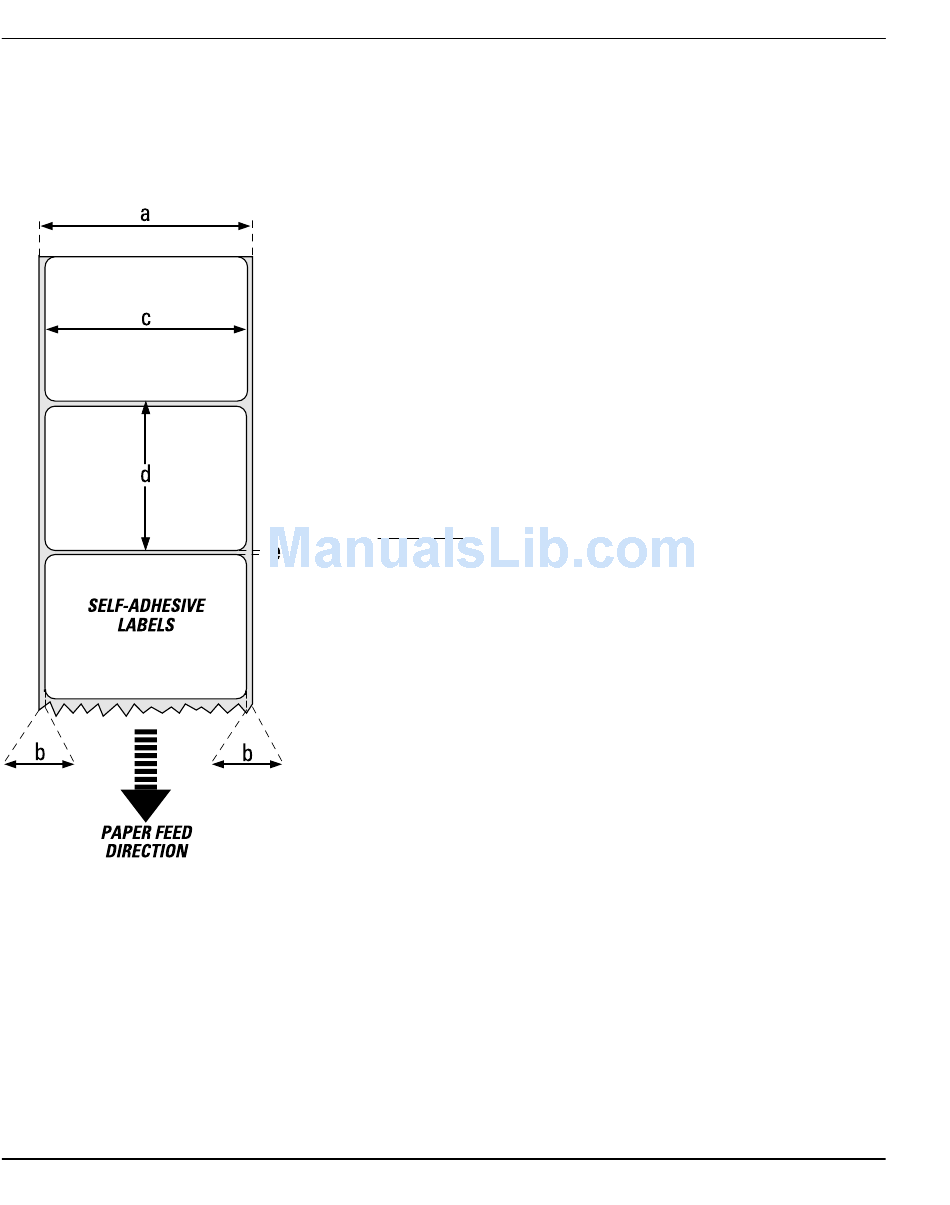

⇐ a ⇒ Web Width (including backing paper):
Maximum:
Minimum (standard):
Minimum (Quick-Load):
⇐ b ⇒ Backing Paper
The backing paper must not extend more than a total of 1.6 mm
(0.06") outside the paper and should protrude equally on both side.
Recommended min. transparency: 40% (DIN 53147).
⇐ c ⇒ Label Width (excluding backing paper):
Maximum:
Minimum:
⇐ d ⇒ Label Length:
Minimum:
Max label length:
Under favourable circumstances, a minimum label length down to
4 mm (0.16") could be used. It requires the sum of the label length
(d) and the label gap (e) to be larger than 7 mm (0.28"), that batch
printing is used, and that no pull back of the paper is performed.
Intermec does not guarantee that such short labels will work, but it
is up to the user to test this in his unique application.
⇐ e ⇒ Label Gap:
Maximum:
Recommended:
Minimum:
The Label Stop Sensor must be able to detect the extreme front
edges of the labels. It can be moved between 5 fi xed positions at the
following distances from the inner edge of the paper.
3 mm (.118")
8 mm (.315")
12 mm (.472")
16 mm (.639")
20 mm (.787")
Media Type Setup:
• Label (w gaps)
Intermec EasyCoder F2 – Installation & Operation Ed. 2
60.0 mm (2.36")
25.0 mm (1.00")
40.0 mm (1.57")
58.4 mm (2.30")
23.8 mm (0.94")
8.0 mm (0.32")
depends on DRAM size
21.3 mm (0.83")
3.0 mm (0.12")
1.2 mm (0.05")
