Appendix 4 Programming
Programming a
Label, cont.

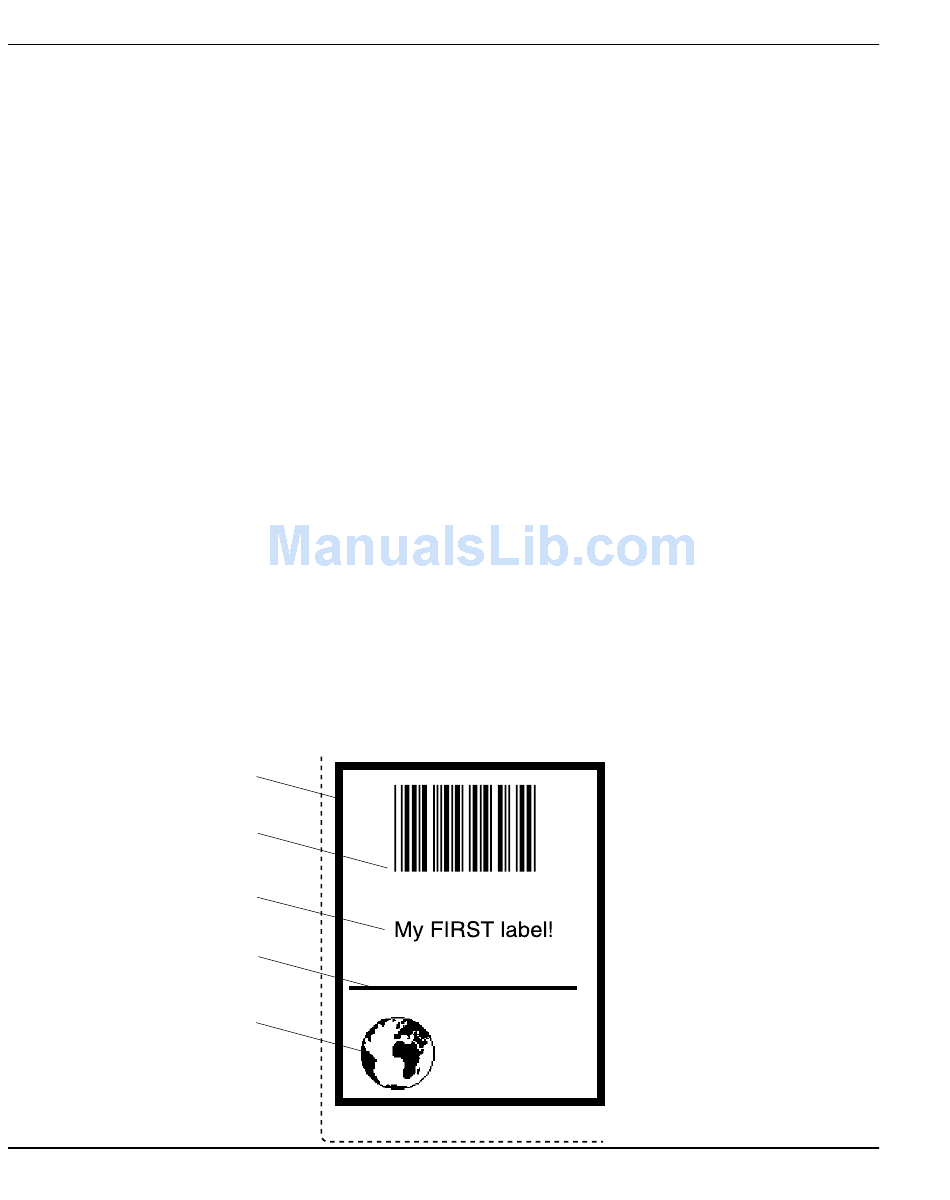

Box Field
Bar Code Field
(with interpretation)
Text Field
Line Field
Image Field
58
A label design is made up of fi elds. There are fi ve different types of
fi eld, each of which must be specifi cally formatted:
• Text Field:
A text fi eld consists of a single line of text, formatted for font,
magnifi cation, rotation, and normal or inverse image.
• Bar Code Field:
A bar code fi eld consists of a single bar code, with or without a
bar code interpretation in human readable characters, formatted
for type, height, bar ratio, magnifi cation, rotation, interpretation
On/Off, and interpretation font.
• Image Field:
An image fi eld is a picture, drawing, logotype, or other type of
illustration. Images sent to the printer should be in .PCX format,
and formatted for magnifi cation and normal or inverse image.
Images can only be rotated by 180°.
• Box Field:
A box fi eld is a square or rectangular area surrounded by a
black border line, which must be formatted for height, width,
line thickness and rotation. If the border is suffi ciently thick, the
whole area may appear black.
• Line Field:
A line fi eld is a black line that goes either along or across the media
feed direction, and is formatted for length, line thickness, and
rotation. A short, thick line can look like a black box.
There are no restrictions, other than the size of the memory, regarding
the number of fi elds on a single label.
ABC
