Tickets With Gap - Intermec EasyCoder E4 Installation And Operation Manual

Media, cont.

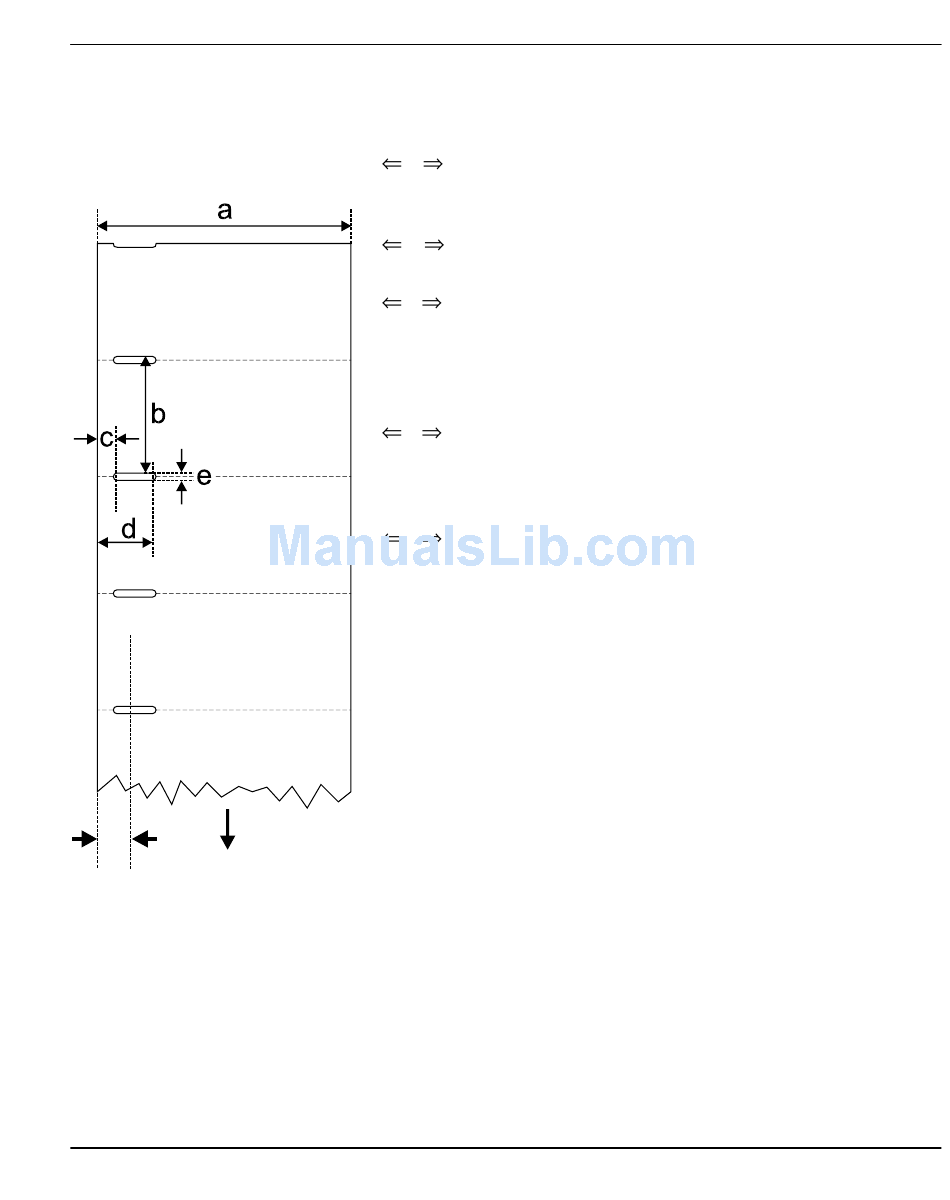

Tickets with Gap

Tickets & Tags
Label Stop
Sensor
position
Feed
12 mm
Direction
(0.47 inches)
Intermec EasyCoder E4 – Installation & Operation Ed. 2
a Media Width:
Maximum:
Minimum (standard):
b Copy Length:
Min. length between slots:
c Detection Slit Start:
The distance between the inner edge of the media and the start of
the detection gap (excl. corner radii) must be:
Minimum:
Maximum:
c Detection Slit End:
The distance between the inner edge of the media and the end of the
detection gap (excl. corner radii) must be:
Minimum:
e Detection Slit Height:
Maximum:
Recommended:
Minimum:
Media Type Setup:
• Ticket (w gaps)
Do not allow any perforation to break the edge of the media, as this
may cause the media to split and jam the printer.
Appendix 2 Media Specifi cations
114.0 mm (4.5 inches)
25.4 mm (1.00 inches)
10.0 mm (0.39 inches)
6 mm (0.24 inches)
9 mm (0.35 inches)
15 mm (0.59 inches)
10.0 mm (0.39 inches)
1.6 mm (0.06 inches)
1.2 mm (0.05 inches)
49
