UDACT-300A Main Board Terminal Connections
Wire the two telephone lines to RJ31X Connector terminals as shown in Figure 41 below. The UDACT-300A
terminals are located on the top left hand corner of the board. If using a cellular or wireless service, use the Line 2
interface connection only.
Note: Most Authorities Having Jurisdiction (AHJ) do not allow the connection of premise
telephones, see specifications for more information.

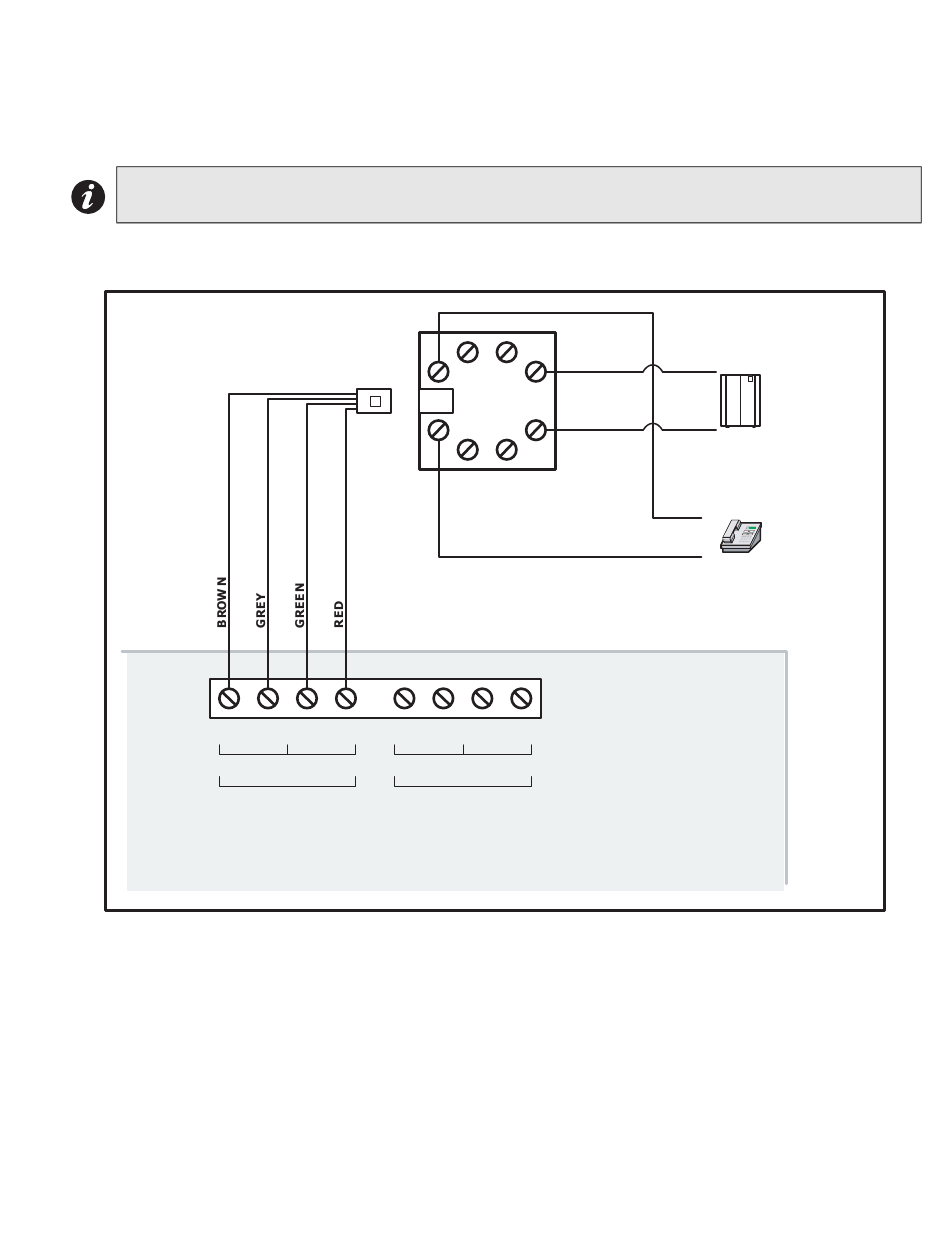

Figure 41: Telephone Line Wiring Diagram
T
Line 2 is Wired as shown for Line 1
R T R T
RES C.O. RES
LINE-1
UDACT-300A
1 4
2 3
7 6
8
5
RJ31X
R T R
C.O.
LINE-2
TM
FleX-Net Installation and Operation Manual
TIP
RING
Public switch
Telephone company
wiring
TIP
RING
premise telephone
IF permitted
