I PS- 4848DS Programmable I nput Sw itches Module
The IPS-4848DS Programmable Input Switches Module provides 48 programmable switches, 48 bi-coloured (red/
amber) LEDs for fire alarm zone annunciation and 48 amber trouble LEDs.

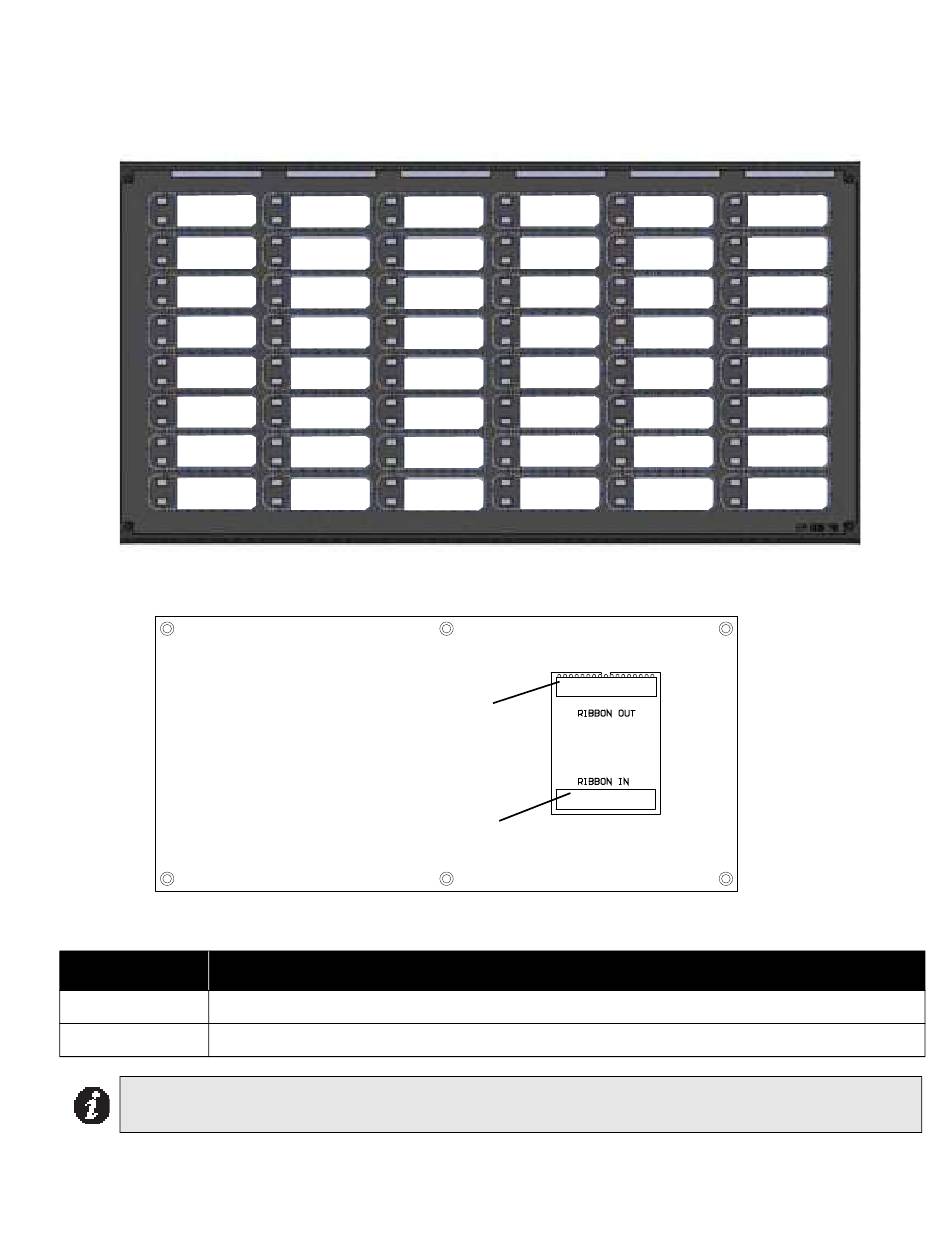

Figure 14: I PS-4848DS Programmable I nput Sw itches Module
Figure 15: I PS-4848DS Cable Connection on the back side of board
Table 4: IPS-4848DS Programmable Input Switches Module Cable Function
Connector
P1 P1 Permanently connected cable connects to P2 or P4 of previous display module.
P4 P4 Cable connects to P1 of next display module
Note: The IPS-4848DS module comes with laser printer-compatible slide-in paper labels for zone labelling.
Ribbon Cable connects
here on IPS-4848DS and
connects to the next
display module Ribbon IN
Ribbon Cable is permanently
attached here and connects to
previous Ribbon OUT connector
TM
FleX-Net
P4
P1
Function
