Appendix E: Wiring For Addressable Supervised Output Module

ALCN - 792MISO
Quad Loop Adder
+
B
LOOP A -
A
+
-
+
LOOP B B
-
A
+
-
MIX-M500MB(A) (Addr . 101-120, 122-125)

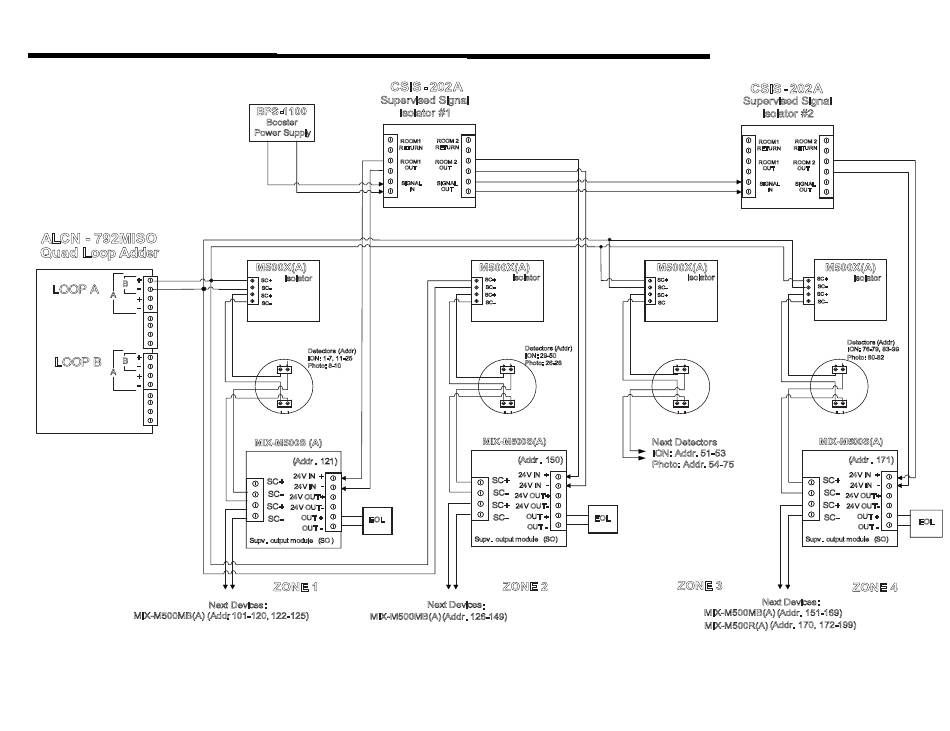

WIRING FOR ADDRESSABLE SUPERVISED OUTPUT MODULE TO COMPLY WITH UL 864 REV. 9
Supervised Signal
BPS -1100
Booster
Power Supply
M500X(A)
Isolator
SC+
SC-
SC+
SC-
Detectors (Addr)
ION: 1-7, 11-25
Photo: 8-10
MIX-M500S (A)
(Addr . 121)
24V IN +
SC+
24V IN -
SC-
24V OUT+
SC+
24V OUT-
SC- OUT +
EOL
OUT -
Supv . output module (SO )
ZONE 1
Next Devices:
MIX-M500MB(A)
CSIS - 202A
Isolator #1
ROOM 2
ROOM1
RETURN RETURN
ROOM1 ROOM 2
OUT OUT
SIGNAL SIGNAL
IN OUT
M500X(A)
Isolator
SC+
SC-
SC+
SC-
Detectors (Addr)
ION: 29-50
Photo: 26-28
MIX-M500S(A)
(Addr . 150)
24V IN +
SC+
24V IN -
SC-
24V OUT+
SC+
24V OUT-
OUT +
SC-
OUT -
Supv . output module (SO)
ZONE 2
Next Devices :
(Addr. 126-149)
CSIS - 202A
Supervised Signal
Isolator #2
ROOM1
RETURN
ROOM1
OUT
SIGNAL
IN
M500X(A)
Isolator
SC+
SC-
SC+
SC
Next Detectors
ION: Addr. 51-53
Photo: Addr. 54-75
EOL
ZONE 3
Next Devices:
MIX-M500MB(A)
MIX-M500R(A) (Addr. 170, 172-199)
ROOM 2
RETURN
ROOM 2
OUT
SIGNAL
OUT
M500X(A)
Isolator
SC+
SC-
SC+
SC-
Detectors (Addr)
ION: 76-79, 83-99
Photo: 80-82
MIX-M500S(A)
(Addr . 171)
24V IN +
SC+
24V IN -
SC-
24V OUT+
SC+
24V OUT-
OUT +
SC-
EOL
OUT -
Supv . output module (SO)
ZONE 4
(Addr. 151-169)
