DSPL-420( DS) Main Display Module
The DSPL-420(DS) mounts into backboxes BB-5008(R), BB-5014(R) and BBX-FXMNS. This display is part of the
following main fire alarm chassis: FX-2003-12NDS, FX-2003-12XTDS, FX-2009-12NDS, FX-2017-NDS, and FX-
2000MNS.

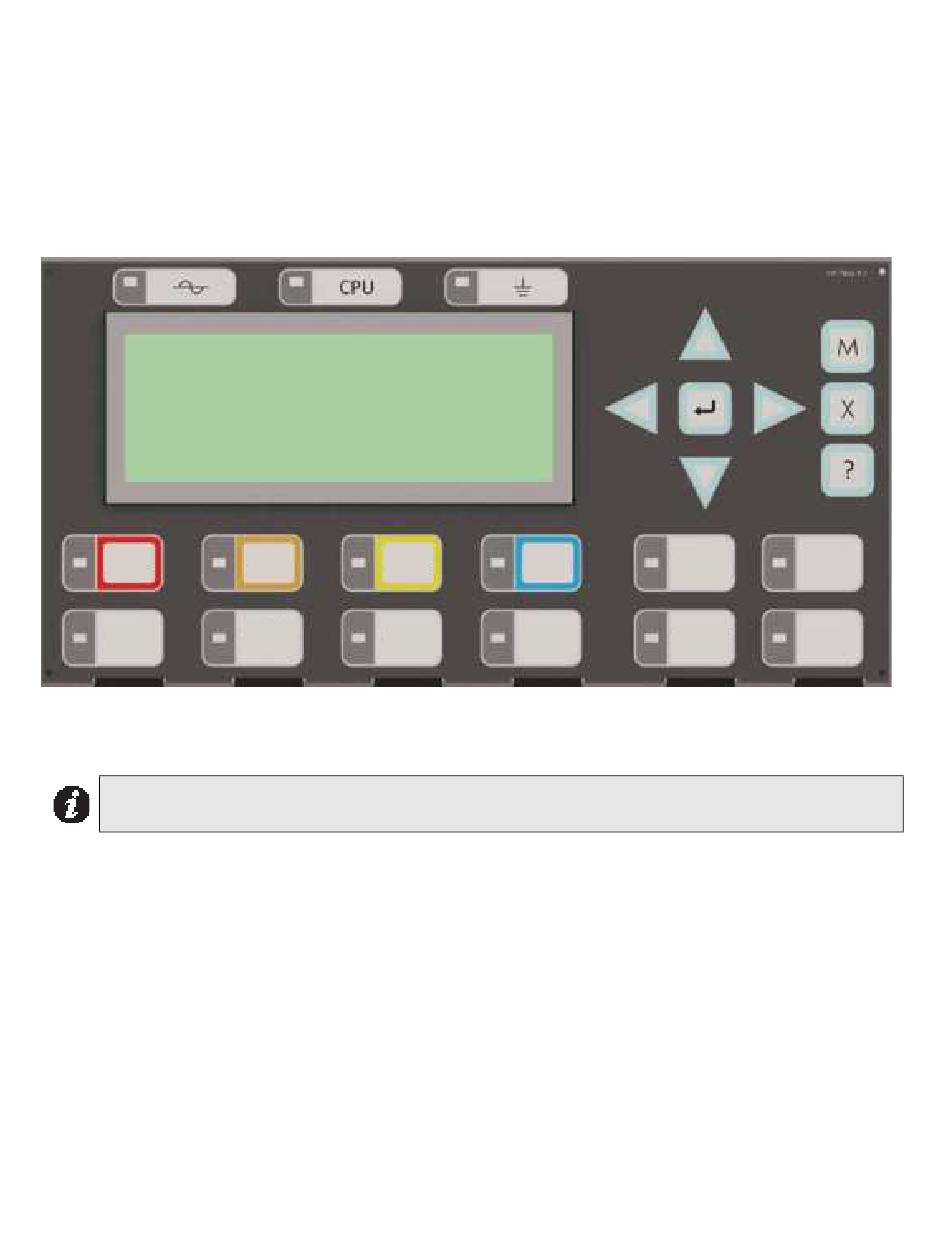

Figure 9: DSPL-420( DS) Main Display Module ( Part of Main Chassis c/ w Main Fire
Alarm Module)
ALM
QUE
SIGNAL
SILENCE
P1: Cable connects to P14 of the FX-2000N main fire alarm board (Figure 8).
P2: Connection to P1 of any adder display module if used.
Note: The main display module comes with slide-in paper labels including both English and French slide-
ins, and laser printer-compatible blanks for zone labelling.
TBL
SUP
QUEUE QUEUE
LAMP SYSTEM
TEST
RESET
TM
FleX-Net
BLDG GENERAL
QUEUE ALARM
FIRE
ACKNOW-
DRILL
LEDGE
