TM
FleX-Net
Installation and Operation Manual
QMT-5302NV Vertical Master Telephone
The QMT-5302NV Vertical Master Telephone fits into the BBX-FXMNS Enclosure. The master telephone is
mounted to the inside chassis and field wiring is on the BBX-FXMNS backbox. Connections and terminal wiring are
shown in the following instructions.

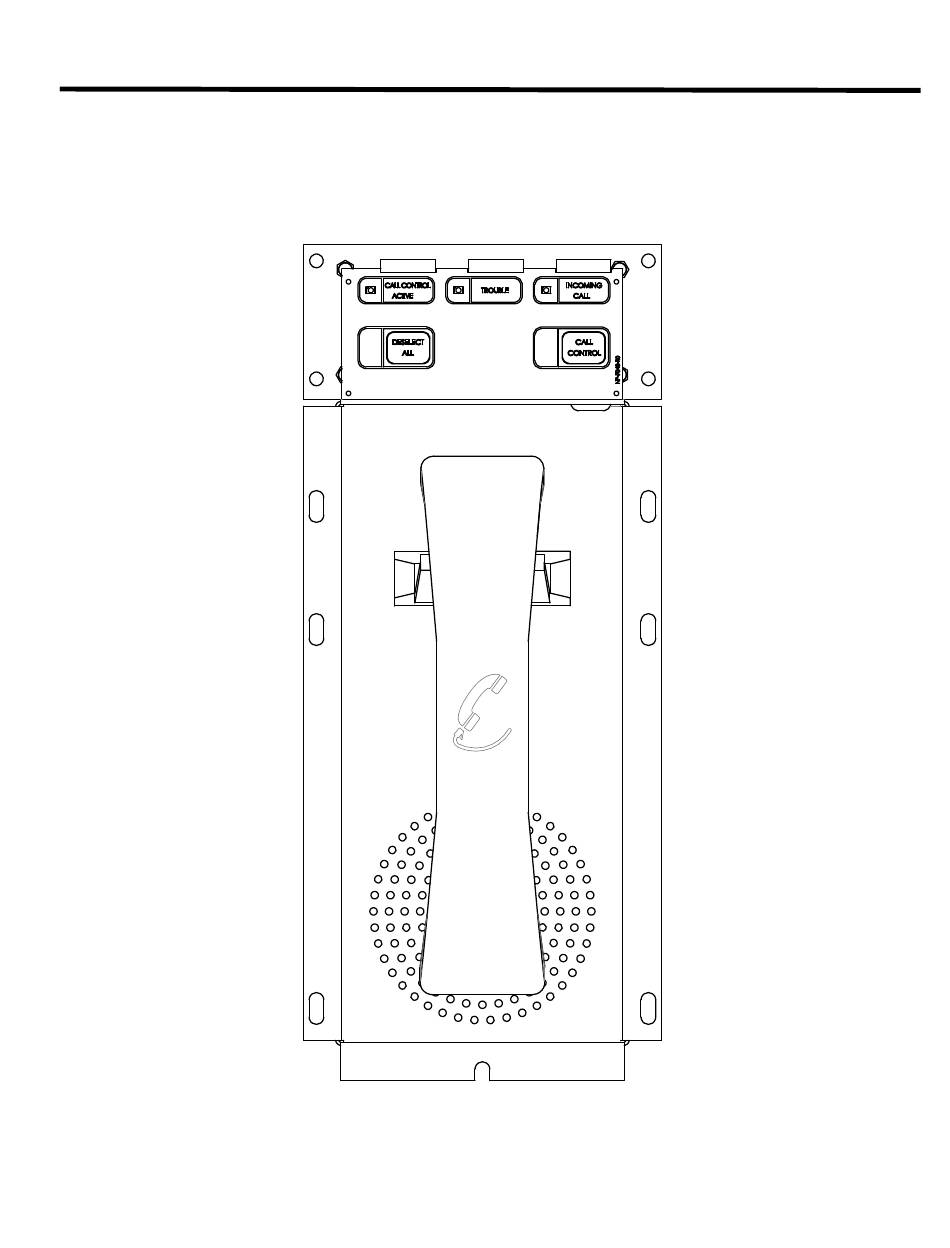

Figure 80:
QMT-5302NV Master Firefighters' Telephone
115
