Hardw ire Detection Adder Module ( DM-1008A)

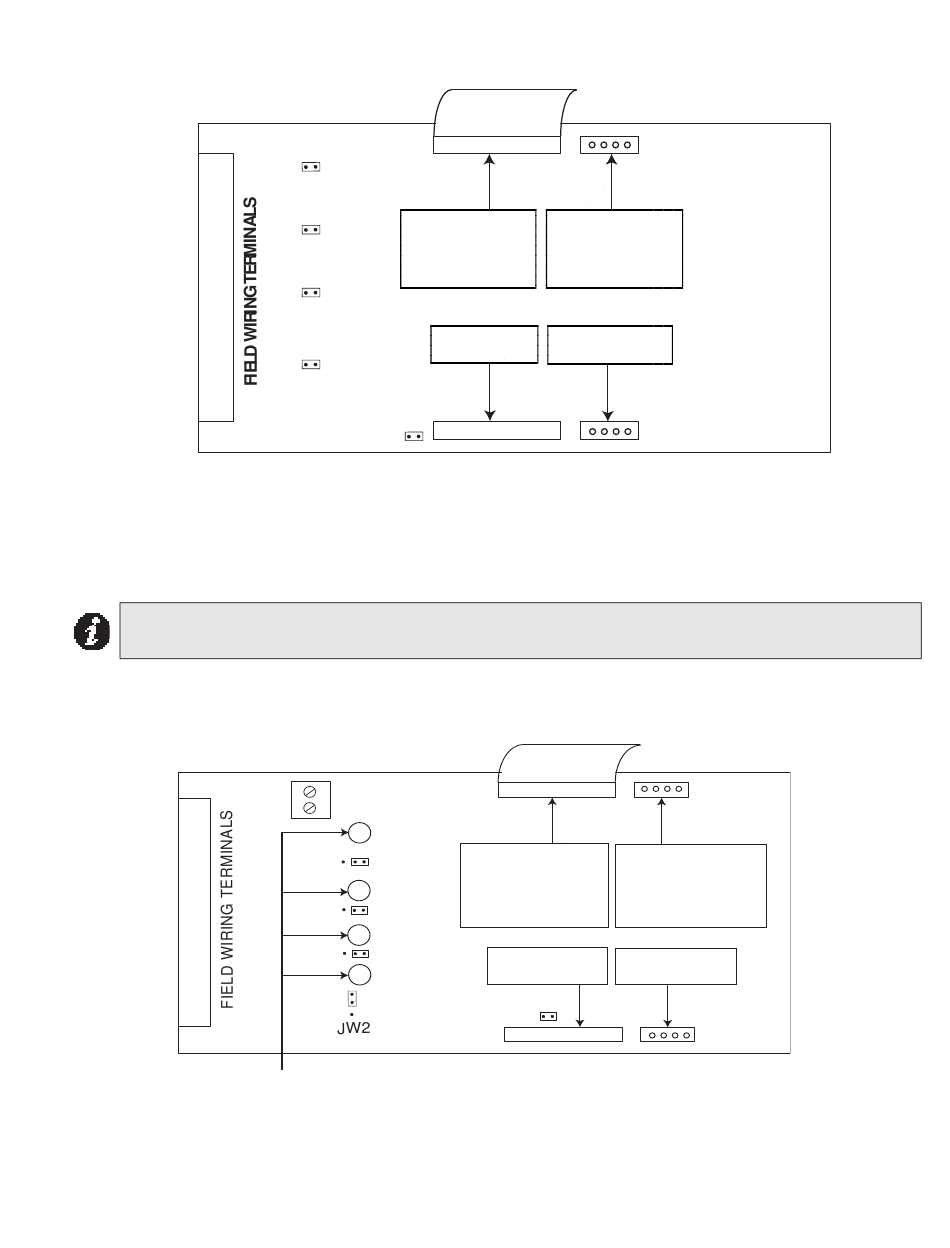

Figure 20: Hardw ire Detection Adder Module ( DM- 1008A)
JW1: Install jumper for Class A operation of initiating circuits 1 and 2.
JW2: Install jumper for Class A operation of initiating circuits 3 and 4.
JW3: Install jumper for Class A operation of initiating circuits 5 and 6.
JW4: Install jumper for Class A operation of initiating circuits 7 and 8.
JW5: Remove continuity jumper if there are any more adder modules installed
Note: For Class A operation the FX-2000N must be configured as Class A via the configuration
program.
Hardw ire Signal Adder Module ( SGM-1004A)
Figure 21: Hardw ire Signal Adder Module ( SGM-1004A)
GREEN SIGNAL LEDs
Basic Mode
Jumpers on the SGM-1004A Signal Adder Module and their functions:
JW1: Remove continuity jumper if this is not the last adder module installed.
P2
JW4
JW3 Data cable to P6 or P5 of
main fire alarm module or to
P13 or P12 of hardwire
loop controller module, or
previous adder module
JW2
Data connector for
next adder module
JW1
P1
JW5
2
J11
1
ZONE 4
1 2 3
JW5
ZONE 3
JW4
ZONE 2
JW3
ZONE 1
P4
Power connector to P8 of
main fire alarm module,
or to P2 of hardwire loop
controller module, or to
previous adder module
Power connector for
next adder module
.
P2
Data cable to P6 or P5 of Power connector to P8 of
main fire alarm module, or
main fire alarm module
to P2 of loop controller
or to P13 or P12 of loop
module, or to previous
controller module, previ-
adder module
ous adder module
Data connector for
Power connector for
next adder module next adder module
JW1
P1
TM
