QMT-5302NV Connections

The connections required on the QMT-5302NV Network Master Firefighters' Telephone Control Module are the cable
from the previous display module to P1 or IN connector and the OUT connection goes to the IN connector of the next
selector panel or display board.
The master telephone positive and negative terminals connect to the TNC-5000 Zone 1 positive and negative
terminals with twisted shielded pair wires. Refer to Figure 81 below for connector and terminal block locations of the
QMT-5302NV.

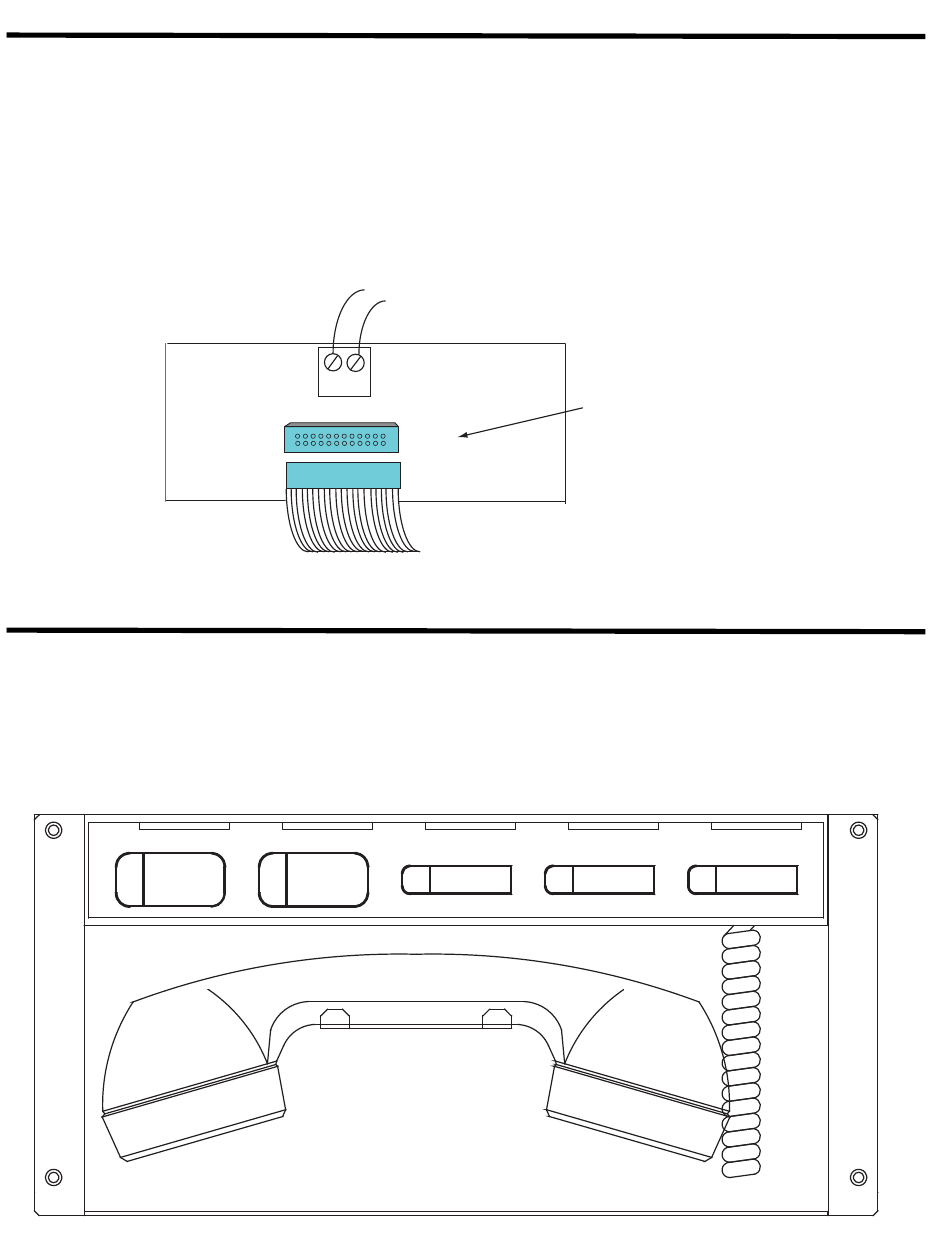

Figure 81: QMT-5302NV Cable Connection and Terminal Wiring

QMT-5302N Master Firefighters' Telephone

The QMT-5302N mounts into the BB-5008 and BB-5014. QMT-5302N Network Master Firefighters' Telephone Control
Module is used in conjunction with the FleX-Net™ Fire Alarm system at the CACF Node. Slide-in labels (NP-6657) are
supplied with the Master Telephone. Place labels as shown in 82. The QAZT-5348DS or QAZT-5302DS Telephone
Selector panels are used for selecting telephone zones (up to 48 or 24 zones per selector panel) and include blank
labels for labelling the telephone zones.
Figure 82: QMT-5302N Master Firefighters' Telephone
DESELECT ALL
116
To TNC-5000 Telephone Zone 1
positive and negative terminals
(twisted pair wire)
-
+
OUT
P2
P1 IN
Connection from previous display
CALL CONTROL
CALL CONTROL
Connection to
Telephone
Selector Panel P1
or next display
TROUBLE
ACTIVE
INCOMING CALL
