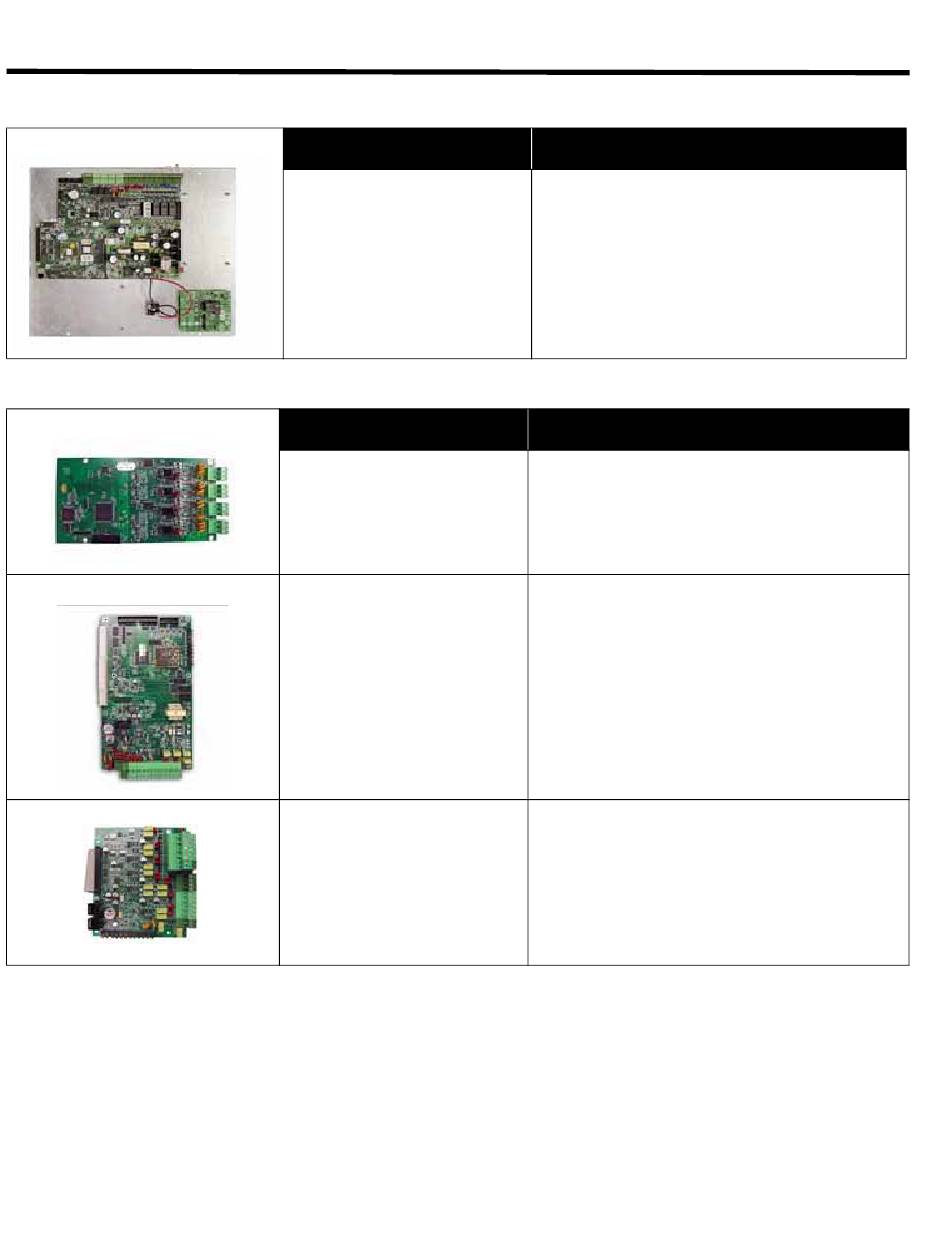

System Components for the I ntegrated Fire/ Audio Cabinet
Netw ork Fire Alarm
Netw ork Controller Modules
74
Model
FX-2000MNS
Model
Provides network capability for the FleX-Net™
Fire Alarm panel. One module is required per
FNC-2000 one network node panel. The FNC-2000 Fire
Network Controller module is mounted in
position 2 over the FX-2000MNS main board.
Audio Network Controller module. The ANC-
5000 Audio Network Controller module is
mounted on a metal plate (which is packaged
ANC-5000
with the FX-2000MNS) and then the plate is
mounted into BBX-FXMNS backbox in position
1 of the QMB-5000N Card Cage.
Telephone Network Controller module. The
TNC-5000 Telephone Network Controller
module is mounted below the ANC-5000 Audio
TNC-5000 Network Controller module and both are
mounted on a metal plate and then the plate is
mounted into the BBX-FXMNS backbox in
position 1 of the QMB-5000N Card Cage.
Description
Main network fire alarm board includes one SLC
and four Class A/B NACs. The main board is
mounted on a backplate which can hold up to 9
internal adder modules. This backplate mounts in
the BBX-FXMNS enclosure.
