Module Settings
UDACT-300A MAI N BOARD:
There are two jumpers on the UDACT-300A which are used for operation/configuration purposes. Jumper JW1 is
used to reset the default passcode. Jumper JW2 is required for configuring (which can be done using the FX-2000N
Configurator Software) the UDACT-300A. Refer to Figure 24 below for location of jumpers, cable connections,
pushbutton and LEDs. Table 7 following, provides a description of the user items on the UDACT-300A.

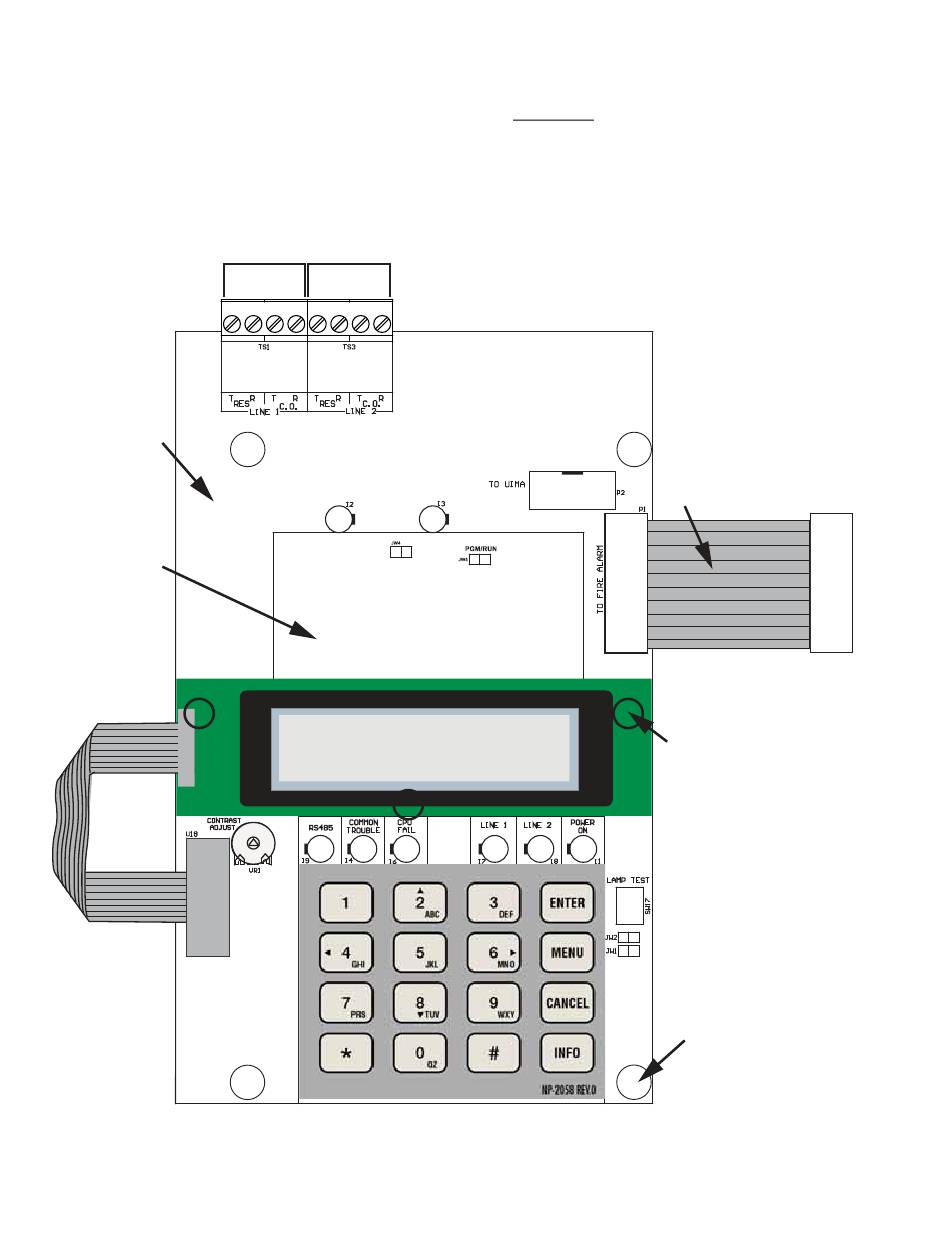

Figure 24: UDACT-300A Board Layout
TELEPHONE LINE CONNECTIONS
MAIN BOARD
CORE BOARD
U18
38
LINE 1 LINE 2
RES C.O. RES C.O.
T R T R T R T R
RELAY LINE 2
RELAY LINE 1
JW4
(leave closed)
UDACT (Prot-1) Idle
20:00 MON
UR1
P2
TO UIMA
JW5
P1
(leave open)
2021-01-25
CONNECT RIBBON CABLE
FROM P1 TO FIRE ALARM
CONTROL PANEL
CFC-300 CONFIGURATION
TOOL
MOUNT ON 3 STANDOFFS
LAMP TEST
JW2
JW1
MOUNTING HOLES
(FOUR)
