BBX-1024XT( R) Mechanical I nstallation
The model FX-2003-12NXTDS is an expanded version of the FX-2003-12NDS chassis. The FX-2003-
12NXTDS mounts into the BBX-1024XT (white enclosure) and the BBX-1024XTR (red enclosure)
Dimensions
Cold Rolled Steel
Cold Rolled Steel
Finish

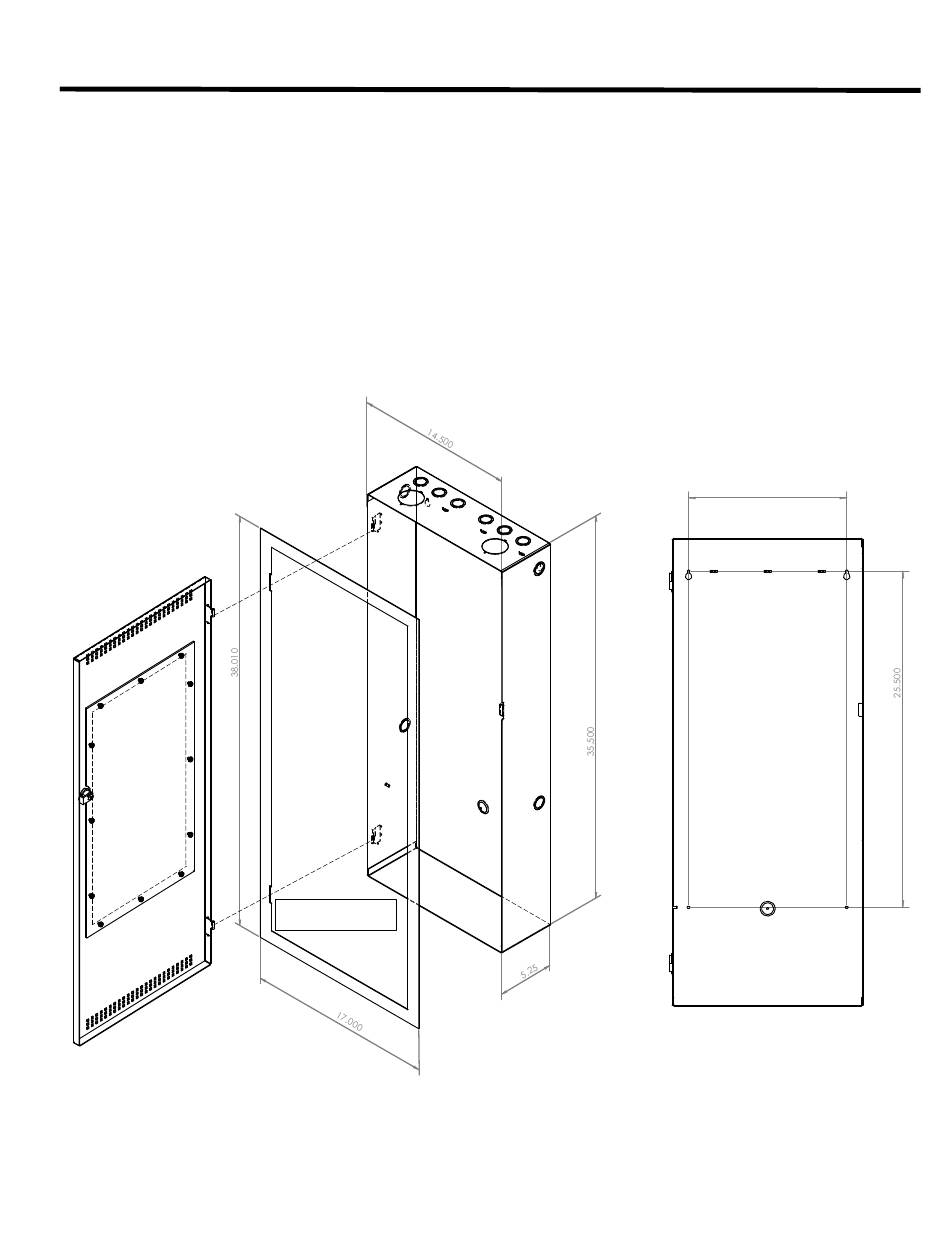

Figure 4: BBX-1024XT( R) Enclosure w ith Trim Ring
Front Door
(Inside View)
14.76" wide by 35.8" long by 5.45"
16GA (0.059") thick for backbox
14GA (0.075") thick for door
Painted except for hinges
Adhere trim ring to wall
surface around backbox.
FA-XT-TRB
Trim Ring for
Flush Mounting
FleX-Net
Backbox
TM
Installation and Operation Manual
12.000
Mounting Holes
Backbox
17
