Appendix H: APB-200/ COA Sounder Bases
The FleX-Net™ Network Fire Alarm system can accommodate up to 32 APB-200/COA sounder bases per panel
(node). The sounder base audio is synchronized on the same loop basis.

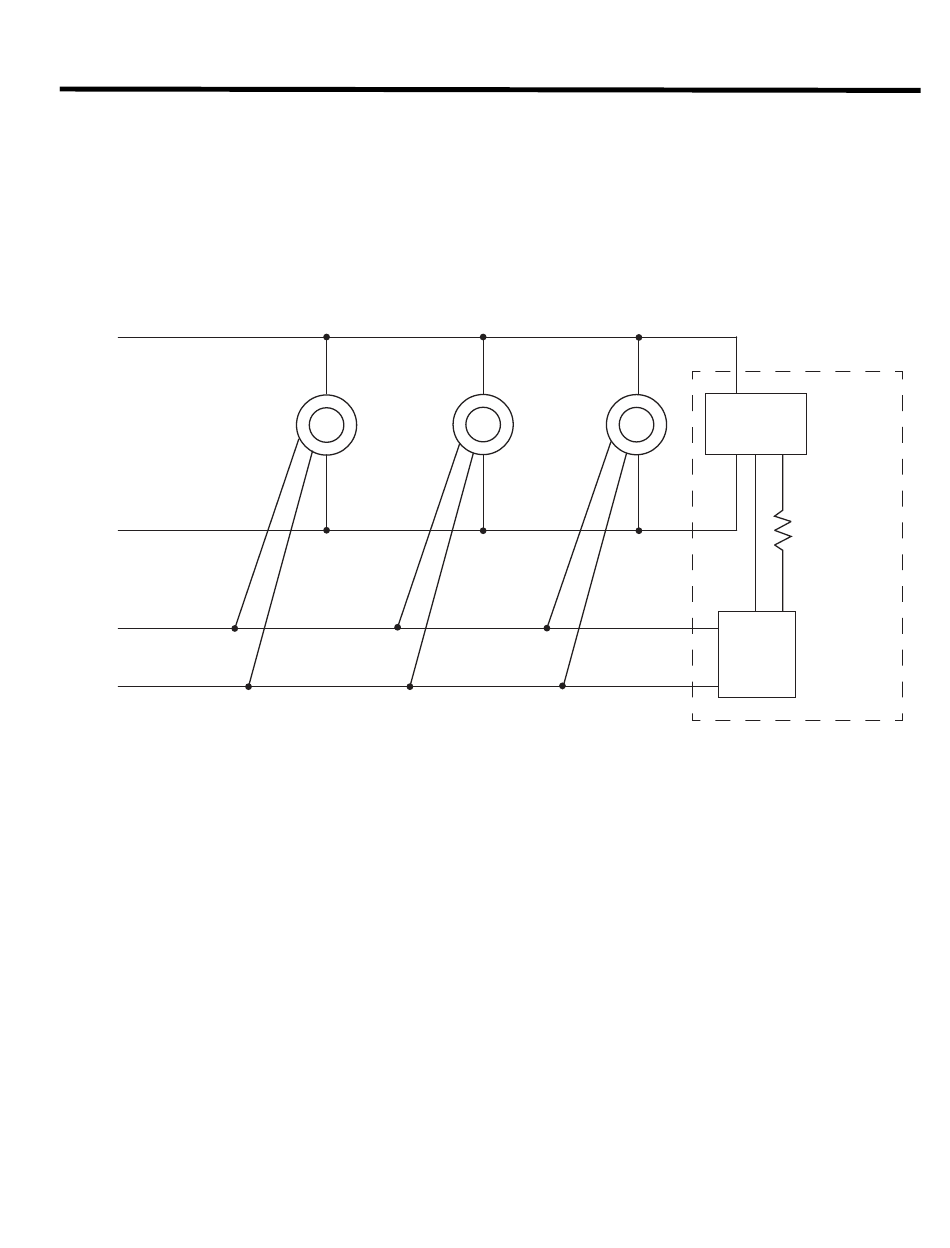

Below is a wiring diagram for connecting the sounder bases to auxiliary power with supervision.
Figure 89: Sounder Base Wiring to Auxiliary Pow er Supply w ith Supervision (Class B)
+
COSAP/A Fire CO
Detector
& APB200/COA
Loop 1
Sounder Base
SLC
-
+
24V AUX
POWER
-
The monitor module (shown in the diagram above) should be set up in the configurator to report as a trouble input
with the message tag "Sounder Base Fault".
COSAP/A Fire CO
COSAP/A Fire CO
Detector
Detector
& APB200/COA
& APB200/COA
Sounder Base
Sounder Base
TM
FleX-Net Installation and Operation Manual
MIX-M500MAP/A
MONITOR
MODULE
47K ohms
EOL Resistor
EOLR-1A
END OF LINE
RELAY
FOR SUPERVISION
OF 24V AUX POWER
